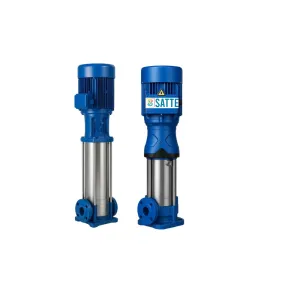

SAR 1

The add to cart button will appear once you select the values above

Typical Applications

Municipal water distribution –The pump can be used to supply water in urban and rural areas through municipal water supply systems.
High-rise buildings – Suitable for providing pressurized water across different floors.
Agricultural irrigation – The pump can be employed in farming and agriculture to deliver water to crops ,ensuring proper hydration for optimal growth.
Industrial processes –Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
Commercial facilities – Used in settings like hotels, resorts, and commercial buildings to liquid transfer for different purposes.

Operating Conditions

Inlet: SAR 25–100 mm
Outlet: SAR 25–100 mm
Flow Capacity: 0.6–110 m³/h
Head Pressure: 6–300 m
Power Range: 0.37–45 kW

Technical Data

Model	Motor P2 (kW)	Motor P2 (HP)	Supply / Voltage Range	Full Load In (A)	Start DOL Ist (A)	Soft Start Iss (A)	Motor Eff. (%)	Rated Flow Q (m³/h)	Head at Rated Q (m)	Max. Head (m)	Max. Flow (m³/h)	Speed (rpm)	Max. Pressure (bar)	DN	B1 (mm)	B2 (mm)	B1+B2 (mm)	D1 (mm)	D2 (mm)	Weight (kg)
SAR 1-2	0.37	0.5	1~ 220-240 V	2.7	12	8.2	62	1	11.5	13	2	2900	1.3	DN25	258	225	483	148	117	20
SAR 1-3	0.37	0.5	1~ 220-240 V	2.7	12	8.2	62	1	17	19	2	2900	1.9	DN25	276	225	501	148	117	20
SAR 1-4	0.37	0.5	1~ 220-240 V	2.7	12	8.2	62	1	22.5	24	2	2900	2.4	DN25	294	225	519	148	117	21
SAR 1-5	0.37	0.5	1~ 220-240 V	2.7	12	8.2	62	1	28	30	2	2900	2.9	DN25	312	225	537	148	117	21
SAR 1-6	0.37	0.5	1~ 220-240 V	2.7	12	8.2	62	1	33.5	36	2	2900	3.5	DN25	330	225	555	148	117	22
SAR 1-7	0.37	0.5	1~ 220-240 V	2.7	12	8.2	62	1	39	42	2	2900	4.1	DN25	348	225	573	148	117	23
SAR 1-8	0.55	0.75	1~ 220-240 V	3.9	17	12	65	1	45	48	2	2900	4.7	DN25	366	225	591	148	117	24
SAR 1-9	0.55	0.75	1~ 220-240 V	3.9	17	12	65	1	51	54	2	2900	5.3	DN25	384	225	609	148	117	25
SAR 1-10	0.55	0.75	1~ 220-240 V	3.9	17	12	65	1	57	60	2	2900	5.9	DN25	402	225	627	148	117	26
SAR 1-11	0.55	0.75	1~ 220-240 V	3.9	17	12	65	1	61	66	2	2900	6.5	DN25	420	225	645	148	117	26
SAR 1-12	0.75	1	1~ 220-240 V	5	23	15	68	1	67	72	2	2900	7.1	DN25	448	245	693	170	142	29
SAR 1-13	0.75	1	1~ 220-240 V	5	23	15	68	1	73	78	2	2900	7.6	DN25	466	245	711	170	142	30
SAR 1-15	0.75	1	1~ 220-240 V	5	23	15	68	1	84	89	2	2900	8.7	DN25	502	245	747	170	142	31
SAR 1-17	1.1	1.5	1~ 220-240 V	7.2	32	22	70	1	95	101	2	2900	9.9	DN25	538	245	783	170	142	33
SAR 1-19	1.1	1.5	1~ 220-240 V	7.2	32	22	70	1	106	113	2	2900	11.1	DN25	574	245	819	170	142	34
SAR 1-21	1.1	1.5	1~ 220-240 V	7.2	32	22	70	1	117	124	2	2900	12.2	DN25	610	245	855	170	142	35
SAR 1-23	1.1	1.5	1~ 220-240 V	7.2	32	22	70	1	128	137	2	2900	13.4	DN25	646	245	891	170	142	36
SAR 1-25	1.5	2	1~ 220-240 V	9.5	43	29	72	1	139	149	2	2900	14.6	DN25	692	290	982	190	155	42
SAR 1-27	1.5	2	1~ 220-240 V	9.5	43	29	72	1	150	161	2	2900	15.8	DN25	728	290	1018	190	155	43
SAR 1-30	1.5	2	1~ 220-240 V	9.5	43	29	72	1	166	178	2	2900	17.5	DN25	782	290	1072	190	155	45
SAR 1-33	2.2	3	1~ 220-240 V	14	61	41	74	1	183	196	2	2900	19.2	DN25	836	290	1126	190	155	49
SAR 1-36	2.2	3	1~ 220-240 V	14	61	41	74	1	200	214	2	2900	21	DN25	890	290	1180	190	155	51
