SAR 20

SAR 20

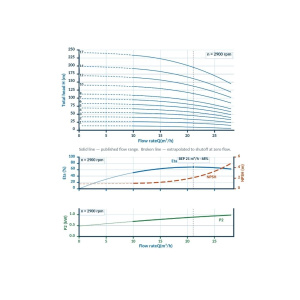

SAR 20SAR 20 Datasheet


The add to cart button will appear once you select the values above

Application

  •  Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems.
  •  High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  •  Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  •  Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  •  Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.
  •  Pressure boosting - The pump can enhance water pressure in sys1t0e1ms where higher pressures are required, ensuring consistent waterflow.
  •  Corrosive environments - The pump's construction with AISI 316 stainless steel makes it suitable for pumping highly mineralized and corrosive water, making it applicable in environments with challenging water quality.
  • High-temperature liquids - With a liquid temperature range of -15°C to +120°C, the pump is suitable for applications involving liquids at elevated temperatures.
  • Commercial and Industrial Installations

Operating Conditions

  • Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C
  • Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
  • Maximum Operating Pressure: Up to 11kW - 16bar, other - 25bar
  • Maximum Inlet Pressure: DIN20-3 -8bar, DIN 20-5 to 17 - 10bar

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 20-1 1.1 1.5 1~ 220-240 V 7.2 32 22 70 20 10 13.5 28 2900 1.3 DN50 387 245 632 170 142 33
SAR 20-2 2.2 3 1~ 220-240 V 14 61 41 74 20 23 27 28 2900 2.6 DN50 397 290 687 190 155 42
SAR 20-3 4 5.5 3~ 380-415 V 7.7 50 23 86.8 20 35 40 28 2900 3.9 DN50 452 355 807 230 188 58
SAR 20-4 5.5 7.5 3~ 380-415 V 11 68 32 87.8 20 47 54 28 2900 5.3 DN50 517 390 907 260 208 74
SAR 20-5 5.5 7.5 3~ 380-415 V 11 68 32 87.8 20 58 67 28 2900 6.6 DN50 562 390 952 260 208 76
SAR 20-6 7.5 10 3~ 380-415 V 14 91 42 88.5 20 70 81 28 2900 7.9 DN50 607 390 997 260 208 82
SAR 20-7 7.5 10 3~ 380-415 V 14 91 42 88.5 20 82 95 28 2900 9.3 DN50 652 390 1042 260 208 84
SAR 20-8 11 15 3~ 380-415 V 20 142 61 89.7 20 94 109 28 2900 10.7 DN50 785 500 1285 330 255 153
SAR 20-10 11 15 3~ 380-415 V 20 142 61 89.7 20 118 136 28 2900 13.3 DN50 875 500 1375 330 255 157
SAR 20-12 15 20 3~ 380-415 V 27 190 82 90.5 20 142 164 28 2900 16.1 DN50 965 500 1465 330 255 170
SAR 20-14 15 20 3~ 380-415 V 27 190 82 90.5 20 166 192 28 2900 18.8 DN50 1055 500 1555 330 255 172
SAR 20-17 18.5 25 3~ 380-415 V 33 233 100 91 20 202 234 28 2900 22.9 DN50 1190 550 1740 330 255 195
