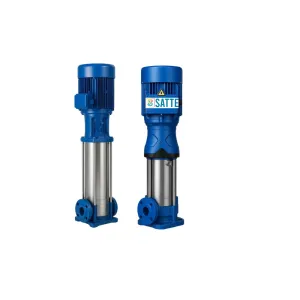

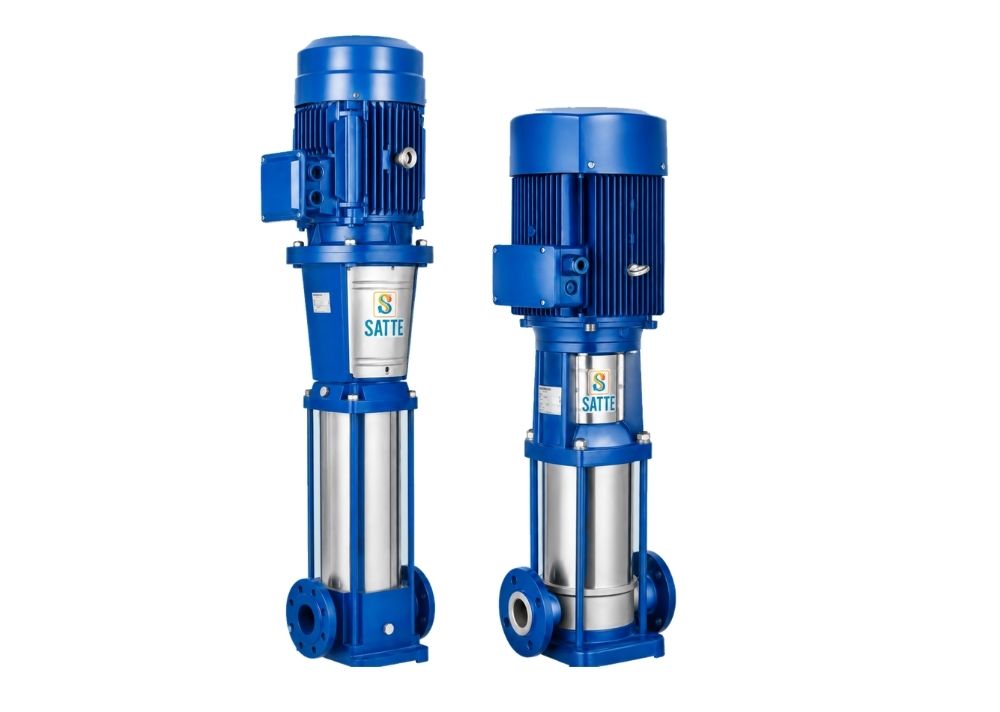

SARM 150

The add to cart button will appear once you select the values above

Typical Applications

Versatile Usage- Suitable for a wide range of applications, from potable water pumping to industrial liquid handling.
Temperature and Pressure Adaptability- Can handle liquids of varying temperatures and pressure ranges.
Material Composition- Components like impeller, casing, etc., are made of stainless steel, ensuring durability and resistance to
corrosion.
Energy Efficiency- Designed for high efficiency, leading to energy savings and environmental friendliness.
Compact and Aesthetic Design- Compact design with a visually appealing appearance.
Easy Installation and Maintenance- Simple pump structure allows for easy installation and convenient maintenance.
Intelligent Protector- Equipped with an intelligent protector to prevent dry-running, out-of-phase, and overload situations,
enhancing reliability.
Motor Quality- Utilizes 100% copper coil for motor, ensuring longevity and reliability.

Operating Conditions

Suction and Discharge Sizes- 25-150 mm (1"-6") for both suction and discharge.
Flow Capacity Range- 0.5-240m³/h, allowing for handling different flow rates.
Head/Pressure Range- 4-305m, suitable for applications requiring varying pressure levels.
Power Range- 0.37-110kW, providing options for different power requirements.

Technical Data

Model	Motor P2		Supply / voltage range	Current at 50 Hz (A)			Motor eff. (%)	Rated flow Q (m³/h)	Head at rated Q (m)	Max. head (m)	Max. flow (m³/h)	Speed (rpm)	Max. press. (bar)	DN	Dimensions (mm)					Weight (kg)
Model	kW	HP	Supply / voltage range	Full load In	Start DOL Ist	Soft start Iss	Motor eff. (%)	Rated flow Q (m³/h)	Head at rated Q (m)	Max. head (m)	Max. flow (m³/h)	Speed (rpm)	Max. press. (bar)	DN	B1	B2	B1+B2	D1	D2	Weight (kg)
SAR 150-1-1	11	15	3~ 380-415 V	20	142	61	89.7	150	12.5	18.3	180	2950	1.8	DN125	840	500	1340	330	255	230
SAR 150-1	15	20	3~ 380-415 V	27	190	82	90.5	150	18.5	24	180	2950	2.4	DN125	840	500	1340	330	255	235
SAR 150-2-2	18.5	25	3~ 380-415 V	33	233	100	91	150	27.5	37	180	2950	3.6	DN125	1000	550	1550	330	255	250
SAR 150-2-1	22	30	3~ 380-415 V	40	277	119	91.3	150	35	44.3	180	2950	4.3	DN125	1000	575	1575	360	285	295
SAR 150-2	30	40	3~ 380-415 V	53	374	160	92	150	40	50	180	2950	4.9	DN125	1000	650	1650	400	310	350
SAR 150-3-2	30	40	3~ 380-415 V	53	374	160	92	150	49	63.5	180	2950	6.2	DN125	1160	650	1810	400	310	360
SAR 150-3-1	37	50	3~ 380-415 V	66	460	197	92.4	150	56	70	180	2950	6.9	DN125	1160	650	1810	400	310	360
SAR 150-3	37	50	3~ 380-415 V	66	460	197	92.4	150	63	78	180	2950	7.6	DN125	1160	650	1810	400	310	385
SAR 150-4-2	45	60	3~ 380-415 V	80	557	239	92.8	150	70.5	89	180	2950	8.7	DN125	1320	685	2005	460	340	460
SAR 150-4-1	45	60	3~ 380-415 V	80	557	239	92.8	150	77	96.5	180	2950	9.5	DN125	1320	685	2005	460	340	460
SAR 150-4	55	75	3~ 380-415 V	96	671	287	93.1	150	84	104	180	2950	10.2	DN125	1350	760	2110	540	370	560
SAR 150-5-2	55	75	3~ 380-415 V	96	671	287	93.1	150	92	115.5	180	2950	11.3	DN125	1510	760	2270	540	370	570
SAR 150-5-1	75	100	3~ 380-415 V	130	909	389	93.7	150	99	122.5	180	2950	12	DN125	1510	845	2355	580	410	690
SAR 150-5	75	100	3~ 380-415 V	130	909	389	93.7	150	106.5	130	180	2950	12.7	DN125	1510	845	2355	580	410	690
SAR 150-6-2	75	100	3~ 380-415 V	130	909	389	93.7	150	112	140	180	2950	13.7	DN125	1670	845	2515	580	410	700
SAR 150-6-1	75	100	3~ 380-415 V	130	909	389	93.7	150	120.5	148.5	180	2950	14.6	DN125	1670	845	2515	580	410	700
SAR 150-6	75	100	3~ 380-415 V	130	909	389	93.7	150	130	157	180	2950	15.4	DN125	1670	845	2515	580	410	700

Product Videos

Datasheet/Downloads SAR 150 Datasheet
