Typical Applications

  • Water supply: raw-water transfer, filtration and boosting duties in waterworks, district distribution, high-rise pressure boosting and packaged booster sets.
  • Industrial pressure boosting: process water systems, washing and cleaning plant and high-pressure flushing systems.
  • Industrial liquid transfer: cooling and air-conditioning circuits, boiler feed and condensate systems, machine-tool coolant supply, and mild acids and alkalis.
  • Water treatment: ultra-filtration, reverse osmosis, distillation, separators and swimming-pool circulation.
  • Irrigation: field and farm irrigation, sprinkler systems and drip irrigation.

Operating Conditions

  • Thin, clean, non-flammable and non-explosive liquids, free of solid particles or fibres.
  • Liquid temperature: standard version −15 °C to +70 °C; hot-water version +70 °C to +120 °C.
  • Maximum ambient temperature +40 °C; maximum installation altitude 1000 m.
  • Maximum pressure generated ranges from 1.3 bar on SAR 5-2 to 23.6 bar on SAR 5-36, model by model — see Technical Data. Suction and discharge flanges to PN25 / DN32.
  • Suction and discharge ports are in line and of equal bore, allowing the pump to be installed directly in a straight pipe run. Pump head and motor are coupled by a rigid spacer coupling, so the mechanical seal can be changed without disturbing the pipework.
  • Non-self-priming: the pump must be fully primed and the required NPSH maintained at the inlet to avoid cavitation.
  • Above +40 °C ambient or above 1000 m altitude the motor output is derated and a larger motor frame must be selected. Motor totally enclosed, fan-cooled, protection IP55, insulation class F.
  • Optional intelligent controller protects against dry running, phase failure and overload.

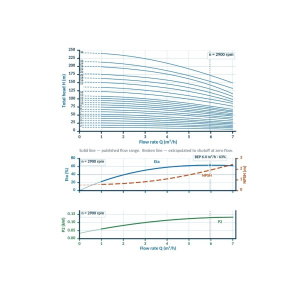

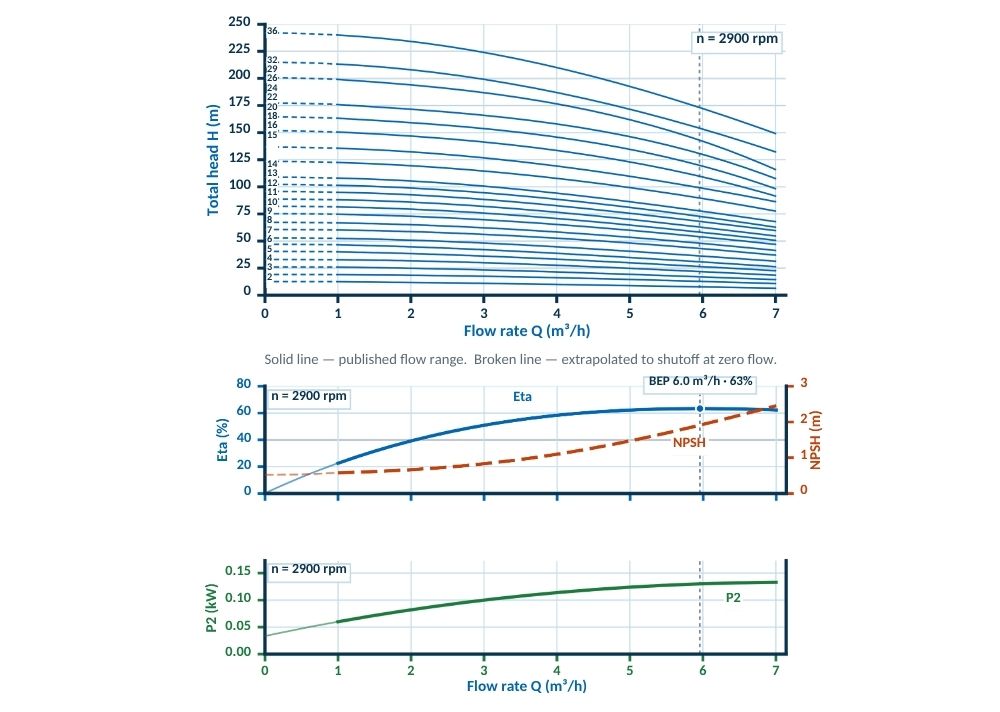

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 5-2 0.37 0.5 1~ 220-240 V 2.7 12 8.2 62 5 9 13 7 2900 1.3 DN32 279 225 504 140 110 23
SAR 5-3 0.55 0.75 1~ 220-240 V 3.9 17 12 65 5 15 19 7 2900 1.9 DN32 306 225 531 140 110 23
SAR 5-4 0.55 0.75 1~ 220-240 V 3.9 17 12 65 5 19 26 7 2900 2.5 DN32 333 225 558 140 110 24
SAR 5-5 0.75 1 1~ 220-240 V 5 23 15 68 5 24 33 7 2900 3.2 DN32 366 245 611 160 125 27
SAR 5-6 1.1 1.5 1~ 220-240 V 7.2 32 22 70 5 28 40 7 2900 3.9 DN32 393 245 638 160 125 29
SAR 5-7 1.1 1.5 1~ 220-240 V 7.2 32 22 70 5 32 46 7 2900 4.5 DN32 420 245 665 160 125 29
SAR 5-8 1.1 1.5 1~ 220-240 V 7.2 32 22 70 5 40 53 7 2900 5.2 DN32 447 245 692 160 125 30
SAR 5-9 1.5 2 1~ 220-240 V 9.5 43 29 72 5 47 60 7 2900 5.9 DN32 490 290 780 180 125 37
SAR 5-10 1.5 2 1~ 220-240 V 9.5 43 29 72 5 53 67 7 2900 6.6 DN32 517 290 807 180 125 37
SAR 5-11 2.2 3 1~ 220-240 V 14 61 41 74 5 59 74 7 2900 7.3 DN32 544 290 834 180 125 39
SAR 5-12 2.2 3 1~ 220-240 V 14 61 41 74 5 63 81 7 2900 7.9 DN32 571 290 861 180 125 40
SAR 5-13 2.2 3 1~ 220-240 V 14 61 41 74 5 68 88 7 2900 8.6 DN32 598 290 888 180 125 40
SAR 5-14 2.2 3 1~ 220-240 V 14 61 41 74 5 74 95 7 2900 9.3 DN32 625 290 915 180 125 41
SAR 5-15 2.2 3 1~ 220-240 V 14 61 41 74 5 79 101 7 2900 9.9 DN32 652 290 942 180 125 42
SAR 5-16 2.2 3 1~ 220-240 V 14 61 41 74 5 85 108 7 2900 10.6 DN32 679 290 969 180 125 42
SAR 5-18 3 4 3~ 380-415 V 5.9 38 18 85.8 5 98 122 7 2900 12 DN32 737 345 1082 190 140 49
SAR 5-20 3 4 3~ 380-415 V 5.9 38 18 85.8 5 108 135 7 2900 13.2 DN32 791 345 1136 190 140 50
SAR 5-22 4 5.5 3~ 380-415 V 7.7 50 23 86.8 5 120 150 7 2900 14.7 DN32 845 355 1200 220 150 60
SAR 5-24 4 5.5 3~ 380-415 V 7.7 50 23 86.8 5 132 163 7 2900 16 DN32 899 355 1254 220 150 62
SAR 5-26 4 5.5 3~ 380-415 V 7.7 50 23 86.8 5 145 176 7 2900 17.3 DN32 953 355 1308 220 150 63
SAR 5-29 4 5.5 3~ 380-415 V 7.7 50 23 86.8 5 155 198 7 2900 19.4 DN32 1034 355 1389 220 150 65
SAR 5-32 5.5 7.5 3~ 380-415 V 11 68 32 87.8 5 170 214 7 2900 21 DN32 1145 390 1535 260 210 80
SAR 5-36 5.5 7.5 3~ 380-415 V 11 68 32 87.8 5 191 241 7 2900 23.6 DN32 1253 390 1643 260 210 83



Product Videos

Datasheet/Downloads SAR 5 Datasheet
