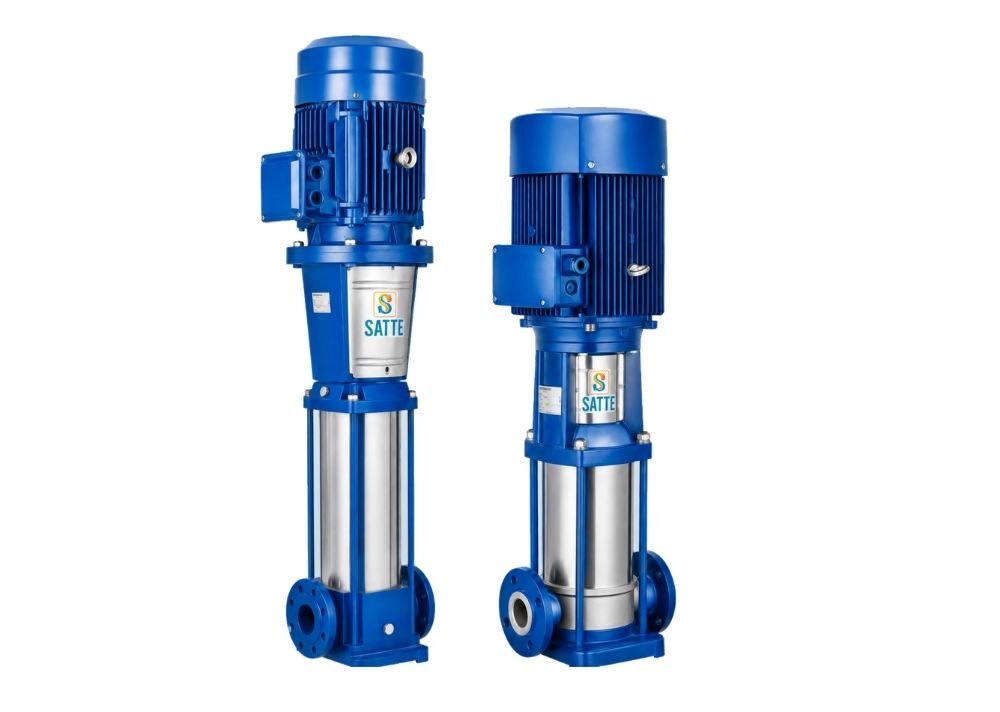

SAR 8

sar_940154351
sar_940154351sar8


The add to cart button will appear once you select the values above

Typical Applications

  • Water supply: raw-water transfer, filtration and boosting duties in waterworks, district distribution, high-rise pressure boosting and packaged booster sets.
  • Industrial pressure boosting: process water systems, washing and cleaning plant and high-pressure flushing systems.
  • Industrial liquid transfer: cooling and air-conditioning circuits, boiler feed and condensate systems, machine-tool coolant supply, and mild acids and alkalis.
  • Water treatment: ultra-filtration, reverse osmosis, distillation, separators and swimming-pool circulation.
  • Irrigation: field and farm irrigation, sprinkler systems and drip irrigation.

Operating Conditions

  • Thin, clean, non-flammable and non-explosive liquids, free of solid particles or fibres.
  • Liquid temperature: standard version −15 °C to +70 °C; hot-water version +70 °C to +120 °C.
  • Maximum ambient temperature +40 °C; maximum installation altitude 1000 m.
  • Maximum pressure generated ranges from 1.0 bar on SAR 8-2/1 to 20.4 bar on SAR 8-20, model by model — see Technical Data. Suction and discharge flanges to PN25 / DN40.
  • Suction and discharge ports are in line and of equal bore, allowing the pump to be installed directly in a straight pipe run. Pump head and motor are coupled by a rigid spacer coupling, so the mechanical seal can be changed without disturbing the pipework.
  • Non-self-priming: the pump must be fully primed and the required NPSH maintained at the inlet to avoid cavitation.
  • Above +40 °C ambient or above 1000 m altitude the motor output is derated and a larger motor frame must be selected. Motor totally enclosed, fan-cooled, protection IP55, insulation class F.
  • Optional intelligent controller protects against dry running, phase failure and overload.

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)

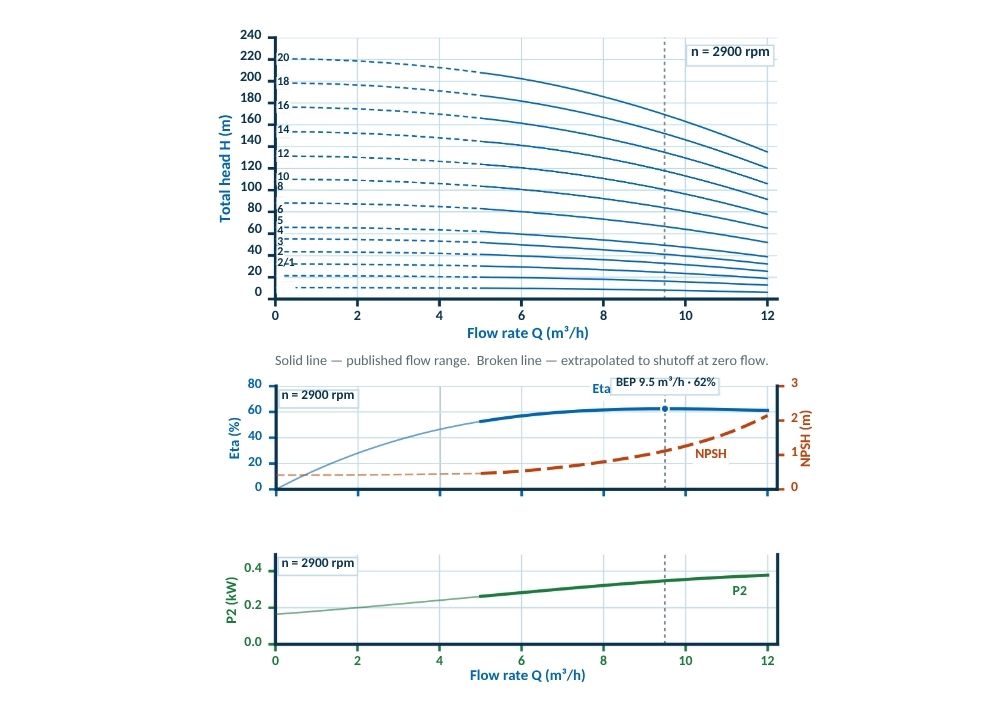

Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 8-2/1 0.75 1 1~ 220-240 V 5 23 15 68 8 9 10 12 2900 1 DN40 347 245 592 170 142 32
SAR 8-2 0.75 1 1~ 220-240 V 5 23 15 68 8 18 20 12 2900 2 DN40 347 245 592 170 142 32
SAR 8-3 1.1 1.5 1~ 220-240 V 7.2 32 22 70 8 27 30 12 2900 2.9 DN40 377 245 622 170 142 34
SAR 8-4 1.5 2 1~ 220-240 V 9.5 43 29 72 8 36 41 12 2900 4 DN40 417 290 707 190 155 40
SAR 8-5 2.2 3 1~ 220-240 V 14 61 41 74 8 45 52 12 2900 5.1 DN40 447 290 737 190 155 44
SAR 8-6 2.2 3 1~ 220-240 V 14 61 41 74 8 54 62 12 2900 6.1 DN40 477 290 767 190 155 45
SAR 8-8 3 4 3~ 380-415 V 5.9 38 18 85.8 8 73 83 12 2900 8.1 DN40 547 345 892 197 165 53
SAR 8-10 4 5.5 3~ 380-415 V 7.7 50 23 86.8 8 92 104 12 2900 10.2 DN40 607 355 962 230 188 64
SAR 8-12 4 5.5 3~ 380-415 V 7.7 50 23 86.8 8 111 124 12 2900 12.2 DN40 667 355 1022 230 188 66
SAR 8-14 5.5 7.5 3~ 380-415 V 11 68 32 87.8 8 130 145 12 2900 14.2 DN40 747 390 1137 260 208 81
SAR 8-16 5.5 7.5 3~ 380-415 V 11 68 32 87.8 8 148 166 12 2900 16.3 DN40 807 390 1197 260 208 84
SAR 8-18 7.5 10 3~ 380-415 V 14 91 42 88.5 8 167 187 12 2900 18.3 DN40 867 390 1257 260 208 93
SAR 8-20 7.5 10 3~ 380-415 V 14 91 42 88.5 8 186 208 12 2900 20.4 DN40 927 390 1317 260 208 94




Product Videos

Datasheet/Downloads SAR 8 Datasheet
