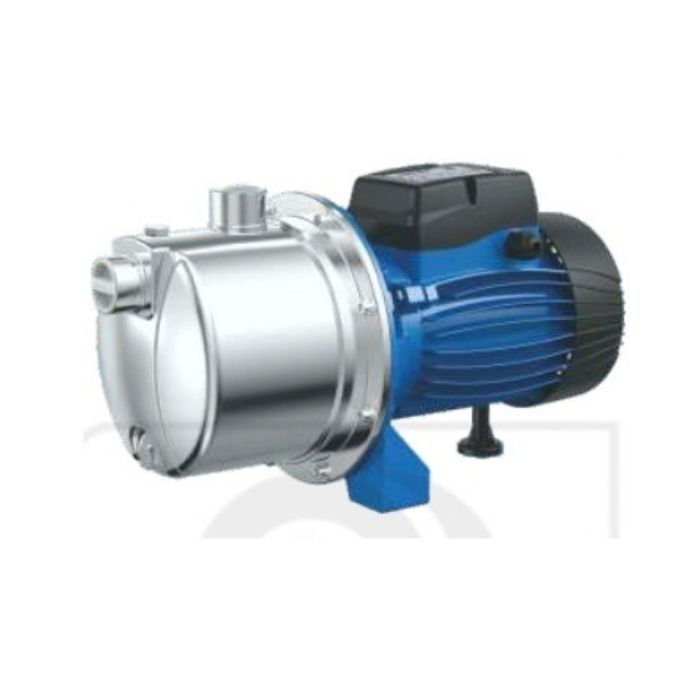

SDP 100

Typical Applications

• Water distributionsystemscombined with small to medium pressure units.
• Liquid transfer between tanks, cisterns and storage vessels.
• Irrigation of gardens and small agricultural plots.
• Domestic and civil water supply where steady pressure is required.
• Boosterduty ongravity-fedsuppliesin low-rise buildings.

Operating Conditions

• Clean waterandnon-corrosive liquidsthat do not attack the pump materials.
• Liquid temperature to +60 C; maximum ambient temperature +40 C. Total suction lift up to 8 m.
• Two-pole induction motor, 2850 rpm, insulation class B, protection IP44.
• Continuous service S1 with thermal protector on single-phase models.
• Install in a covered or enclosed space, protected from harsh weather.
• Fillthe casingand suctionline before starting.

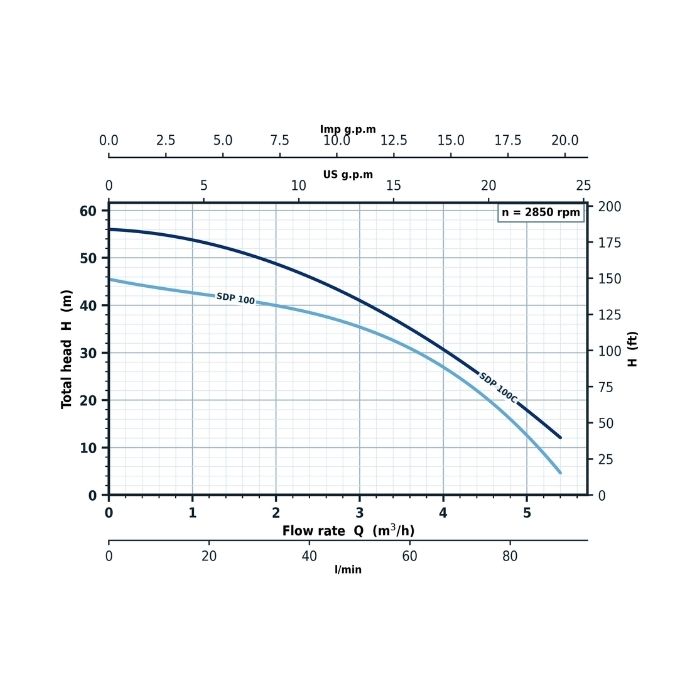

Technical Data
