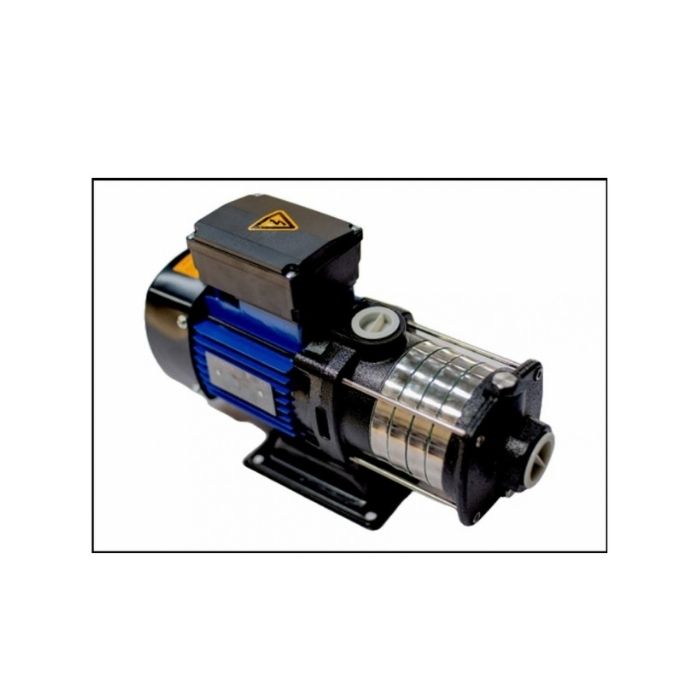

SHLP 16

Typical Applications

• Air-conditioningand coolingsystems: circulation for consistent temperature control and machine cooling.
• Pressure boosting in industrial processes and for domestic and commercial water distribution. Water treatment and purification plant, and boiler feedwater at high pressure.
• Industrial cleaning and high-pressure washdown duties.
• Aquaculture, fertiliser metering and agricultural irrigation.
• Firefighting systems requiring rapid, reliable supply.

Operating Conditions

• Thin, clean,non-aggressive and non-explosive liquids without solid particles or fibres.
• Liquid temperature range 0 C to +90 C; maximum ambient temperature +50 C.
• Maximum inlet pressure 6 bar; maximum operating pressure 10 bar to 40 C, 6 bar to 90 C.

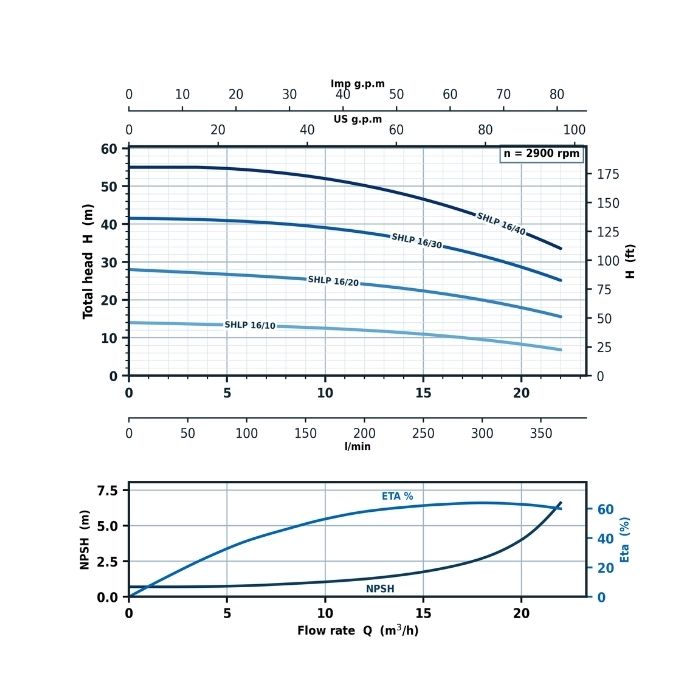

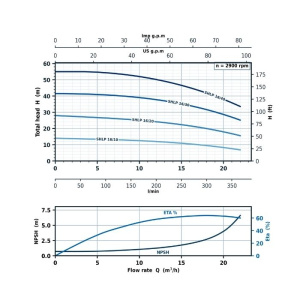

• Maximum suction lift: read from the NPSH curve, plus a safety margin of 1.0 m.
• Enclosure class IP54, insulation class F, 2900 rpm.
• All models in this series share the 16 m3/h hydraulic; the figure after the oblique is the stage group.
• Non-self-priming; fill the casing and suction line before starting.
