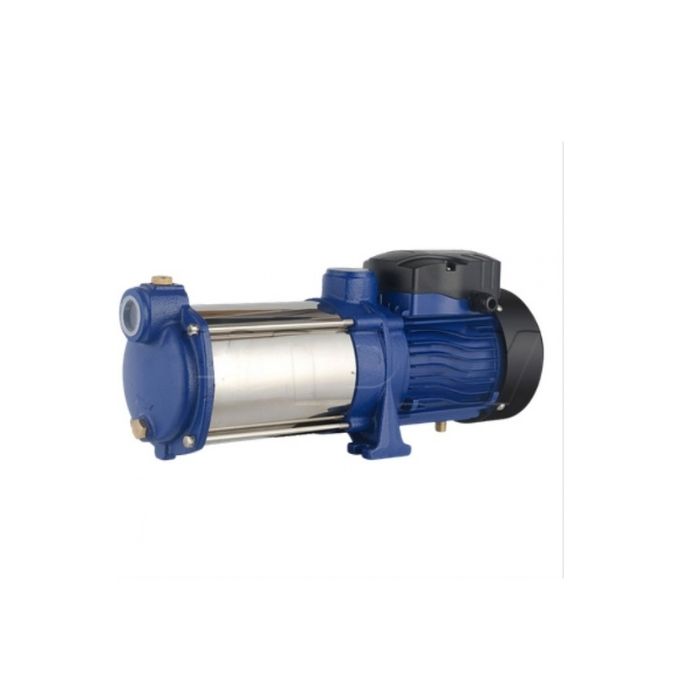

SM 6

sm
smsm6


The add to cart button will appear once you select the values above

Typical Applications

  • Domestic andcommercialpressureboosting where high head is required at modest flow.
  • Packaged booster sets serving multi-storey buildings and high-rise risers.
  • Water supply from storage tanks to distribution networks and header tanks.
  • Sprinkler and drip irrigation systems requiring sustained pressure.
  • Washing and cleaningplant, andgeneral industrial water transfer.

Operating Conditions

  • Clean water,non-flammable andnon-explosive, free of solid particles and fibres.
  • Liquid temperature to +60 C; maximum ambient temperature +40 C.
  • Non-self-priming: the pump must be fully primed before starting.
  • Keep the suction line short, airtight and fully flooded to avoid cavitation.
  • Motor totally enclosed, fan-cooled, protection IP44 to IP55, insulation class B.
  • All models in this series have 6 stages; the figure after the oblique is the pump frame size, which sets the flow range.
  • Do notrun dry;a low-levelor flowswitchis recommended on tank-fed installations.

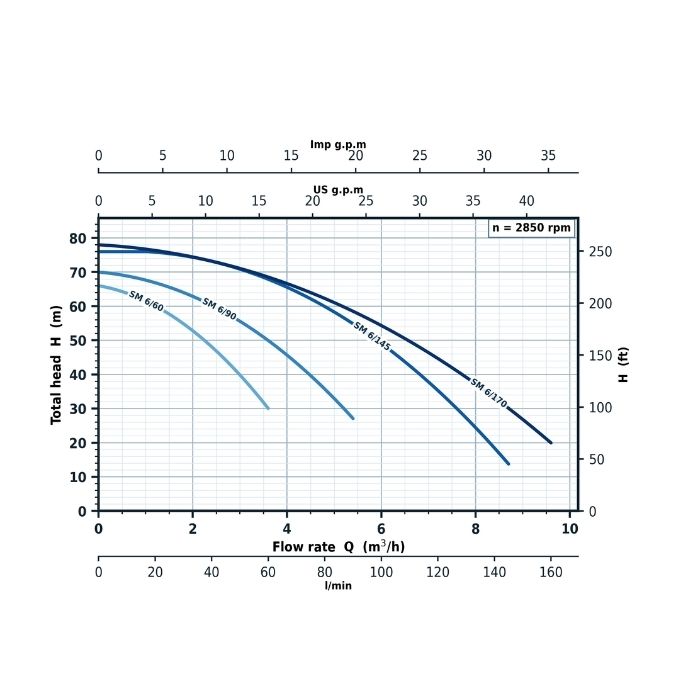

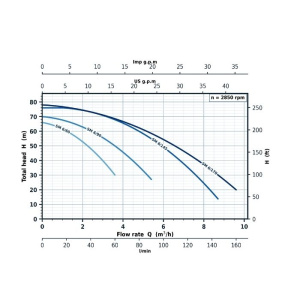

Technical Data

Model Motor Voltage Current (A) m m³/h rpm Inch kg mm
kW HP In Ist
SM 6/60 1 1.3 1~ 220-240 V 8.1 36 66 4 2850 1"x1" 13.1 515x190x210
SM 6/90 1.3 1.75 1~ 220-240 V 10.5 47 70 5 2850 1"x1" 17.1 560x230x250
SM 6/145 1.85 2.5 1~ 220-240 V 14.9 67 76 9 2850 1 1/4"x1 1/4" 23.5 605x270x260
SM 6/170 2.1 2.8 1~ 220-240 V 16.9 76 78 10 2850 1 1/4"x1 1/4" 25 605x270x260



Product Videos

Datasheet/Downloads SM 6 Datasheet
