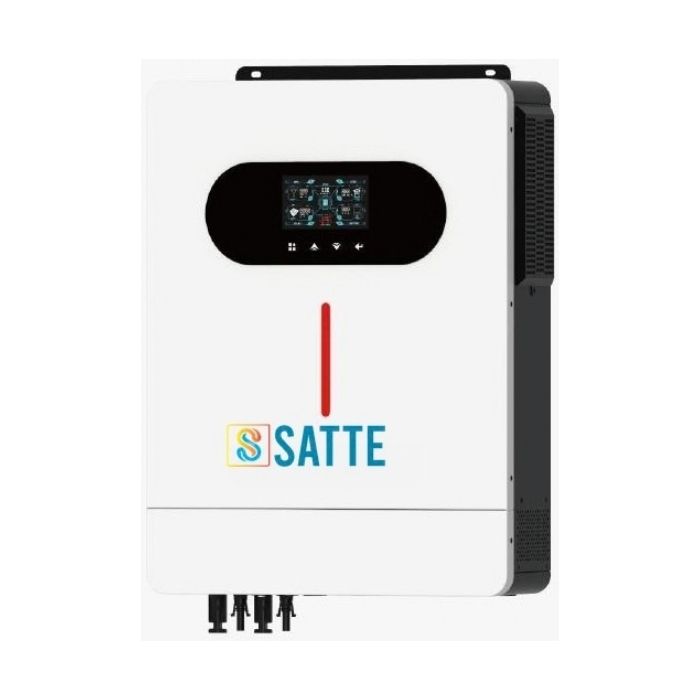

Sinv Max

The add to cart button will appear once you select the values above

Typical applications

Large residential — whole home supply including air conditioning, borehole pumps and electric cooking. C
ommercial premises — retail, hospitality, clinics and offices with substantial continuous load.
Institutions — schools, health centres and places of worship with critical and non-critical circuits.
Generator hybridisation — cuts diesel consumption by prioritising solar and battery supply.

Key Features

Three operating modes — grid-tie, off-grid and hybrid, selectable on site.
Dual PV input — two independent MPPT trackers for split or differently oriented arrays.
160 A MPPT solar charger, the highest charge current in the SATTE range.
Dual load output — separate main and second load terminals with automatic non-essential load shedding.
Grid-tie, off-grid and hybrid modes; pure sine wave, power factor > 0.99. Wi-Fi and GPRS remote monitoring for iOS and Android.
Builtin automatic lithium battery activation and dedicated BMS communication port.
Runs with or without a battery; anti-dust kit and one-key factory reset fitted.

Technical Specification

PARAMETER	SINV MAX 8.2KW-48V	SINV MAX 10.2KW-48V
GENERAL
Phase	Single phase	Single phase
Rated Output Power	8200 W / 8200 VA	10200 W / 10200 VA
Maximum PV Input Power	5400 W + 5400 W (two trackers)	5400 W + 5400 W (two trackers)
Nominal Battery Voltage	48 VDC	48 VDC
Maximum Conversion Efficiency (DC/AC)	98 %	98 %
GRID-TIE OPERATION — PV INPUT (DC)
Nominal / Maximum DC Voltage	360 VDC / 500 VDC	360 VDC / 500 VDC
Start-up / Initial Feeding Voltage	90 VDC / 120 VDC	90 VDC / 120 VDC
MPPT Voltage Range	90 – 450 VDC	90 – 450 VDC
MPPT Trackers / Maximum Input Current	2 × 18 A	2 × 18 A
GRID-TIE OPERATION — GRID OUTPUT (AC)
Nominal Output Voltage	220 / 230 / 240 VAC	220 / 230 / 240 VAC
Output Voltage Range	195 – 253 VAC	195 – 253 VAC
Nominal Output Current	35.6 A	44.3 A
Power Factor	> 0.99	> 0.99
DUAL LOAD OUTPUT
Full Load / Maximum Main Load	8200 W	10200 W
Maximum Second Load (battery mode)	2733 W	3400 W
Second Load Cut-Off Voltage	52 VDC	52 VDC
Second Load Return Voltage	54 VDC	54 VDC
OFF-GRID OPERATION — AC INPUT
AC Start-up / Auto Restart Voltage	120 – 140 VAC / 180 VAC	120 – 140 VAC / 180 VAC
Acceptable Input Voltage Range	90 – 280 VAC or 170 – 280 VAC (selectable)	90 – 280 VAC or 170 – 280 VAC (selectable)
Input Frequency Range¹	59 – 61 ± 1 Hz — see Note 1	59 – 61 ± 1 Hz — see Note 1
Maximum AC Input Current	48.2 A	60 A
OFF-GRID OPERATION — BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220 / 230 / 240 VAC	220 / 230 / 240 VAC
Output Waveform / Efficiency (DC to AC)	Pure sine wave \| 94 %	Pure sine wave \| 94 %
BATTERY & CHARGER
Maximum Solar Charging Current	160 A	160 A
Maximum AC Charging Current (off-grid and hybrid)	140 A	140 A
Maximum Solar + AC Charging Current	160 A	160 A
Maximum Charging Power (48 V)²	≈ 8.2 kW	≈ 8.2 kW
Minimum Battery Discharge Rating²	182 A	226 A
BATTERY BANK CONFIGURATION — BATTERIES ONLY, NOT SOLAR PANELS⁴
Battery Modules in Series	Not permitted — parallel connection only	Not permitted — parallel connection only
Min. Battery Modules — S100Ah, 48 V 100 Ah (4.8 kWh)	4	4
Min. Battery Modules — 48 V 205 Ah (10.5 kWh)	2	2
Min. Battery Modules — S280Ah, 48 V 280 Ah	1	2
Max. Battery Modules in Parallel	8	8
Recommended Battery Bank Capacity	20 – 41 kWh	21 – 41 kWh
MECHANICAL, COMMUNICATION & COMPLIANCE
Dimensions (H × W × D)	530 × 390 × 130 mm	530 × 390 × 130 mm
Carton Dimensions (H × W × D)	618 × 463 × 205 mm	618 × 463 × 205 mm
Net Weight	14.2 kg	14.7 kg
Gross Weight	15.7 kg	16.2 kg
Communication Ports	RS232 / RS485 / Wi-Fi / GPRS / Lithium battery BMS	RS232 / RS485 / Wi-Fi / GPRS / Lithium battery BMS
Remote Monitoring (Wi-Fi / app)	Yes — Wi-Fi or GPRS dongle, iOS and Android	Yes — Wi-Fi or GPRS dongle, iOS and Android
Operating Temperature / Humidity	−10 °C to +50 °C \| 5 % to 95 %, non-condensing	−10 °C to +50 °C \| 5 % to 95 %, non-condensing
Relative Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing
Compliance / Safety Mark	CE	CE
