| PARAMETER |

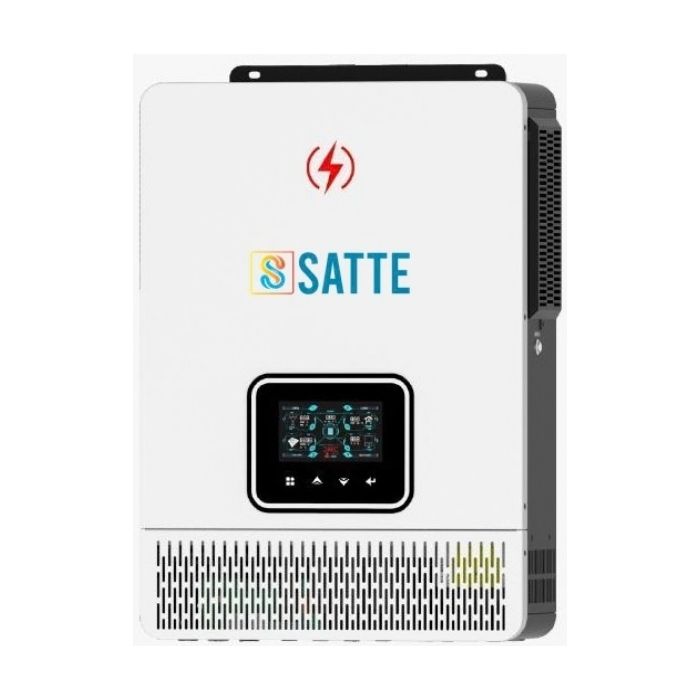

SINV TURBO 3.6KW-24V |
SINV TURBO 6KW-48V |
| GENERAL |
| Phase (single unit) |
Single phase |
Single phase |
| Rated Output Power |
3600 W / 3600 VA |
6000 W / 6000 VA |
| Maximum PV Input Power |
6200 W |
4500 W + 4500 W |
| Nominal Battery Voltage |
24 VDC |
48 VDC |
| Maximum Conversion Efficiency (Solar to AC) |
98 % |
98 % |
| Surge Power |
7200 W |
12000 W |
| PARALLEL & THREE-PHASE OPERATION |
| Maximum Units in Parallel |
9 |
9 |
| Three-Phase Capability |
Yes, from 3 or more units |
Yes, from 3 or more units |
| Maximum Parallel Output Power |
32.4 kW (9 units) |
54.0 kW (9 units) |
| Automatic Generator Access |
Yes |
Yes |
| Dual Load Output |
Single unit only — not available in parallel |
Single unit only — not available in parallel |
| GRID-TIE OPERATION — PV INPUT (DC) |
| Nominal / Maximum DC Voltage |
360 VDC / 500 VDC |
360 VDC / 500 VDC |
| Start-up / Initial Feeding Voltage¹ |
90 VDC / 120 VDC |
90 VDC / 120 VDC |
| MPPT Voltage Range |
60 – 450 VDC |
60 – 450 VDC |
| MPPT Trackers / Maximum Input Current |
1 × 22 A |
2 × 18 A |
| GRID-TIE OPERATION — GRID OUTPUT (AC) |
| Nominal Output Voltage |
220 / 230 / 240 VAC |
220 / 230 / 240 VAC |
| Output Voltage Range |
195.5 – 253 VAC |
195.5 – 253 VAC |
| Nominal Output Current |
15.2 A |
26.1 A |
| Power Factor / Feed-in Frequency |
> 0.99 | 49 – 51 ± 1 Hz |
> 0.99 | 49 – 51 ± 1 Hz |
| DUAL LOAD OUTPUT (SINGLE UNIT) |
| Full Load / Maximum Main Load |
3600 W |
6000 W |
| Second Load Range |
720 – 2520 W |
1200 – 4200 W |
| Second Load Cut-Off Voltage |
26 VDC |
52 VDC |
| Second Load Return Voltage |
27 VDC |
54 VDC |
| OFF-GRID OPERATION — AC INPUT |
| AC Start-up / Auto Restart Voltage |
130 – 140 VAC / 180 VAC |
130 – 140 VAC / 180 VAC |
| Acceptable Input Voltage Range |
90 – 280 VAC or 170 – 280 VAC (selectable) |
90 – 280 VAC or 170 – 280 VAC (selectable) |
| Nominal Operating Frequency |
47 – 55 ± 0.3 Hz / 57 – 65 ± 0.3 Hz |
47 – 55 ± 0.3 Hz / 57 – 65 ± 0.3 Hz |
| Maximum AC Input Current |
21.1 A |
35.3 A |
| OFF-GRID OPERATION — BATTERY MODE OUTPUT (AC) |
| Nominal Output Voltage |
220 / 230 / 240 VAC |
220 / 230 / 240 VAC |
| Output Waveform / Efficiency (DC to AC) |
Pure sine wave | 94 % |
Pure sine wave | 94 % |
| BATTERY & CHARGER |
| Maximum Solar Charging Current |
120 A |
120 A |
| Maximum AC Charging Current |
100 A |
100 A |
| Maximum Solar + AC Charging Current |
120 A |
120 A |
| Maximum Charging Power² |
≈ 3.07 kW |
≈ 6.14 kW |
| Minimum Battery Discharge Rating² |
160 A |
133 A |
| BATTERY BANK CONFIGURATION — BATTERIES ONLY, NOT SOLAR PANELS⁴ |
| Battery Modules in Series |
Not permitted — parallel connection only |
Not permitted — parallel connection only |
| Min. Battery Modules — S200Ah, 24 V 200 Ah (4.8 kWh) |
2 |
3 |
| Min. Battery Modules — S280Ah / S200Ah |
1 |
1 |
| Max. Battery Modules in Parallel (single unit) |
4 |
6 |
| Recommended Battery Bank Capacity (single unit) |
10 – 18 kWh |
15 – 30 kWh |
| Maximum Bank, 9-Unit Parallel Group |
160 kWh |
270 kWh |
| MECHANICAL, COMMUNICATION & COMPLIANCE |
| Dimensions (H × W × D) |
481 × 344 × 120 mm |
481 × 344 × 120 mm |
| Carton Dimensions (H × W × D) |
550 × 415 × 200 mm |
550 × 415 × 200 mm |
| Net / Gross Weight |
10.0 / 11.0 kg |
11.0 / 12.5 kg |
| Communication Ports |
RS232 / RS485 / Wi-Fi / CAN / Parallel |
RS232 / RS485 / Wi-Fi / CAN / Parallel |
| Remote Monitoring (Wi-Fi / app) |
Yes — Wi-Fi or GPRS dongle, iOS and Android |
Yes — Wi-Fi or GPRS dongle, iOS and Android |
| Operating Temperature / Humidity |
−10 °C to +50 °C | 5 % to 95 % RH, non-condensing |
−10 °C to +50 °C | 5 % to 95 % RH, non-condensing |
