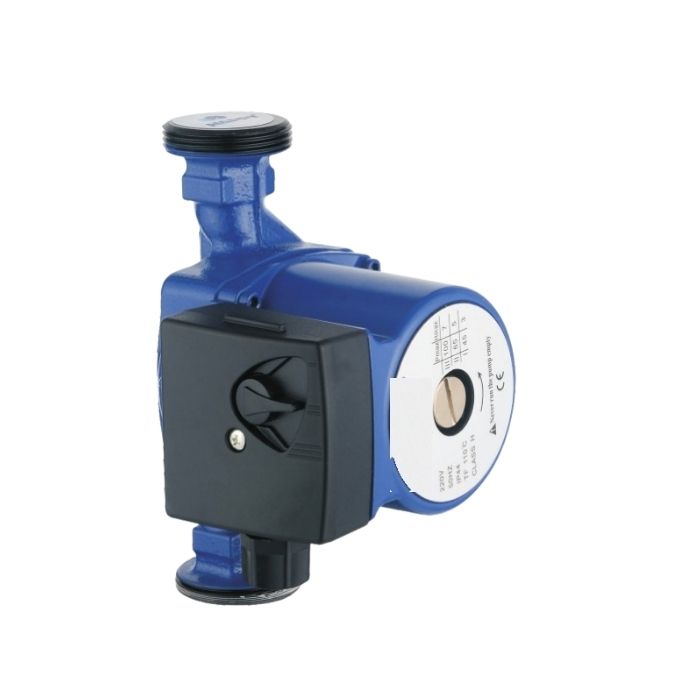

Typical Applications
- Domestic andlight-commercial hydronic heating: radiator, underfloor and fan-coil circuits.
- Boiler,calorifier and solar thermal primary circuits.
- Hot-water recirculation to keep draw-off points primed.
- Air-conditioning and chilled-water secondary circulation.
- Water/glycolmixtures up to1:1 for frost-protected systems.
Operating Conditions
- Suitablefluids: heatingwater (to VDI 2035), clean water, water/glycol mixtures to a maximum mixing ratio of 1:1.
- Not for solids-bearing, aggressive or explosive liquids.
- Liquid temperature range -10 C to +110 C; maximum ambient temperature +40 C.
- Maximum system working pressure 10 bar.
- Power supply 1~ 220-240 V, 50 Hz; enclosure class IP44, insulation classF.
- Three manually selectable speeds (I / II / III) via the terminal-box switch; the motor is non-overloading at every speed.
- Wet-rotor, glandless canned-motor design: the pumped liquid lubricates the ceramic bearings and cools the motor.
- Never run dry.
- Install with the pump shaft horizontal and the terminal box / control panel not facing downwards; maintain a minimum inlet pressure to prevent cavitation noise at high liquid temperatures.
Materials of Construction
- Pump body: Castiron
- Impeller: PP
- (polypropylene) Shaft: Ceramic
- Bearings: Ceramic
- Rotor can / motor: Stainless steel can, wet-rotor canned motor
- Connection: Threaded union (BSP)

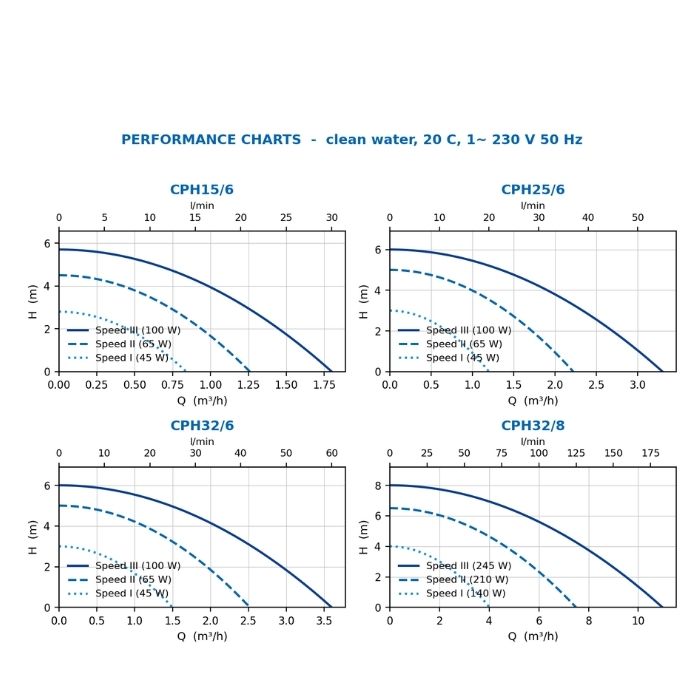

Technical Data
| Model |
Spd |
W |
Voltage |
Current (A) |
Flow |
m |
Inch |
mm |
mm |
| In |
Ist |
l/min Max Q |
m³/h Max Q |
| CPH15/6 |
III |
100 |
1~230 V |
0.7 |
1.8 |
30 |
1.8 |
5.7 |
G1 |
130 |
310x280x288 |
| CPH15/6 |
II |
65 |
1~230 V |
0.46 |
1.1 |
21 |
1.26 |
4.5 |
G1 |
130 |
310x280x288 |
| CPH15/6 |
I |
45 |
1~230 V |
0.32 |
0.8 |
14 |
0.84 |
2.8 |
G1 |
130 |
310x280x288 |
| CPH25/6 |
III |
100 |
1~230 V |
0.7 |
1.8 |
55 |
3.3 |
6 |
G1 1/2 |
180 |
404x280x300 |
| CPH25/6 |
II |
65 |
1~230 V |
0.46 |
1.1 |
37 |
2.22 |
5 |
G1 1/2 |
180 |
404x280x300 |
| CPH25/6 |
I |
45 |
1~230 V |
0.32 |
0.8 |
20 |
1.2 |
3 |
G1 1/2 |
180 |
404x280x300 |
| CPH32/6 |
III |
100 |
1~230 V |
0.7 |
1.8 |
60 |
3.6 |
6 |
G2 |
180 |
404x280x300 |
| CPH32/6 |
II |
65 |
1~230 V |
0.46 |
1.1 |
42 |
2.52 |
5 |
G2 |
180 |
404x280x300 |
| CPH32/6 |
I |
45 |
1~230 V |
0.32 |
0.8 |
25 |
1.5 |
3 |
G2 |
180 |
404x280x300 |
| CPH32/8 |
III |
245 |
1~230 V |
1.72 |
4.3 |
183 |
10.98 |
8 |
G2 |
180 |
420x305x202 |
| CPH32/8 |
II |
210 |
1~230 V |
1.47 |
3.7 |
125 |
7.5 |
6.5 |
G2 |
180 |
420x305x202 |
| CPH32/8 |
I |
140 |
1~230 V |
0.98 |
2.5 |
67 |
4.02 |
4 |
G2 |
180 |
420x305x202 |
