SFLO SP15

SFLO SP15
SFLO SP15sflo_sp15


The add to cart button will appear once you select the values above

Typical Applications

  • Off-gridborehole water supply where mains power is unavailable.
  • Drip, sprinkler and furrow irrigation on farms and smallholdings.
  • Rural and institutional supply — schools, clinics, trading centres.
  • Livestock watering points and cattle troughs.
  • Filling elevated storage tanks for gravity distribution.
  • Emergency and temporary supply in relief operations.

Operating Conditions

  • Clean,non-corrosivewater; sand content not more than 3% by volume,Maximum medium temperature +40 °C; pH 5–10.
  • Minimum well diameter 4” (100 mm); pump fully immersed at all times.
  • Maximum submersion depth 100 m below the water surface.
  • Controller ambient −20 to +60 °C, mounted shaded and ventilated. Array unshaded across the whole pumping window.

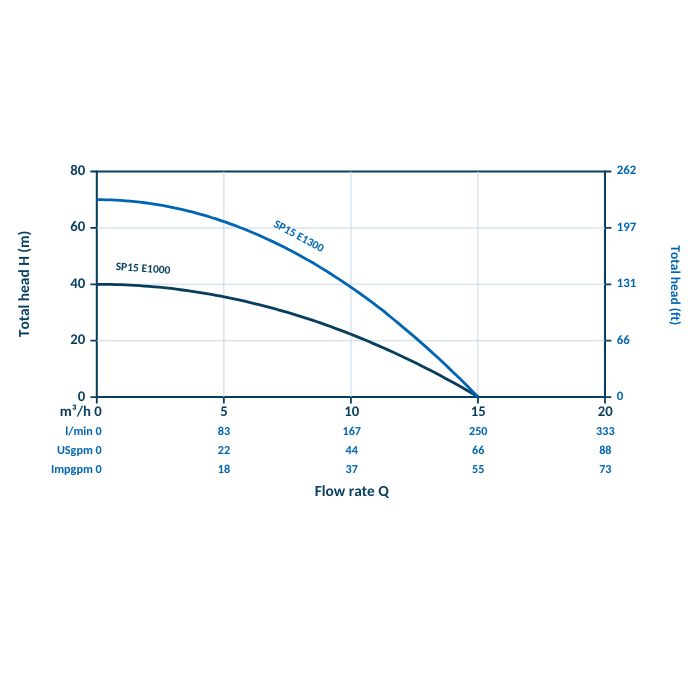

Technical Data

SATTE Model Rated Power (W) Motor (VDC) Rated Current (A) Stages Maximum Flow Maximum Head Outlet DN MPPT Controller Max Input (VDC) Array Vmp Window (V) Weight (kg)
m³/h l/min US gpm Imp gpm m ft
SP15 E1000 1000 72 15.1 4 15 250 66 55 40 131 2" DC72-VMP108 150 82–150 13.5
SP15 E1300 1300 108 13.1 7 15 250 66 55 70 230 2" DC96-VMP144 180 124–180 14



Product Videos

Datasheet/Downloads SFLO SP15 Datasheet
