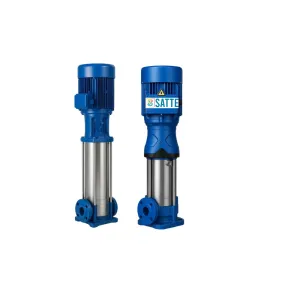

SAR 120

SAR 120
SAR 120sar_120


The add to cart button will appear once you select the values above

Typical Applications

  • Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems. High-rise buildings -
  • Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids fordifferentpurposes.

Operating Conditions

  • PumpedLiquids:Thin,clean,non-explosive liquids without solid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C
  • Maximum Operating Pressure: 23 bar

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 120-1 11 15 3~ 380-415 V 20 142 61 89.7 120 18.5 22 150 2950 2.2 DN125 840 500 1340 330 255 230
SAR 120-2-2 15 20 3~ 380-415 V 27 190 82 90.5 120 28.5 34 150 2950 3.3 DN125 1000 500 1500 330 255 245
SAR 120-2-1 18.5 25 3~ 380-415 V 33 233 100 91 120 34.5 41 150 2950 4 DN125 1000 550 1550 330 255 250
SAR 120-2 22 30 3~ 380-415 V 40 277 119 91.3 120 40 46 150 2950 4.5 DN125 1000 575 1575 360 285 285
SAR 120-3-2 30 40 3~ 380-415 V 53 374 160 92 120 49 57 150 2950 5.6 DN125 1160 650 1810 400 310 360
SAR 120-3-1 30 40 3~ 380-415 V 53 374 160 92 120 55.5 64 150 2950 6.3 DN125 1160 650 1810 400 310 360
SAR 120-3 30 40 3~ 380-415 V 53 374 160 92 120 61 69.5 150 2950 6.8 DN125 1160 650 1810 400 310 360
SAR 120-4-2 37 50 3~ 380-415 V 66 460 197 92.4 120 69 80.5 150 2950 7.9 DN125 1320 650 1970 400 310 400
SAR 120-4-1 37 50 3~ 380-415 V 66 460 197 92.4 120 76 87 150 2950 8.5 DN125 1320 650 1970 400 310 400
SAR 120-4 45 60 3~ 380-415 V 80 557 239 92.8 120 81 92.5 150 2950 9.1 DN125 1320 685 2005 460 340 460
SAR 120-5-2 45 60 3~ 380-415 V 80 557 239 92.8 120 90 104.5 150 2950 10.2 DN125 1480 685 2165 460 340 470
SAR 120-5-1 45 60 3~ 380-415 V 80 557 239 92.8 120 97 110.5 150 2950 10.8 DN125 1480 685 2165 460 340 470
SAR 120-5 55 75 3~ 380-415 V 96 671 287 93.1 120 101.5 115.5 150 2950 11.3 DN125 1510 760 2270 540 370 575
SAR 120-6-2 55 75 3~ 380-415 V 96 671 287 93.1 120 110 128 150 2950 12.5 DN125 1670 760 2430 540 370 585
SAR 120-6-1 55 75 3~ 380-415 V 96 671 287 93.1 120 118 134 150 2950 13.1 DN125 1670 760 2430 540 370 585
SAR 120-6 75 100 3~ 380-415 V 130 909 389 93.7 120 123 139 150 2950 13.6 DN125 1670 845 2515 580 410 705
SAR 120-7-2 75 100 3~ 380-415 V 130 909 389 93.7 120 130 151 150 2950 14.8 DN125 1830 845 2675 580 410 715
SAR 120-7-1 75 100 3~ 380-415 V 130 909 389 93.7 120 137.5 156.5 150 2950 15.3 DN125 1830 845 2675 580 410 715
SAR 120-7 75 100 3~ 380-415 V 130 909 389 93.7 120 145 162.5 150 2950 15.9 DN125 1830 845 2675 580 410 715



Product Videos

Datasheet/Downloads SAR 120 Datasheet
