Typical Applications

  • Pump clean water with sand content 150g/m³ for diverse applications.
  • Extract water efficiently from wells for various agricultural needs.
  • Utilize the pump for river-based water extraction and distribution purposes.
  • Support farm irrigation systems, ensuring optimal water supply for crops.
  • Provide reliable water supply solutions for various domestic and industrial uses.
  • Facilitate efficient water extraction in mining operations for diverse applications.
  • Aid in drainage systems within the breeding industry for optimal conditions.

Operating Conditions

  • Water temperature up to 35℃
  • Ambient temperature permissible up to 40℃
  • SSP Minimum internal diameter of well: 4"(100mm)
  • Maximum Sand Content: 0.25%
  • Maximum immersion depth: 80m

Motor

  • Rewindable motor
  • Insulation Class B
  • Protection IP68

Material Specifications

Components Material
Pump body Stainless steel
Pump shaft Stainless steel
Impeller POM
Bearing C&U
Mechanical seal Ceramic/Graphite, SIC/Graphite or Alloy
Coupling and outlet Brass, Stainless steel
Shaft coupling AISI304 SS
Motor shaft AISI304 SS
Oil chamber Cast iron

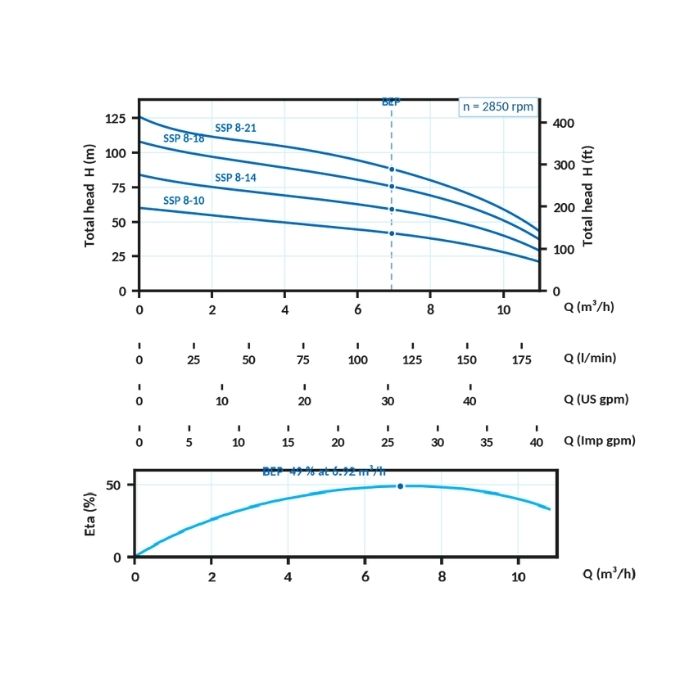

TechnicalData

Model
Supply
 Motor P2 Current at 50 Hz (A)
Stages
Max. head (m)
Max. flow (m³/h)
Outlet
 Dimensions (mm)
Weight (kg)
kW HP Operating In Starting Ist Ø D P M T
SSP 8-10 220-240 V / 380-415 V 1.5 2 10.5 / 4 47 / 18 10 60 11 1½" / 2" 98 / 95 625 515 1090 19.9
SSP 8-14 220-240 V / 380-415 V 2.2 3 15 / 6 68 / 27 14 84 11 1½" / 2" 98 / 95 793 590 1333 24.9
SSP 8-18 380-415 V 3 4 8 36 18 108 11 1½" / 2" 98 / 95 961 605 1516 28.1
SSP 8-21 380-415 V 4 5.5 10 45 21 126 11 1½" / 2" 98 / 95 1087 723 1760 31.7



Product Videos

Datasheet/Downloads SSP 8 Datasheet
