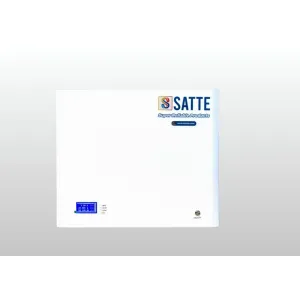

Satte 5kWh Battery

The add to cart button will appear once you select the values above

Typical Applications

Residential Energy Storage: Stores excess solar energy for home use, reducing electricity bills effectively.
Backup Power Supply: Provides reliable power during outages, ensuring uninterrupted essential device operation.
Off-Grid Living: Supports independent energy systems, powering homes in remote locations sustainably.
Load Shifting: Shifts energy usage to off-peak hours, optimizing cost and grid efficiency.
Electric Vehicle Charging: Supplies stored energy for EV charging, enhancing home energy flexibility.
Smart Home Integration: Monitors and manages energy via apps, improving usage and efficiency.
Technical Data

PARAMETER	S200Ah — 24 V / 200 Ah	S100Ah — 48 V / 100 Ah
ELECTRICAL
Nominal Voltage	25.6 V	51.2 V
Rated Capacity	200 Ah	100 Ah
Nominal Energy	5.12 kWh	5.12 kWh
Operating Voltage Range	21.6 – 28.8 V	43.2 – 57.6 V
Cell Chemistry	Lithium iron phosphate (LiFePO4)	Lithium iron phosphate (LiFePO4)
Cell Configuration¹	1P 8S	1P 16S
Depth of Discharge²	98 % (BMS limit)	98 % (BMS limit)
CHARGE & DISCHARGE
Nominal Charging Current	100 A	40 A
Nominal Charging Power³	≈ 2.56 kW	≈ 2.05 kW
Nominal Discharging Current	100 A	60 A
Continuous Discharge Power³	≈ 2.56 kW	≈ 3.07 kW
BANK CONFIGURATION
Modules in Series	Not permitted — parallel connection only	Not permitted — parallel connection only
Modules in Parallel	Permitted. Maximum is set by the inverter — see the inverter datasheet	Permitted. Maximum is set by the inverter — see the inverter datasheet
Typical Maximum in Parallel⁴	4 modules (20 kWh) on SNM-ECO / TURBO; 8 modules (41 kWh) on MAX	4 modules (20 kWh) on SNM-ECO / TURBO; 8 modules (41 kWh) on MAX
INVERTER COMPATIBILITY
Maximum Inverter Rating, One Unit³	2.4 kW	2.9 kW
Units Required — SATTE SNM-ECO 3.6KW	2	2
Units Required — SATTE SNM-ECO 4.2KW / SINV-4.2KW	2	2
Units Required — SATTE SNM-ECO 6.2KW / SINV-6.2KW	—	3
Communication Protocol	Pylontech · Deye/Sunsynk · Growatt · GoodWe · Victron · SofarSolar · LuxPower · Solis · SMA · SRNE · Outback · AlphaESS	Pylontech · Deye/Sunsynk · Growatt · GoodWe · Victron · SofarSolar · LuxPower · Solis · SMA · SRNE · Outback · AlphaESS
ENVIRONMENTAL
Charging Temperature Range	0 °C to +45 °C	0 °C to +45 °C
Discharging Temperature Range	−20 °C to +60 °C	−20 °C to +60 °C
Relative Humidity	≤ 95 %, non-condensing	≤ 95 %, non-condensing
Maximum Operating Altitude	2000 m	2000 m
Cooling Method	Natural convection	Natural convection
Ingress Protection	IP54	IP54
INTERFACE
Communication Ports	RS485 / RS232 / CAN	RS485 / RS232 / CAN
Display	LED status indicator	LED status indicator
MECHANICAL
Dimensions (H × W × D)	565 × 480 × 180 mm	565 × 480 × 180 mm
Dimensions (inches)	22.3 × 18.9 × 7.1 in	22.3 × 18.9 × 7.1 in
Weight	51.0 kg (112.4 lb)	51.5 kg (113.6 lb)
Mounting	Wall-mounted, indoor	Wall-mounted, indoor
CERTIFICATION
Transport Certification	UN38.3 / MSDS / DGM	UN38.3 / MSDS / DGM
