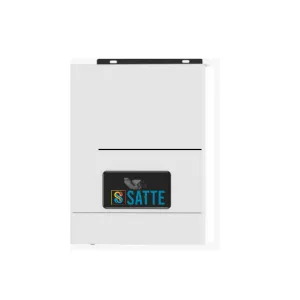

SML Hybrid inverter

The add to cart button will appear once you select the values above

Typical Applications

Residential Solar Energy Systems - Ideal for powering home appliances with low transfer time and high efficiency (up to 98%).
Commercial Solar Installations - Suitable for offices needing uninterrupted power with advanced MPPT solar charging
technology.
Remote Monitoring and Control - Useful in areas requiring Wi-Fi/GPRS connectivity for Android/iOS-based remote
management.
Harsh Environmental Conditions - Designed with an anti-dust kit for use in challenging industrial or agricultural environments.
Lithium Battery-Compatible Projects - Compatible with lithium battery setups, ensuring optimal smart charging and extended
battery life.

Technical Data

Maximum AC Charging Current	60 A	60 A
SOLAR CHARGER (MPPT)
Solar Charger Type	MPPT	MPPT
Maximum PV Array Power	3000 W	3000 W
MPPT Operating Voltage Range	30 – 400 VDC	30 – 400 VDC
Maximum PV Open-Circuit Voltage (Voc)	400 VDC	400 VDC
Maximum PV Input Current	1 × 13 A (single tracker)	1 × 13 A (single tracker)
Maximum Solar Charging Current	80 A	80 A
Maximum Solar + AC Charging Current	80 A	80 A
MECHANICAL
Dimensions (H × W × D)	357 × 273 × 95 mm	357 × 273 × 95 mm
Carton Dimensions (H × W × D)	435 × 335 × 165 mm	435 × 335 × 165 mm
Net Weight	4.6 kg	4.8 kg
Gross Weight	5.6 kg	5.8 kg
Mounting	Wall-mounted	Wall-mounted
BATTERY BANK CONFIGURATION — BATTERIES ONLY, NOT SOLAR PANELS¹
Battery Modules in Series	Not permitted — parallel connection only	Not permitted — parallel connection only
Compatible SATTE Lithium Battery	SH-UIB-P12100 / P12150 / P12200 (12.8 V)	S200Ah, 24 V 200 Ah (4.8 kWh)
Min. Battery Modules — 12.8 V (SH-UIB series)	1	—
Min. Battery Modules — S200Ah, 24 V 200 Ah (4.8 kWh)	—	1
Max. Battery Modules in Parallel	4	2
Recommended Battery Bank Capacity	2.6 – 5.1 kWh	7.2 – 9.6 kWh
COMMUNICATION, ENVIRONMENT & COMPLIANCE
Communication Interface	RS232 / GPRS / Wi-Fi	RS232 / GPRS / Wi-Fi
Remote Monitoring (Wi-Fi / app)	Yes — Wi-Fi or GPRS dongle, iOS and Android	Yes — Wi-Fi or GPRS dongle, iOS and Android
Operating Temperature	−10 °C to +50 °C	−10 °C to +50 °C
Relative Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing
Cooling	Forced air	Forced air
Compliance / Safety Mark	CE	CE
