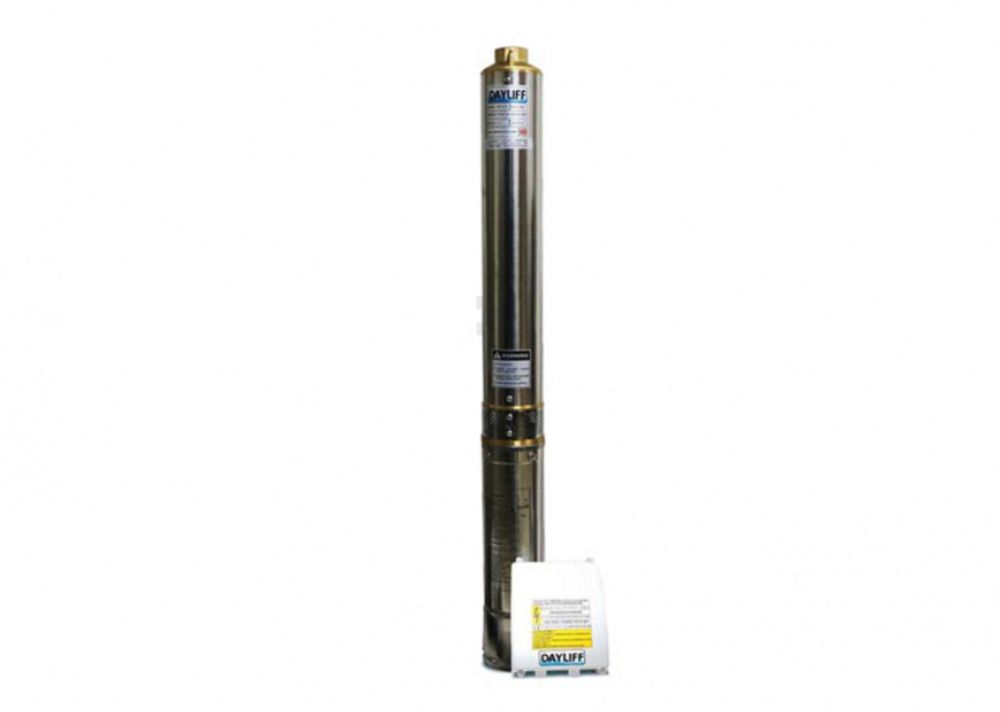

DSD 3



Applications

The Dayliff DSD range of Submersible Multistage centrifugal pumps is specifically designed for domestic and small-scale water supply from wells and boreholes. Here are some applications where these pumps can be used:

1. Residential Water Supply: The DSD pumps are ideal for providing water supply to residential properties. They can be installed in wells or boreholes to extract water and deliver it to households, ensuring a reliable source of water for drinking, cooking, bathing, and other domestic needs.

2. Small-Scale Irrigation: These pumps can be used for small-scale irrigation purposes. Whether it's a garden, small agricultural field, or vegetable patch, the DSD pumps can provide the necessary water flow to efficiently irrigate plants, promoting healthy growth and optimal yields.

3. Watering Livestock: Farmers and ranchers can utilize the DSD pumps to provide water for livestock watering. They can be installed in wells or boreholes to deliver water to troughs or watering systems, ensuring a reliable water source for cattle, horses, sheep, and other livestock.

4. Small-Scale Commercial Applications: The DSD pumps can be employed for small-scale commercial purposes such as small businesses or community centers that require a steady water supply. They can ensure a reliable water source from wells or boreholes for various operations like cleaning, equipment maintenance, and general water usage.

5. Backup Water Supply: In areas where the main water supply is unreliable or during emergencies, the DSD pumps can serve as a backup water supply. By utilizing wells or boreholes, these pumps can provide an alternative source of water for essential needs, ensuring continuity in water availability.

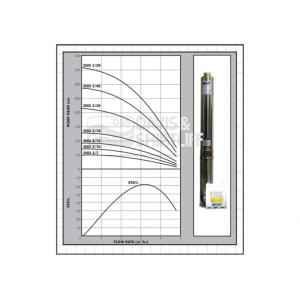

PUMP DATA

Model Motor Voltage (V) Current (A) Istart / I DN(") Dimensions (mm) Weight (Kg)
kW HP A D
DSD 3/7 0.37 0.5 1x240 3.7 4 1ΒΌ 410 717 10
DSD 3/10 0.55 0.75 4.7 517 861 12
DSD 3/13 0.75 1 6.2 568 920 14
DSD 3/18 1.1 1.5 8 673 1065 17
DSD 3/30 2.2 3 15 1047 1564 27
3x415 6 7 1588 25
DSD 3/40 3 4 8 1341 1923 32
DSD 3/50 4 5.5 10 1604 2261 38
Downloads DSD 3 Datasheets
