DQA

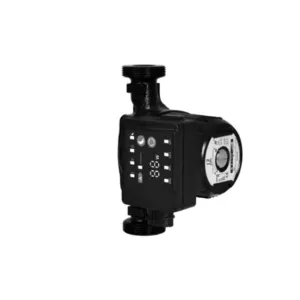

The DAYLIFF DQA variable speed controlled circulator pump is a revolutionary pump designed for hot water circulation in various applications. With its variable speed control, it offers enhanced energy efficiency and precise flow control. Here are applications where the DAYLIFF DQA circulator pump can be used:

1. Heating Systems: The DQA circulator pump is particularly well-suited for heating systems in residential, commercial, and industrial buildings. Its variable speed control allows for optimized flow rates based on the heating demand, ensuring efficient heat distribution and reduced energy consumption.

2. Cooling Systems: This pump can also be used in cooling systems, such as chilled water circulation in air conditioning systems or cooling towers. The variable speed control allows for precise adjustment of flow rates, enabling effective cooling while maintaining energy efficiency.

3. Solar Hot Water Systems: The DQA circulator pump is suitable for solar hot water systems, where it can facilitate the circulation of heated water from solar collectors to storage tanks. The variable speed control ensures that the pump operates at the optimal flow rate to maximize heat transfer and energy utilization from solar sources.

4. Domestic Hot Water Recirculation: In residential or commercial buildings, where quick hot water delivery is desired at faucets and showers, the DQA pump can be used for hot water recirculation. Its variable speed control allows for customized flow rates, ensuring instant hot water availability while minimizing energy losses.

5. Radiant Floor Heating: The DQA circulator pump is well-suited for radiant floor heating systems. It can efficiently circulate hot water through the underfloor pipes, providing comfortable and even heat distribution. The variable speed control enables precise flow adjustments based on the heating requirements of different zones or rooms.

In each application, the variable speed control of the DQA pump allows for energy savings, improved system performance, and greater control over the flow rates. It's important to consult the manufacturer's guidelines and recommendations to properly configure and program the pump based on the specific requirements of the application and to ensure optimal performance and energy efficiency.

MOTOR
The pump is fitted with an integral synchronous permanent-magnet high efficiency inverter controlled motor. The pump should be connected to a suitably rated MCB or fuse.

Enclosure Class: IP42
Insulation Class: F
Voltage: 1x240V

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres
Liquid Temperature: -10° C to +110° C
Max. Ambient Temperature: 10°C - 50° C
Max Operating Pressure: 6bar
Installation: Pumps must be installed with the rotor shaft horizontal and vertical water flow
