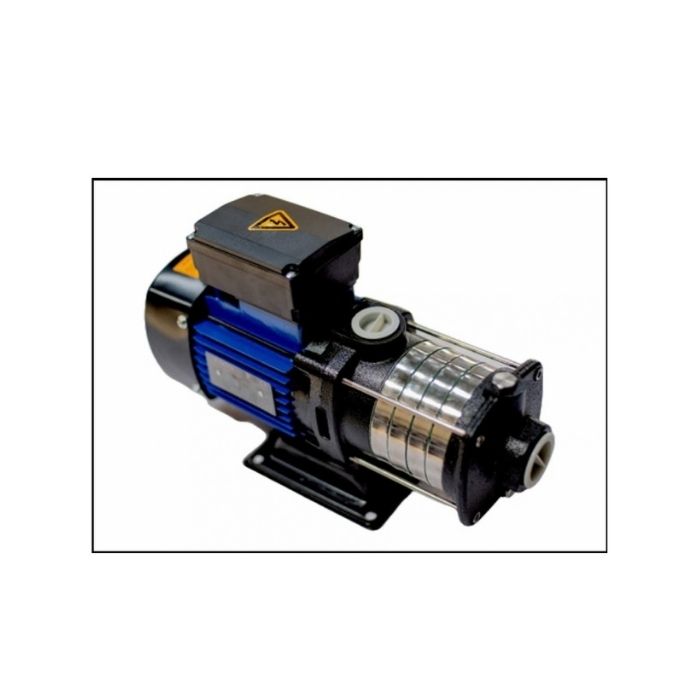

SHLP 20

shlp
shlpshlp20


The add to cart button will appear once you select the values above

Typical Applications

  • Air-conditioningand coolingsystems: circulation for consistent temperature control and machine cooling.
  • Pressure boosting in industrial processes and for domestic and commercial water distribution.
  • Water treatment and purification plant, and boiler feedwater at high pressure.
  • Industrial cleaning and high-pressure washdown duties.
  • Aquaculture, fertiliser metering and agricultural irrigation.
  • Firefighting systems requiring rapid, reliable supply.

Operating Conditions

  • Thin, clean,non-aggressive and non-explosive liquids without solid particles or fibres.
  • Liquid temperature range 0 C to +90 C; maximum ambient temperature +50 C.
  • Maximum inlet pressure 6 bar; maximum operating pressure 10 bar to 40 C, 6 bar to 90 C.

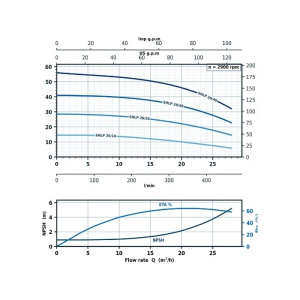

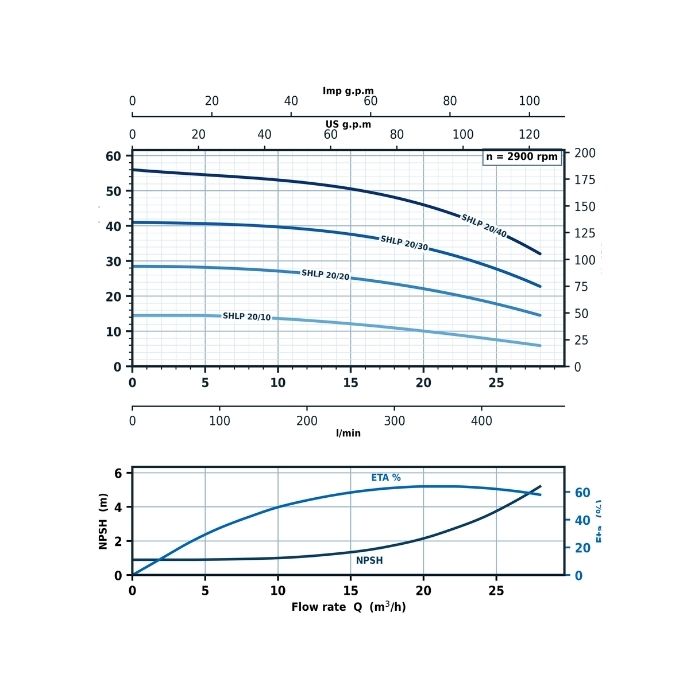

  • Maximum suction lift: read from the NPSH curve, plus a safety margin of 1.0 m.
  • Enclosure class IP54, insulation class F, 2900 rpm.
  • All models in this series share the 20 m3/h hydraulic; the figure after the oblique is the stage group.
  • Non-self-priming; fill the casing and suction line before starting.
Model
 Motor
Voltage
 Current (A)
m
m³/h
rpm
Inch
kg
mm
kW HP In Ist
SHLP 20/10 1.1 1.47 1~ 220-240 V 8.9 40 14.5 28 2900 G1 1/2 34 620x230x290
SHLP 20/20 2.2 2.95 1~ 220-240 V 17.7 80 28.5 28 2900 G1 1/2 34 620x230x290
SHLP 20/30 4 5.36 1~ 220-240 V 32.2 145 41 28 2900 G1 1/2 34 620x230x290
SHLP 20/40 4.4 5.9 1~ 220-240 V 35.4 159 56 28 2900 G1 1/2 34 620x230x290



Product Videos

Datasheet/Downloads SHLP 20 Datasheet
