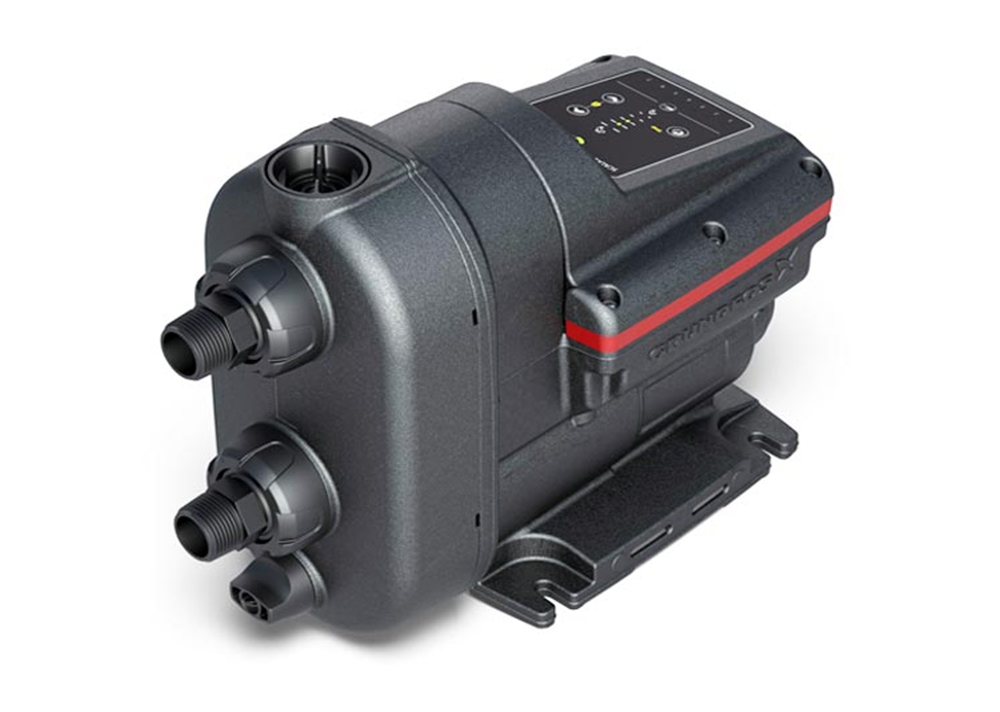

SCALA2

The Grundfos SCALA2 water supply system has several applications in domestic settings due to its compact design and adjustable variable speed technology. Here are some of its main applications:

1. Pressure Boosting: The SCALA2 system is designed to boost water pressure in domestic applications. It ensures a constant pressure delivery irrespective of demand, making it suitable for homes with low water pressure issues. It can be connected to the mains water supply, tanks, or wells to provide consistent and reliable water pressure.

2. Mains Water Supply: In areas where the municipal water supply has low pressure, the SCALA2 system can be installed to boost the water pressure throughout the house. It ensures a steady flow of water for activities such as showering, washing dishes, or doing laundry, improving the overall comfort and convenience of the household.

3. Water Storage Tanks: Many households utilize water storage tanks to collect rainwater or store water from other sources. The SCALA2 system can be connected to these tanks to boost the pressure when using the stored water. This is particularly beneficial for activities like watering the garden, cleaning outdoor areas, or filling swimming pools.

4. Well Water Supply: In areas where the water supply comes from a well, the SCALA2 system can be used to boost the pressure of well water. It ensures a consistent water pressure for domestic use, providing an efficient and reliable water supply to the entire household.

5. Residential Apartments: SCALA2 can also be used in residential apartment buildings where multiple units share a water supply. By installing the system, it ensures that each apartment receives adequate water pressure for various tasks simultaneously, enhancing the comfort and convenience of the residents.

6. Vacation Homes: SCALA2 is an ideal solution for vacation homes or cabins that are not in constant use. It can maintain water pressure even after long periods of inactivity and is capable of self-priming, making it convenient for occasional or seasonal use.

Overall, the Grundfos SCALA2 water supply system is versatile and can be used in various domestic applications where pressure boosting is required. Its adjustable variable speed technology ensures a constant pressure regardless of the water demand, providing reliable and efficient water supply to households.

MOTOR
Scala2 is close coupled to an integral water-cooled motor incorporating current and temperature motor protection. The pump can be connected directly to the mains electrical. The pump can be connected to the mains electrical supply through 10amps or MCB.

Enclosure Class:X4D
Insulation class: F
Voltage:1x240V

OPERATING CONDITIONS
Pumped liquid: Thin, clean non-aggressive liquid
Max. Working Pressure: 10bar
Max. inlet Pressure: 6bar
Liquid Temperature: 45°C
Ambient Temperature: 55°C
