CMBE

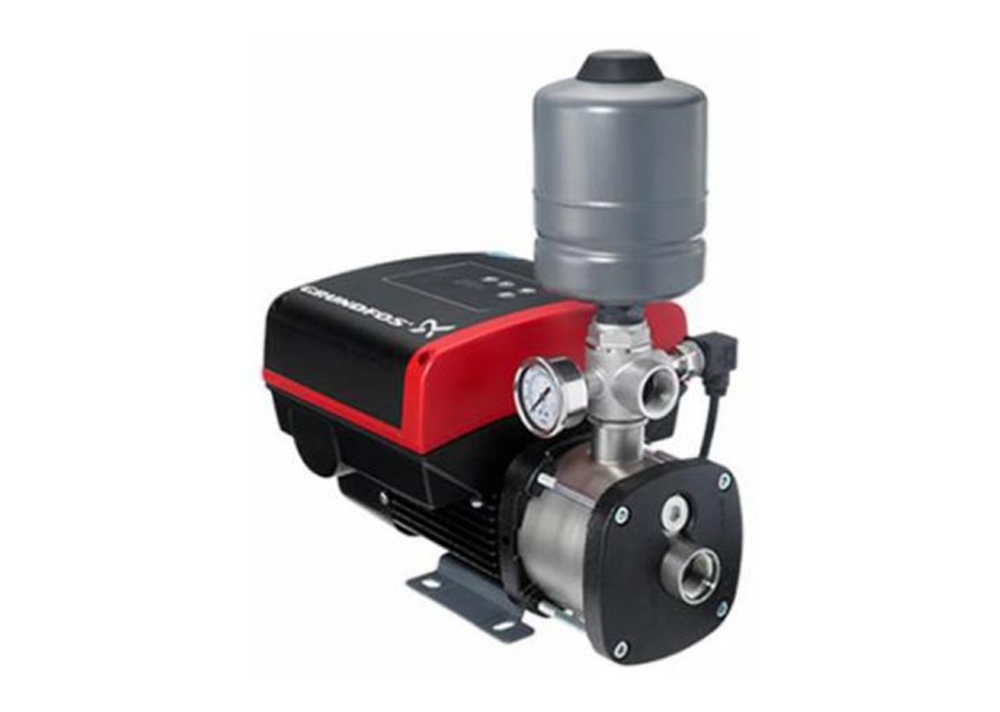

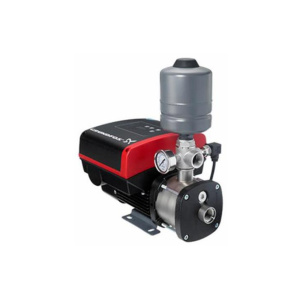

The Grundfos CMBE Booster is a compact water boosting unit designed for water supply applications in both domestic and commercial settings. It is suitable for single and two-booster pump systems. Here are some applications where the CMBE Booster can be used:

1. Domestic Water Supply: The CMBE Booster is ideal for boosting water pressure in residential buildings. It ensures a constant and reliable water supply, providing adequate pressure for showers, faucets, toilets, and other domestic water needs.

2. Commercial Buildings: The CMBE Booster is well-suited for water supply applications in commercial buildings, including offices, hotels, restaurants, and shopping centers. It can boost water pressure to meet the demands of multiple occupants, ensuring consistent water supply for various purposes.

3. High-Rise Buildings: In tall buildings where water pressure decreases at higher floors, the CMBE Booster can be used to maintain adequate water pressure throughout the building. It helps overcome the limitations of gravity-fed water systems and ensures sufficient pressure on upper floors.

4. Irrigation Systems: The CMBE Booster can be employed in irrigation systems for gardens, sports fields, and agricultural applications. It boosts the water pressure, enabling efficient and effective distribution of water for irrigation purposes, ensuring proper hydration for plants and crops.

5. Water Transfer: The CMBE Booster is suitable for transferring water from one location to another. It can be used to pump water from wells, tanks, or other water sources to desired destinations, such as filling reservoirs or transferring water between different parts of a facility.

6. Water Treatment Systems: The CMBE Booster can be integrated into water treatment systems to ensure optimal water pressure during the treatment process. It helps maintain consistent pressure for filtration, purification, or reverse osmosis systems, ensuring efficient and reliable water treatment.

7. Building Renovations: During building renovations or expansions, the CMBE Booster can be installed to accommodate increased water demand. It helps ensure that the existing water supply system can handle additional load and provides consistent pressure for the expanded building areas.

8. Variable Water Demand Environments: The CMBE Booster is suitable for applications where water demand fluctuates. Its integral variable speed controller adjusts the pump output to maintain constant pressure, regardless of changing demand. This makes it suitable for environments where water usage varies throughout the day, such as hotels, schools, or hospitals.

In summary, the Grundfos CMBE Booster is a compact water boosting unit with a variable speed controller, suitable for various water supply applications in domestic and commercial settings. Its robust design, quiet operation, and ability to adapt to varying water demand make it an efficient and reliable choice for maintaining water pressure and ensuring a consistent water supply.

MOTOR
The pump is fitted with high efficiency IE5 Grundfos MGE variable speed motor that incorporates thermal protection against motor overload and dry run protection with auto-restart. The motor can be directly connected to the mains power supply through a 10A FUSE or MCB.

Enclosure Class: IP55
Insulation Class: F
Voltage: 1x240V
Speed: 3600 - 3868rpm

OPERATING CONDITIONS
Pumped Liquids: Thin, clean non-aggressive and non-explosive liquids without solid particles or fibres
Selected Liquid Temperature: 20°C
Liquid Temperature: 0 - 60°C
Max. Ambient Temperature: +55°C
Max. Suction Lift: 1m
Max. Operating Pressure: CMBE 3-62; 7 bar, CMBE Twin; 10bar

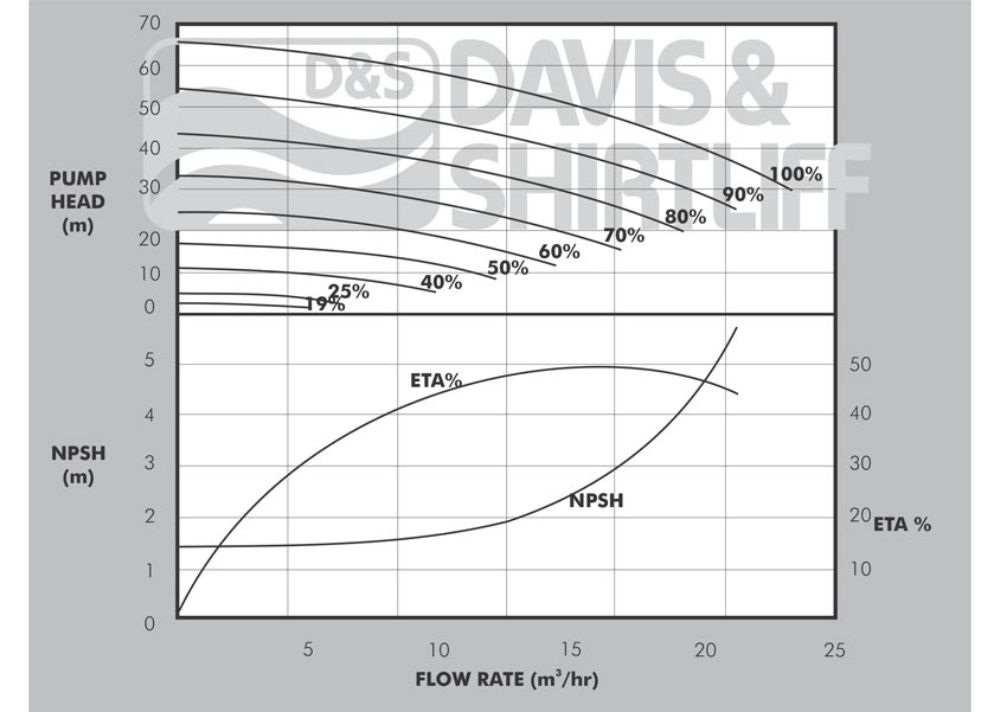

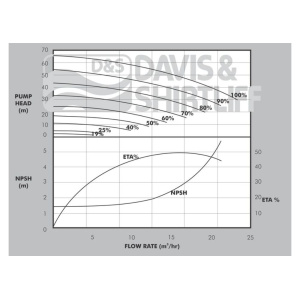

PUMP DATA
