Grundfos UPA

The Grundfos UPA mini circulator pumps are specifically designed for pressure boosting in domestic potable water and hot water supplies. These pumps are suitable for various applications where an increase in water pressure is required. Here are some applications where the UPA mini circulator pumps can be used:

1. Showers: The UPA mini pumps are suitable for boosting water pressure in showers, ensuring a consistent and enjoyable showering experience. They provide increased water flow and improved pressure, enhancing the comfort and performance of the shower system.

2. Taps and Faucets: These pumps can be used to boost water pressure at individual taps and faucets, ensuring a strong and steady flow of water. They can be installed in kitchens, bathrooms, and utility areas to improve water pressure for washing dishes, handwashing, and other household tasks.

3. Water Feeds to Appliances: The UPA mini pumps can be used to enhance water pressure for appliances such as washing machines and dishwashers. They ensure sufficient water flow and pressure for efficient operation, improving the performance of these appliances.

4. Domestic Water Supply Systems: These circulator pumps can be integrated into domestic water supply systems to boost overall water pressure throughout the house. They can help overcome low-pressure issues in the water distribution system, ensuring consistent pressure at all outlets.

5. Small Commercial Applications: The UPA mini pumps can be used in small-scale commercial applications where there is a need for pressure boosting. This includes offices, salons, small shops, and similar environments that require improved water pressure for various purposes.

6. Retrofitting and Upgrading: The UPA mini pumps can be used for retrofitting or upgrading existing water systems that suffer from low water pressure. They can be installed to enhance the performance of the existing plumbing system, improving water pressure and flow.

7. Open Systems: These pumps are designed for use in open systems, where the water supply is not pressurized. They can be employed in situations where there is no existing pressure boosting mechanism or where the pressure needs improvement.

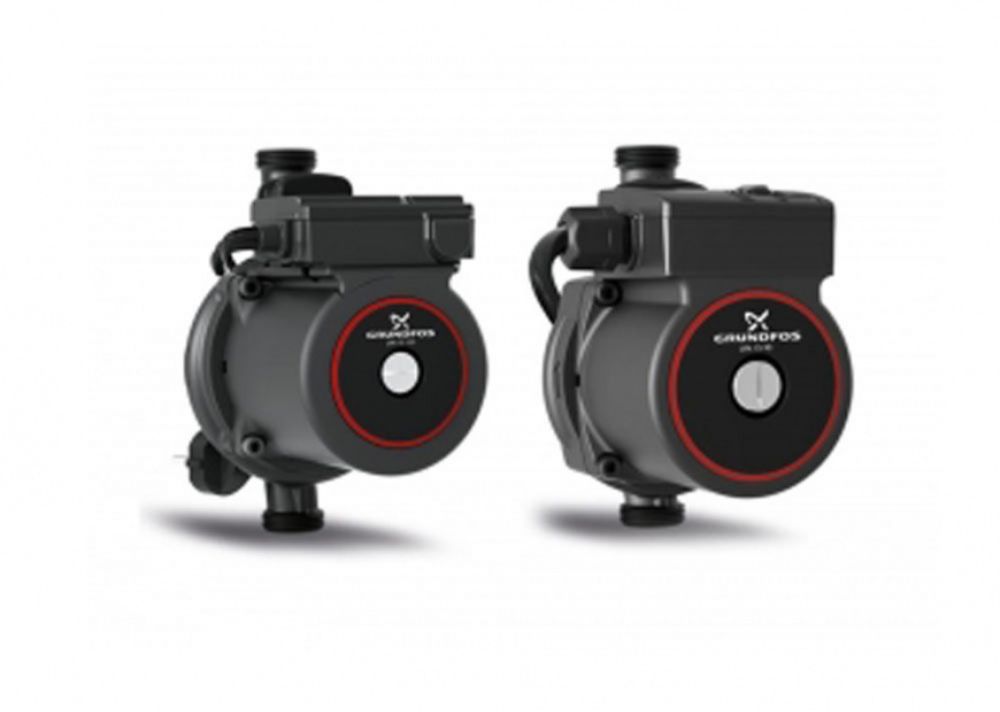

The UPA mini circulator pumps are constructed with stainless steel encapsulated rotor, rotor can, and bearing plate, a polycarbonate impeller, and a cast iron pump housing. They are supplied with a female threaded BSP union connection set, ensuring easy installation and compatibility with plumbing systems.

In summary, the Grundfos UPA mini circulator pumps find applications in pressure boosting for domestic potable water and hot water supplies. They are suitable for showers, taps, water feeds to appliances, domestic water supply systems, small commercial applications, retrofitting and upgrading, and open systems. These pumps offer improved water pressure and flow, enhancing the overall performance and comfort of the water supply system.

OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquids without solids, fibers or mineral oils.
Fluid Temperature Range:+2°C to +95°C.
Max. Ambient Temperature: 40°C
Max. Operating Pressure: 10 Bar
Min. Inlet Pressure: 0.2Bar
Max. Relative Humidity: 95%
Installation: Pumps must be installed with the pump shaft horizontal.
