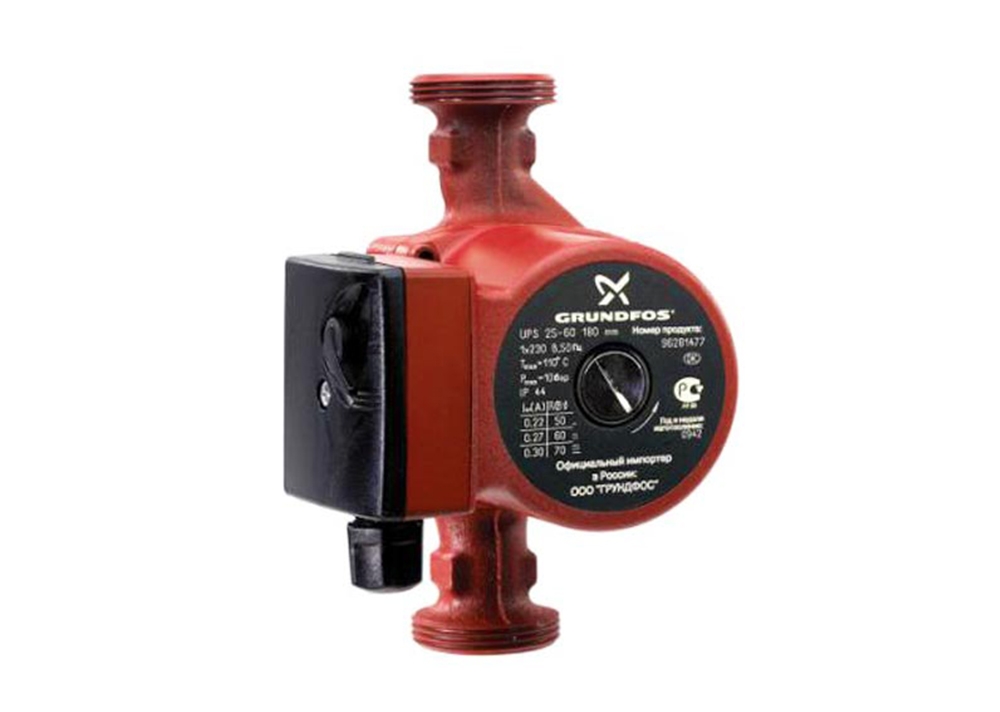

UPS 100 SERIES

The Grundfos UPS 100 series circulator pumps are versatile pumps designed for water circulation in various heating, hot water, cooling, or air conditioning applications. These pumps can be used in both open and closed systems. Here are some applications where the UPS circulator pumps can be used:

1. Heating Systems: The UPS pumps are suitable for water circulation in heating systems, including hydronic heating systems, radiators, underfloor heating, and heat pumps. They ensure efficient and consistent water circulation, maintaining desired temperatures throughout the system.

2. Hot Water Circulation: These pumps can be used for hot water circulation in domestic water supply systems, ensuring quick and consistent hot water delivery to taps and fixtures. They help eliminate waiting time and reduce water wastage.

3. Cooling Systems: The UPS pumps can be employed in cooling applications, such as chilled water systems or cooling towers. They facilitate the circulation of cooled water, ensuring effective cooling in air conditioning systems or industrial processes.

4. Air Conditioning Systems: These circulator pumps can be used in air conditioning systems to circulate water for heat exchange, ensuring efficient cooling or heating as required. They help maintain optimal temperatures and contribute to the overall performance of the HVAC system.

5. Closed Loop Systems: The UPS pumps are suitable for closed loop systems where water circulates within a sealed network, such as closed-loop geothermal systems or closed-loop cooling systems. They provide reliable and efficient circulation, contributing to system performance.

6. Domestic Water Pressure Boosting: In situations where water pressure is insufficient, the UPS pumps can be used to boost water pressure in domestic water supply systems. They help ensure adequate water pressure for showers, taps, and other fixtures.

7. Boiler Systems: These pumps can be integrated into boiler systems to facilitate water circulation, ensuring efficient heat transfer and optimal performance. They contribute to maintaining consistent temperatures and energy efficiency.

8. Industrial Applications: The UPS pumps can be used in various industrial applications where water circulation is required. This includes industrial processes, manufacturing plants, and other applications that involve water transfer and circulation.

The UPS circulator pumps feature a stainless steel rotor can and bearing plate, a polycarbonate impeller, and a cast iron pump housing. These materials ensure durability, corrosion resistance, and efficient performance. The pumps are supplied complete with female threaded BSP union connections, making installation and compatibility with plumbing systems convenient.

The Grundfos UPS circulator pumps are designed for water circulation in heating, hot water, cooling, or air conditioning applications. Their applications include heating systems, hot water circulation, cooling systems, air conditioning systems, closed loop systems, domestic water pressure boosting, boiler systems, and industrial applications. The UPS pumps offer multiple speed settings for flexibility and efficient flow control, while their construction materials ensure reliability and long-lasting performance.

MOTOR
The integral 2-pole asynchronous squirrel-cage motor is designed to operate at three speeds. All motors include a built-in thermal switch which monitors winding temperature and cuts off the power supply in the event of an overload. No remote overloadprotection is required, though the pump must be connected to a suitably rated MCB or fuse.

Power Supply: 1 x 240 V
Enclosure Class: IP44
Insulation Class:  F

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Fluid Temperature Range: -2°C to +110°C. Note the liquid temperature should be higher than the ambient temperature.
Max. Ambient Temperature: 80°C
Max. Operating Pressure: 10bar
Installation: Pumps must be installed with the pump shaft horizontal
