UPS 200 Series

The GRUNDFOS UPS 200 series circulator pumps are specifically designed for water circulation in heating, hot water, cooling, or air conditioning systems that require high water volumes at low pressures. These pumps offer flexibility with three standard models available and options for single or two head units, as well as alternative specifications for cold water and low-pressure installations. Here are some applications where the UPS circulator pumps can be used:

1. Heating Systems: The UPS pumps are suitable for water circulation in various heating systems, including hydronic heating systems, radiant floor heating, and heat pump systems. They ensure efficient water circulation, delivering heat to the desired areas and maintaining consistent temperatures.

2. Hot Water Circulation: These pumps can be used for hot water circulation in domestic water supply systems, ensuring quick and consistent hot water delivery to taps and fixtures. They help reduce waiting time for hot water and prevent water wastage.

3. Cooling Systems: The UPS pumps can be employed in cooling applications, such as chilled water systems, cooling towers, or air conditioning systems. They facilitate the circulation of cooled water, enabling effective cooling and temperature control in the desired areas.

4. Air Conditioning Systems: These circulator pumps play a crucial role in air conditioning systems, ensuring proper water circulation for heat exchange. They help maintain optimal temperatures and enhance the overall performance and efficiency of the HVAC system.

5. Low-Pressure Systems: The UPS pumps are suitable for installations where low water pressure is a concern. They can be used in systems that require higher water volumes at lower pressures, providing the necessary flow rates to meet the system requirements.

6. Commercial Buildings: The UPS circulator pumps find applications in commercial buildings, such as offices, hotels, and shopping centers, where there is a need for efficient water circulation in heating and cooling systems. They contribute to comfort, energy efficiency, and smooth operation of these buildings.

7. Industrial Applications: These pumps can be used in various industrial applications that require water circulation, such as industrial processes, manufacturing plants, or cooling systems for machinery. They ensure efficient cooling and optimal operation of equipment.

The UPS circulator pumps are constructed with AISI304 stainless steel for the impeller and bearing plate, cast iron for the pump housing, and die-cast aluminum for the rotor housing. These materials provide durability, corrosion resistance, and reliable performance in various operating conditions.

In summary, the GRUNDFOS UPS circulator pumps are designed for water circulation in heating, hot water, cooling, or air conditioning systems that require high water volumes at low pressures. Their applications include heating systems, hot water circulation, cooling systems, air conditioning systems, low-pressure installations, commercial buildings, and industrial applications. The UPS pumps offer multiple speed settings for flow control and are constructed with durable materials to ensure long-lasting performance.

MOTOR
The integral 2-pole asynchronous squirrel-cage motor is designed to operate at three speeds. Motors should be connected to mains supply though an MCB and suitably sized DOL starter.

Power Supply: 3 x 415 V
Max. Speed: 2800 rpm
Enclosure Class: IP44
Insulation Class: F

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Fluid Temperature Range: -10°C to +120°C. Note the liquid temperature should be higher than the ambient temperature.
Maximum Ambient Temperature: 40°C
Max. Operating Pressure: 10bar
Installation: Pumps must be installed with the pump shaft horizontal.

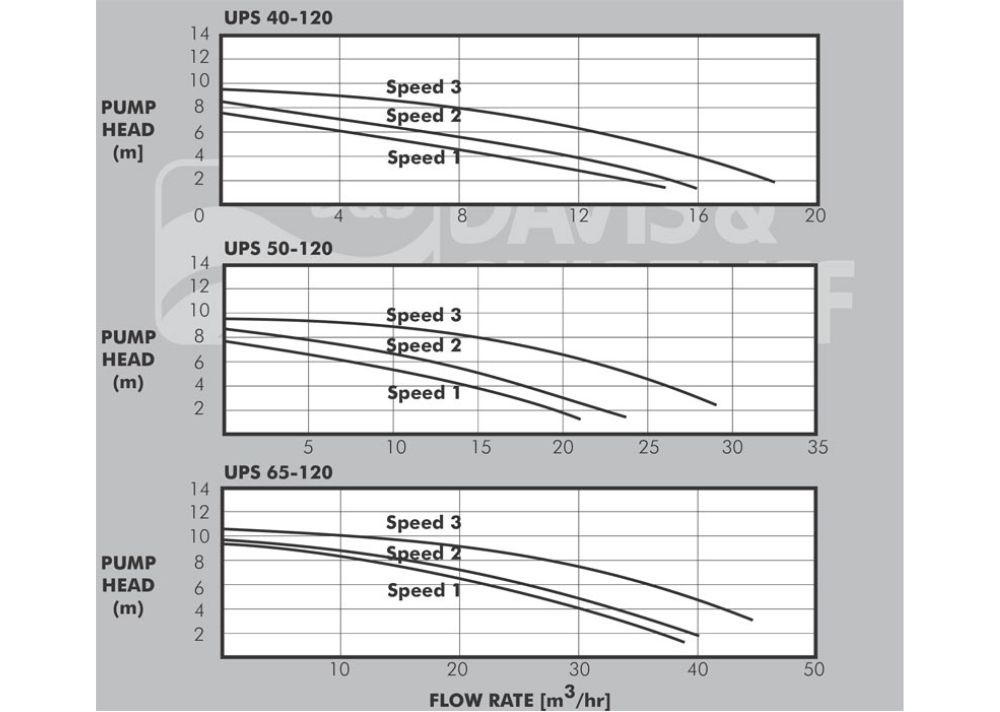

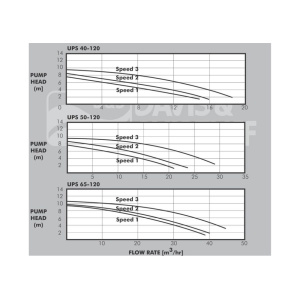

PUMP DATA
