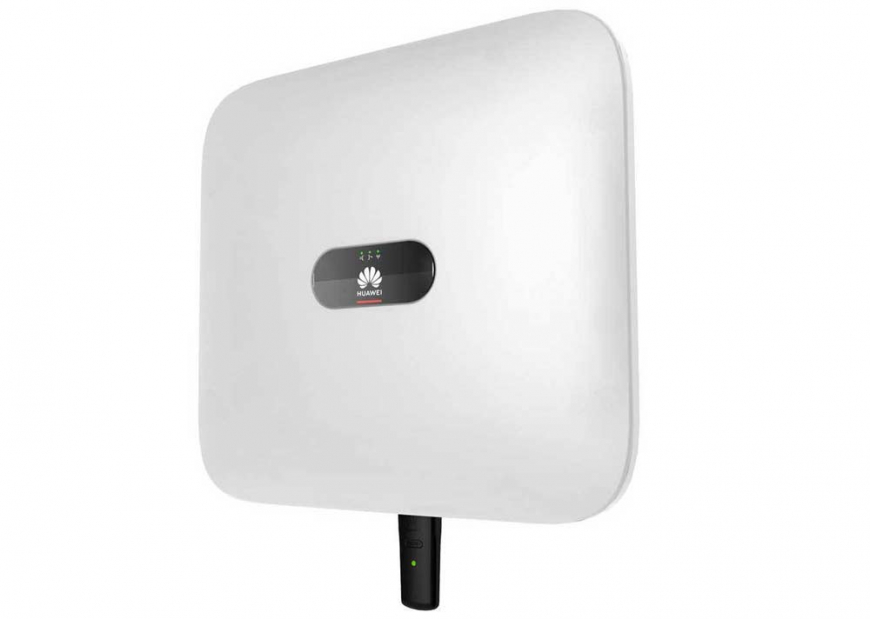

Huawei SUN Series Smart String Grid Connect Inverters are transformerless inverters designed for managing hybrid solar-powered PV/AC mains power supply installations. These inverters play a crucial role in converting the DC power generated by solar panels into AC power for use in residential, commercial, and industrial applications. Here are some applications where Huawei SUN Series inverters can be applied:
1. Residential Solar Power Systems: Huawei SUN Series inverters are well-suited for residential solar power installations. They convert the DC power generated by rooftop solar panels into usable AC power for household appliances, lighting, and other electrical devices. The inverters prioritize the use of solar power and supplement it with AC mains power if necessary.
2. Commercial and Industrial Solar Installations: These inverters are applicable in larger-scale commercial and industrial solar systems. They convert PV-generated DC power to AC power, suitable for powering equipment, machinery, lighting, and other electrical loads in commercial buildings, warehouses, factories, or industrial facilities.
3. Hybrid Power Systems: Huawei SUN Series inverters are utilized in hybrid power systems that combine solar power with AC mains power. These systems ensure uninterrupted power supply by prioritizing the use of solar power and seamlessly switching to AC mains power when solar generation is insufficient to meet the load demand.
4. Grid-Tied Solar Installations: Huawei SUN Series inverters are commonly used in grid-tied solar installations. They convert solar-generated DC power to AC power for consumption within the premises. Any excess power can be fed back into the grid, allowing for net metering and potential energy credits.
5. Remote Monitoring and Control: Huawei provides WIFI monitoring devices and the Huawei Smartlogger for monitoring and controlling the power to the grid. These tools enable users to monitor the performance and status of the solar power system remotely, ensuring efficient operation and troubleshooting capabilities.
6. Power Scalability: Huawei SUN Series inverters are designed to be connected in parallel, allowing for limitless power output. Dedicated solar arrays can be connected to individual inverters, enabling the creation of solar power systems of various sizes, from small residential installations to large-scale commercial or industrial projects.
7. Solar Farm Installations: These inverters are applicable in solar farm installations, where multiple Huawei SUN Series inverters can be connected in parallel to manage large arrays of solar panels. This enables efficient power conversion and management on a larger scale.
These applications demonstrate the versatility of Huawei SUN Series Smart String Grid Connect Inverters in managing hybrid solar-powered PV/AC mains power supply installations. Their efficient power conversion, prioritization of solar power, scalability, and remote monitoring capabilities make them a suitable choice for a range of residential, commercial, and industrial applications.
TECHNICAL SPECIFICATIONS
Enclosure Class: IP65
Operating Temp Range: -25° to + 60°C
Night time Power Consumption: <5.5W
| Model |
SUN 2000 3KTL-L1 |
SUN 2000 3KTL-M1 |
SUN 2000 5KTL-M1 |
SUN 2000 10KTL-M1 |
SUN 2000 15KTL-M2 |
SUN 2000 20KTL-M3 |
SUN 2000 30KTL-M3 |
SUN 2000 36KTL-M3 |
SUN 2000 50KTL-M0 |
SUN 2000 60KTL-M0 |
SUN 2000 100KTL-M0 |
SUN 2000 115KTL-M2 |
SUN 2000 330KTL-H1 |
Max. Output & Rated
Output Power |
3,300 |
3,300 |
5,500 |
10,000 |
15,000 |
|
30,000 |
36,000 |
50,000 |
60,000 |
100,000 |
115,000 |
330,000 |
| Input AC Voltage, VAC |
1x240 |
3x415 |
| Max. PV Input Power, W |
4,500 |
4,500 |
7,500 |
15,000 |
22,500 |
30,000 |
N/A |
| Max. PV Input Voltage, VDC |
600 |
1,100 |
1,080 |
1,100 |
1,500 |
Operating Voltage Range,
VDC |
90-560 |
140-980 |
160-950 |
200-1000 |
500-1500 |
| Rated Input Voltage, VDC |
360 |
600 |
600@400Vac |
1080 |
| Start Voltage, VDC |
100 |
200 |
550 |
| Number of MPPT Inputs |
2 |
8 |
12 |
10 |
6 |
| Maximum Input Current per MPPT, A |
12.5 |
11 |
22 |
26 |
22 |
26 |
30 |
65 |
| Maximum Output Current, A |
15 |
5.1 |
8.5 |
16.9 |
25.2 |
33.5 |
43.3 |
52 |
72.2A @400V |
95.3A @400V |
160.4@400V |
160.0@400V |
216.6A |
| Rated Output Voltage, Vac |
240V |
230Vac/400Vac,3W/N+PE |
400V/480V, 3W+(N)+PE |
800V,3W+PE |
| Backup Power Output |
Yes, via Back-up Box |
N/A |
| Peak Efficiency, % |
97.3 |
98.3 |
98.1 |
98.2 |
98.3 |
98.7 |
98.6 |
99 |
| Dimensions (DxWxH) mm |
365x365x156 |
525x470x146.5 |
525x470x262 |
640x530x270 |
1075x555x300 |
1035X700X365 |
1048X732X395 |
| Net Weight, Kgs |
12 |
17 |
25 |
43 |
74 |
90 |
93 |
112 |
