DS 2



Application

The DAYLIFF DS submersible pumps, with their multistage centrifugal impeller design and stainless steel construction, are specifically designed for borehole supply applications. Here are some applications where these pumps can be used:

1. Borehole Water Supply: The DS pumps are ideal for extracting water from boreholes and supplying it for various purposes. They can provide a reliable and consistent water source for domestic use, irrigation, livestock watering, and other applications that require water from underground sources.

2. Residential Water Supply: These pumps can be installed in boreholes to provide water supply to residential properties. They ensure a reliable source of water for drinking, cooking, bathing, and other household needs, particularly in areas where access to municipal water supply is limited.

3. Agricultural Irrigation: The DS pumps are well-suited for irrigation purposes in agricultural settings. They can efficiently deliver water from boreholes to irrigate crops, ensuring optimal hydration for plants and promoting healthy growth and higher yields.

4. Community Water Projects: These pumps can be employed in community water projects that aim to provide reliable water supply to multiple households or small communities. They can be installed in boreholes to ensure a sufficient and sustainable water source for the community's needs, including drinking water, sanitation, and irrigation.

5. Commercial and Industrial Water Supply: The DS pumps can be utilized in commercial and industrial applications that require a reliable and efficient water supply from boreholes. They can be used for processes, cooling systems, or as a backup water supply for various manufacturing and production operations.

Proper installation, regular maintenance, and monitoring are crucial to ensure the optimal performance and longevity of the submersible pump in each application.

PUMP DATA

Model Motor Start Current (A) Start Current (A) Dimensions (mm) Weight (kg)
C B A
kW HP 1x240 V 3x415V 1x240 3x415V 1x240 V 3x415 V 1x240 V 3x415V 1x240V 3x415V
DS 2/9 0.37 0.5 3.5   9   356 325   681   10
DS 2/13 0.55 0.75 4.3   15   440 365   805   12
DS 2/18 0.75 1 6.3   20   545 375   920   14
DS 2/23 1.1 1.5 8.5 3.6 25 16 650 395 375 1045 1025 15 14.4
DS 2/33 1.5 2 10.8 4.6 35 20 883 440 395 1323 1278 21 19.3
DS 2/48 2.2 3 14 6.3 45 33 1198 558 440 1756 1638 29 25
DS 2/65 3 4   7.9   45 1565   558   2123   41

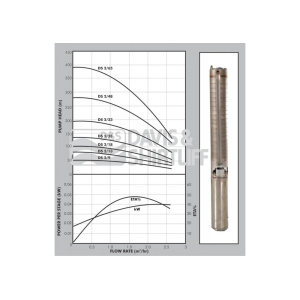

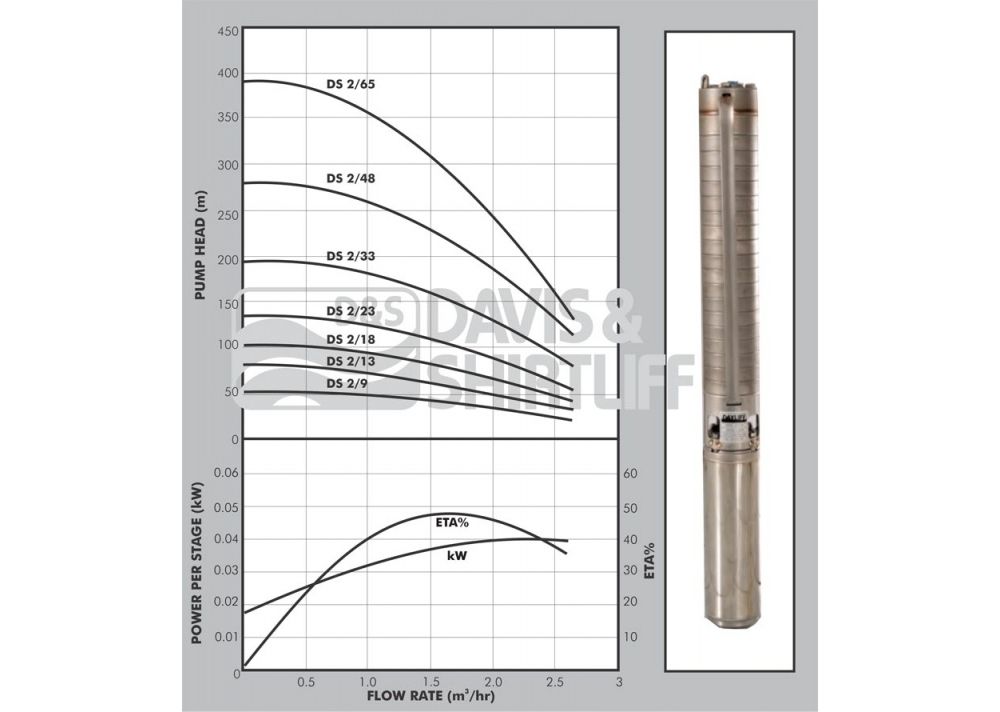

Downloads DS 2 Datasheet
