SDP

Application

• Residential water supply: The pump ensures a consistent and reliable water supply for drinking, cooking, and bathing in individual apartments or houses.
• Garden irrigation: The pump efficiently waters plants, lawns, and landscapes in garden irrigation systems.
• Small-scale agriculture: The pump supplies water for livestock or irrigates small fields and crops.
• Water transfer: The pump moves water from one location to another, such as from a storage tank to a different container or from a well to a storage tank.
• Pressure boosting: The pump increases water pressure in domestic or commercial systems, ensuring sufficient pressure for showers, taps, and other water outlets.
• Fountain and pond circulation: The pump circulates water in fountains or ponds, enhancing aesthetic appeal and maintaining water quality.
• Light industrial applications: The pump supplies water for machinery cooling systems or small-scale industrial processes.

Motor

• Two-pole induction motor(n=2850 r.p.m)
• Insulation Class B
• Protection IP44
• Continuous service S1
• Thermal protector
• Single-phase 220V/50Hz, 60Hz if request

OPERATING CONDITIONS

• Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres
• Max. Fluid Temperature: +60°C
• Max. Ambient Temperature: +40°C
• Max. Suction Lift: 7m at sea level
• Enclosure Class: IP44
• Insulation Class: F
• Speed: 2900rpm
• Voltage:1x240V

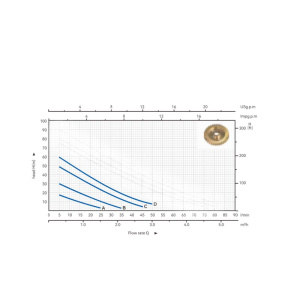

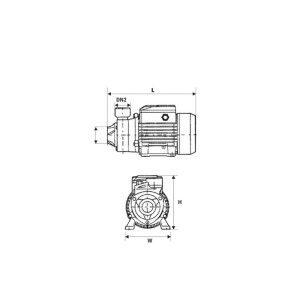

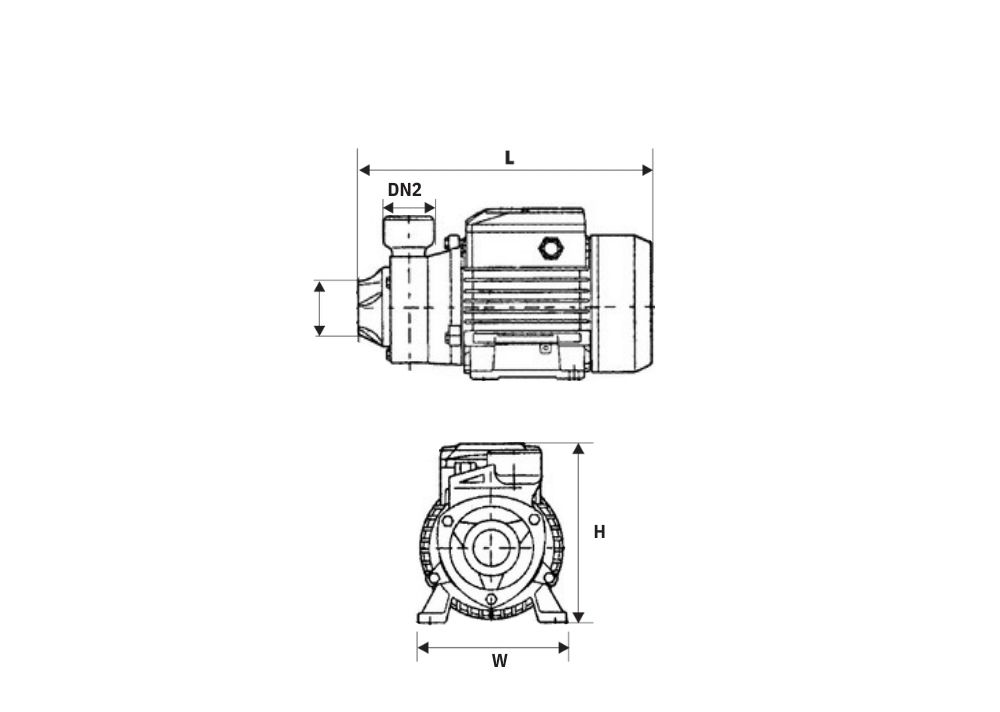

PUMP SPECIFICATIONS
