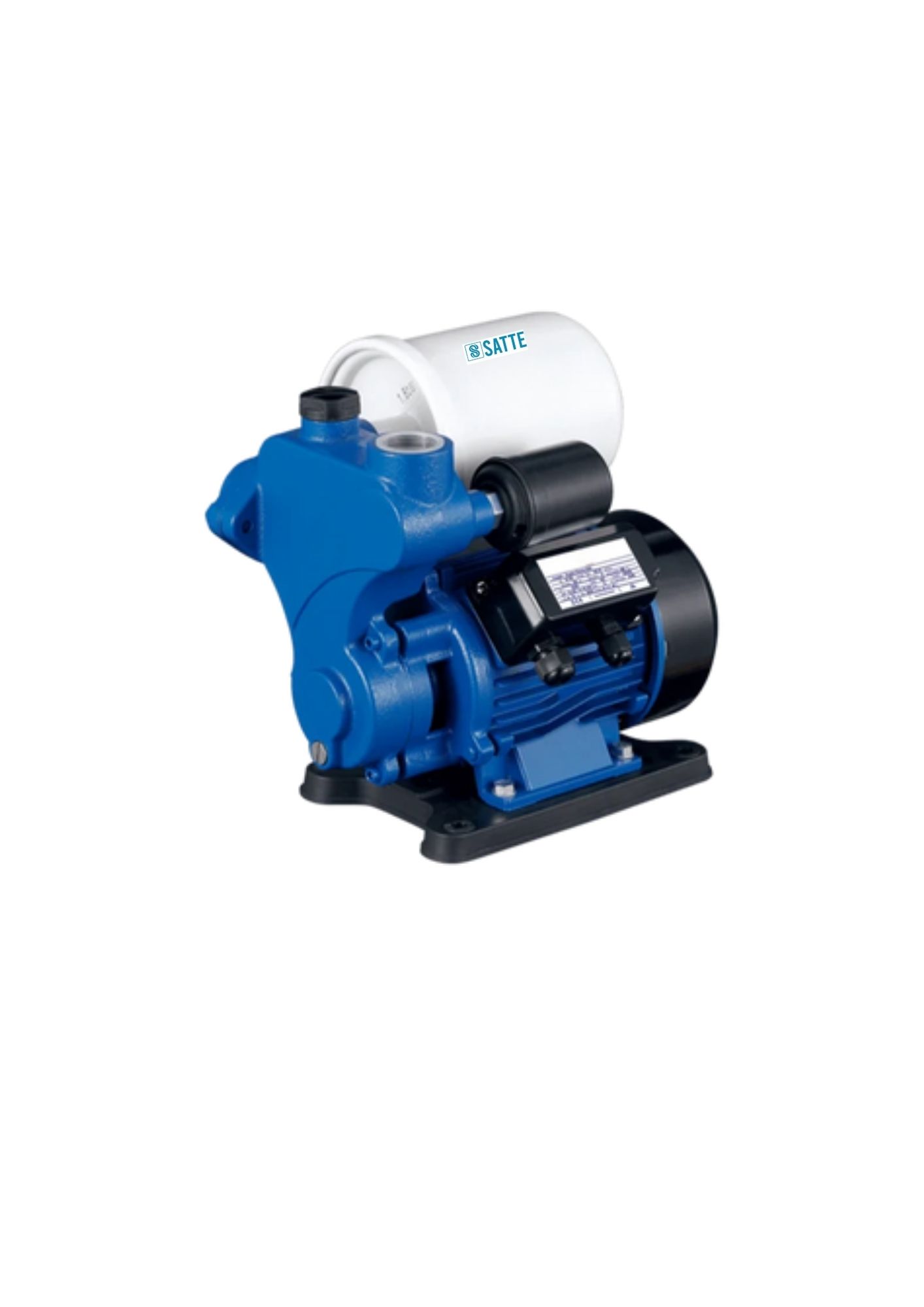

SDP A



Applications

  • The SDP pump is ideal for various small-scale domestic water supply applications, ensuring versatile use. Equipped with high-quality copper windings, the pump's peripheral design includes a high-capacity motor, ensuring efficient and reliable performance.

  • Stainless steel housing inserts are incorporated to facilitate free impeller movement, enhancing the pump's durability and longevity. They are easy to use and are economical

  • The close-coupled configuration of the pump with TEFC electric1 motors ensures a reliable and continuous operation for sustained water supply needs.

  • To safeguard against electrical overload, the motors are equipped with a thermal cutout, enhancing the safety and longevity of the pump.

  • The pump's user-friendly design allows for direct connection to the mains power supply through a 10A fuse or MCB, streamlining installation and operation.

Operating Conditions

  • Liquid temperature up to 60℃
  • Ambient temperature up to 40℃
  • Total suction lift up to 9m



Technical Data



  Model Motor Current (A) Dimensions(mm) Weight(kg)
(kW) HP L W H
A SDP 50 A 0.25 0.34 2 285 220 280 6.8
B SDP 60 A 0.37 0.5 2.5 285 220 280 7.3
C SDP 75 A 0.75 1 5.2 290 232 290 10.3



Downloads SDP A Datasheet
