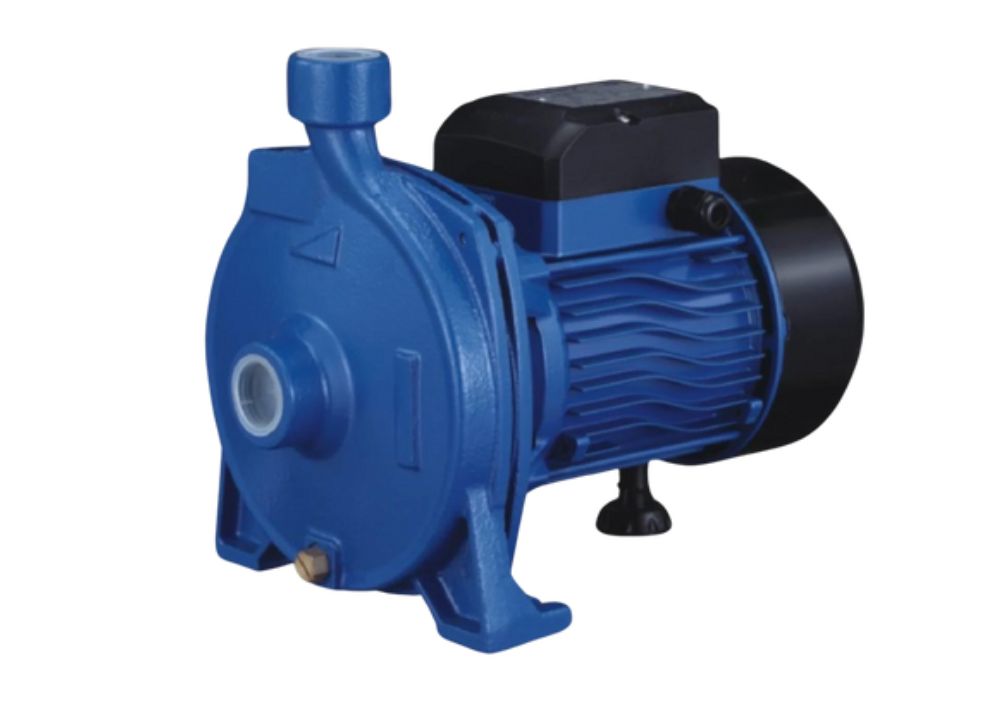

SCPM



Application

  • Domestic water distribution in households, ensuring reliable water supply for daily needs like drinking and bathing.

  • Ideal for small to medium pressure sets, facilitating efficient water flow in residential and commercial buildings.

  • Facilitates liquid transfer operations, aiding in tasks such as filling tanks, containers, or reservoirs with ease.

  • Enables efficient irrigation of gardens and allotments, ensuring plants receive adequate water for healthy growth.

  • Suited for enclosed or sheltered environments, protecting the pump from adverse weather conditions and prolonging its lifespan.

  • Designed for handling clean water efficiently, making it suitable for various applications where purity is essential.

  • Supports civil water distribution systems, contributing to the supply of water in urban and rural areas.

Motor

  • Two-pole induction motor(n=2850 r.p.m)
  • Insulation Class B
  • Protection IP44
  • Continuous service S1
  • Thermal protector for single phase
  • Single-phase 220V/50Hz
  • Three-phase 380V/50Hz

Operating Conditions

  • Liquid temperature up to 60℃
  • Ambient temperature up to 40℃
  • Total suction lift up to 8m

Component Construction

  • Pump body: Cast iron
  • Pump support: Cast iron
  • Motor housing: Aluminum
  • Impeller: Brass
  • Motor shaft: Carbon steel
  • Mechanical seal: Ceramic/Graphite (0.5HP), SIC/Graphite
Model
Motor Dimensions(mm)
Weight(kg)
kW HP Current (A) L W H DN1(") DN2(")
SCPM 130 0.37 0.5 2.5 270 190 240 1 1 8.5
SCPM 158 0.75 1 5.2 305 190 260 1 1 14
SCPM 170 1.1 1.5 7 346 230 293 1.5 1.5 21
SCPM 190 1.5 2 10 380 265 325 1.25 1 21



Downloads SCPM Datasheet
