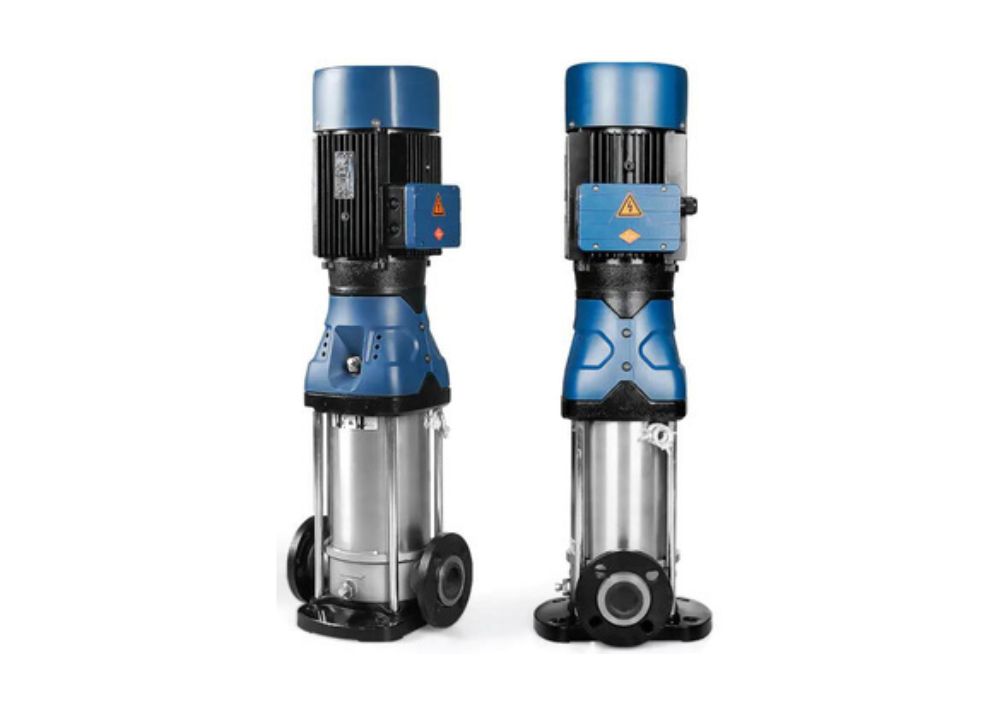

SAR 20

Application

•  Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems.
•  High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
•  Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
•  Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
•  Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.
•  Pressure boosting - The pump can enhance water pressure in sys1t0e1ms where higher pressures are required, ensuring consistent waterflow.
•  Corrosive environments - The pump's construction with AISI 316 stainless steel makes it suitable for pumping highly mineralized and corrosive water, making it applicable in environments with challenging water quality.
• High-temperature liquids - With a liquid temperature range of -15°C to +120°C, the pump is suitable for applications involving liquids at elevated temperatures.
• Commercial and Industrial Installations

Operating Conditions

• Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
• Liquid Temperature Range: -15°C to +120°C
• Maximum Ambient Temperature: +50°C
• Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
• Maximum Operating Pressure: Up to 11kW - 16bar, other - 25bar
• Maximum Inlet Pressure: DIN20-3 -8bar, DIN 20-5 to 17 - 10bar

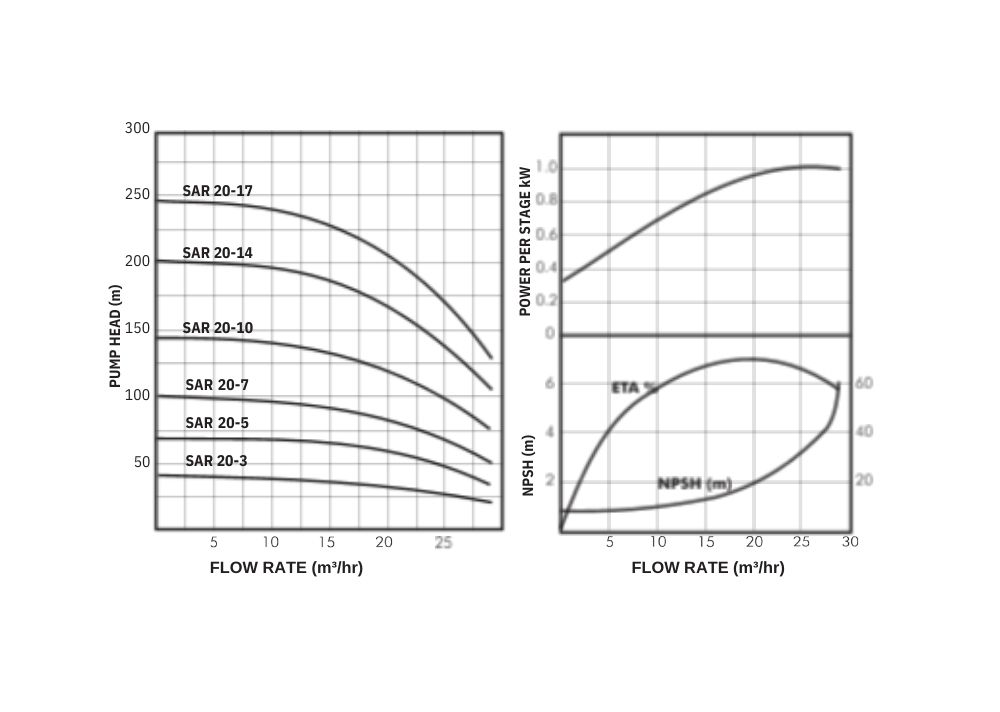

Technical Data
