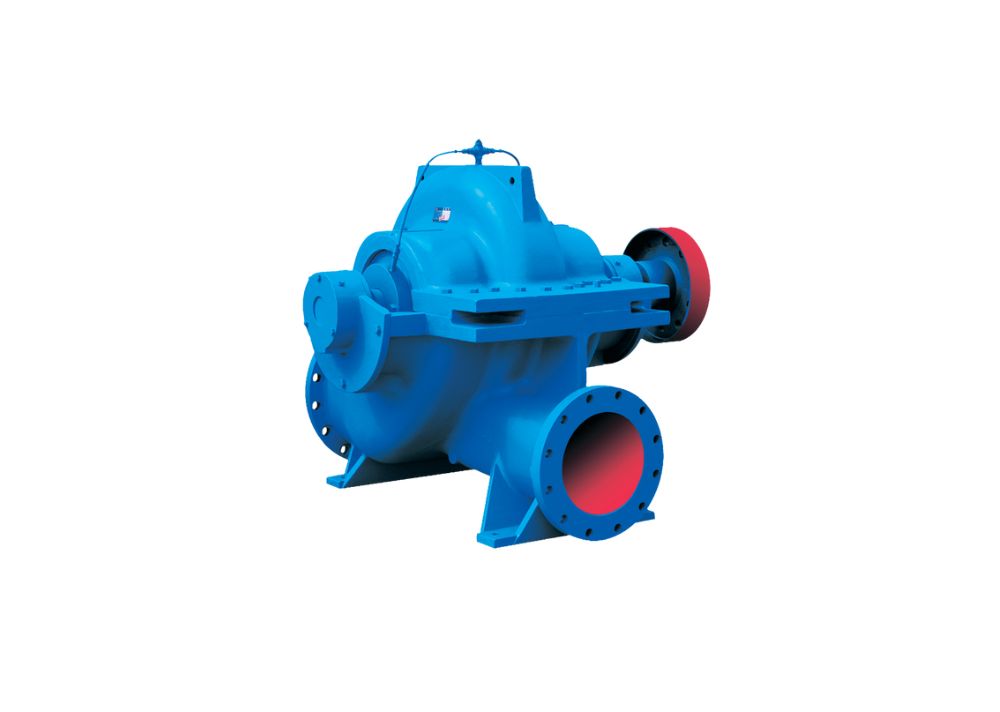

SSCLN-500

Satte SSCLN 500 split casing pumps are for high flow
applications in municipal water supply, irrigation,
industry and air conditioning. Features include a double
suction arrangement, stiffened pump casing, compact
shaft for extended service life and internal cooling to the
inner seal housing, the option of gland packing or
mechanical seal being available.

Typical Applications

• Waterworks- Efficiently supply clean water to municipal water distribution systems.
• Building Water Supply- Ensure consistent water flow for residential and commercial buildings.
• Air Conditioning Circulating Water- Maintain optimal temperature control in HVAC systems.
• Hydraulic Irrigation- Facilitate irrigation in agricultural fields and green spaces.
• Industrial Water Supply Systems- Provide water for industrial processes and manufacturing operations.
• A double suction arrangement, stiffened pump casing, compact shaft for extended service life and internal cooling to the inner seal housing
•

Operating Conditions

• Flow range- 65~5220 m³/h
• Head range- 12~278 m.
• Rotating speed- 740rpm 985rpm 1480rpm 2960 rpm
• Voltage- 380V 6kV or 10kV.
• Pump inlet diameter：DN 125 ~ 600 mm;
• Medium temperature-≤80
• (NPSHr/m) : 10
• Speed (r/min) : 1480
• Pump Body: HT250 or Optional Materials
• Pump Cover: HT250 or Optional Materials
• Impeller: High-Efficiency Design

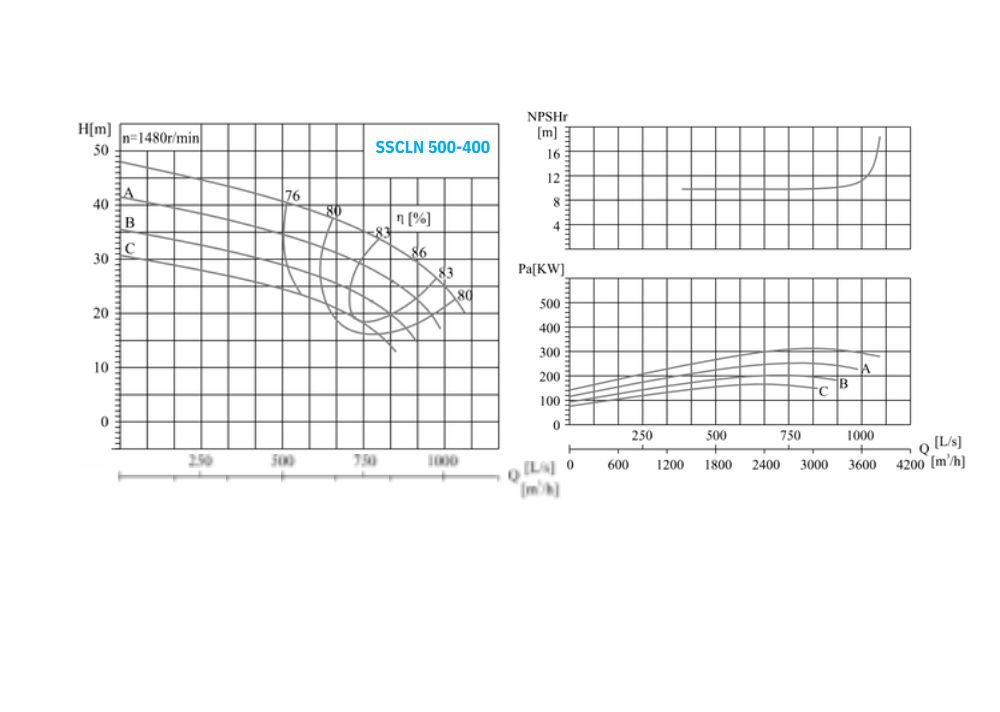

Technical Data
