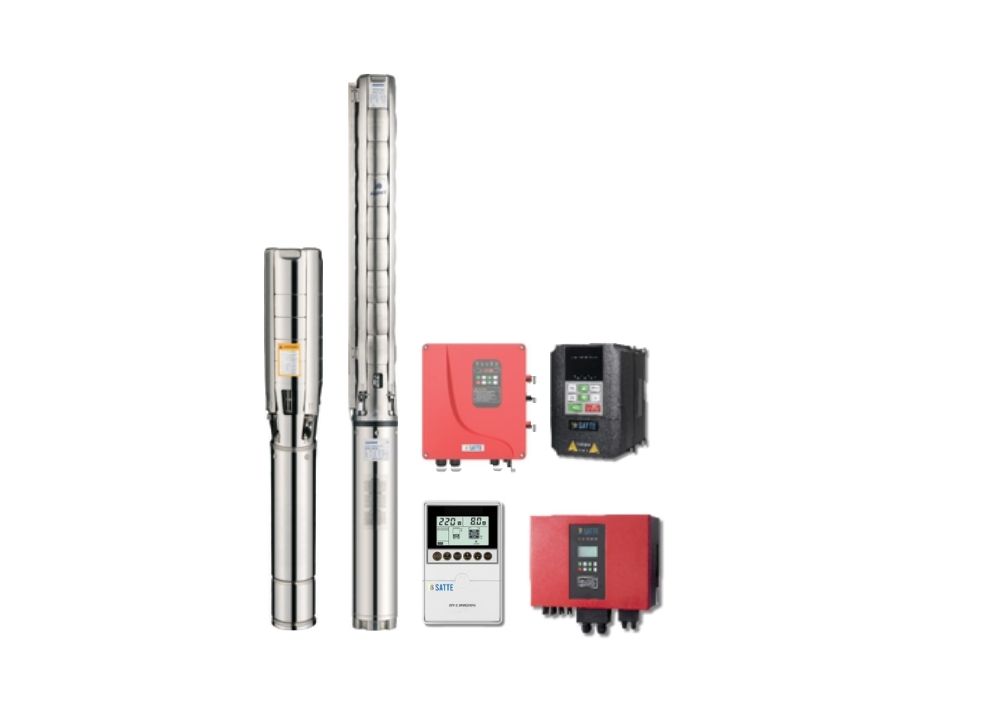

SSP 30

Typical Applications

Boreholes and Wells: Deep extraction of non-aggressive liquids up to 300m depth.
Water Supply Systems: Reliable high pressure water extraction for domestic, commercial and agricultural use.
Irrigation Systems: Efficient water transportation for irrigation purposes in fields and gardens.
Industrial Applications: Corrosion resistant pump for water transfer in various industrial processes.
Ground water Management: Effective extraction of water from significant depths for control and prevention.
Mining and Construction: Dewatering solution for removing water from underground mines and excavations.

Operating Conditions

Pumped Liquid: Thin, clean chemically non-aggressive liquids without solid particles or fibres.
Max. Liquid Temperature: +40°C
Max. Water Depth: 300m
Min. Borehole Diameter: 200m
Enclosure Class : IP68
Insulation Class: F
Voltage: 3x415V
Speed:2900rpm

Motor

Technical Data

Model	Motor		Full Load Current (A)	Voltage v	Dimensions (mm)				Weight (kg)	Recommended SATTE Controller (kW)
Model	KW	HP	Full Load Current (A)	Voltage v	A	B	C	E	Weight (kg)	Recommended SATTE Controller (kW)
SSP 30-6	5.5	7.5	12.2		1567	765	802	147	65.8	7.5
SSP 30-8	7.5	10	16.5		1750	765	985	142	74.9	11
SSP 30-14	11	15	28.5		2447	925	1522	142	103.8	15
SSP 30-16	15	20	28.5		2687	985	1702	142	114.3	18
SSP 30-20	18.5	25	33		3102	1040	2062	142	127.9	22
SSP 30-22	22	30	48	380	3357	1115	2242	142	140	30
SSP 30-27	26	35	57		3882	1190	2692	142	157.3	37
SSP 30-29	26	35	65		4062	1190	2872	142	160.9	37
SSP 30-34	30	40	65		4587	1265	3322	142	178.2	37
