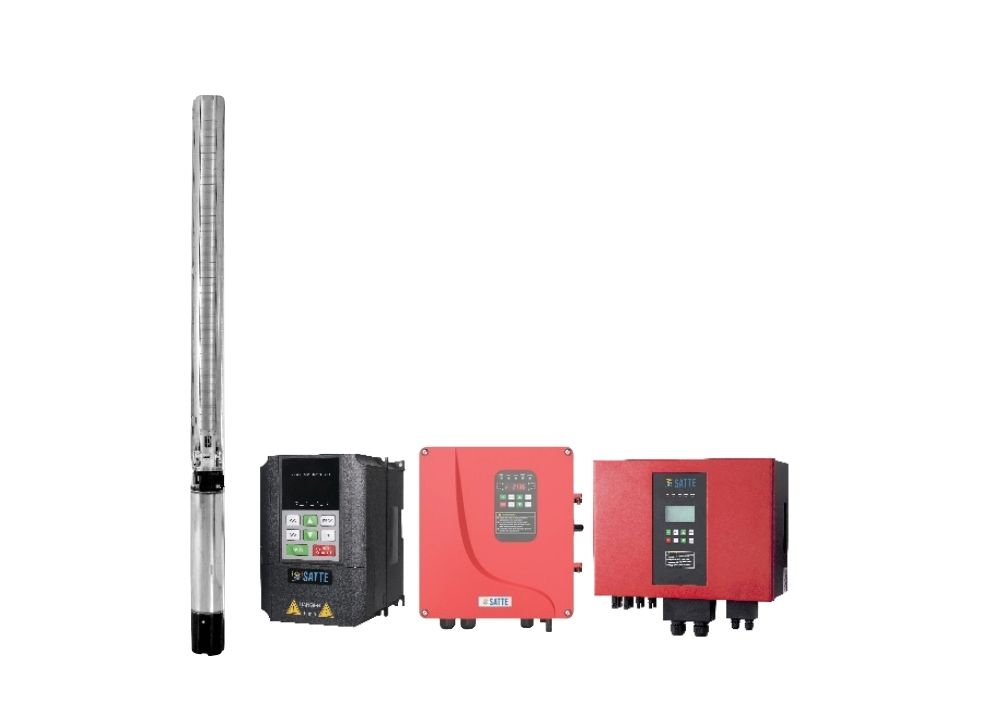

SSP 46

ssp_46

Typical Applications

Circulation or boosting for clean water, demineralized water.
Water supply, irrigation systems.
Powered by electricity or solar energy.
Water boosting.
Other industrial application.
Come in different sizes and capacities to fit various applications

Operating Conditions

Pumped Liquid: Thin, clean chemically non-aggressive liquids without solid particles or fibres.
Max. Liquid Temperature: +30°C
Max. Water Depth: 300m
Min. Borehole Diameter: 200m
Enclosure Class : IP68 Insulation
Class: F Voltage: 3x415V
Speed:2900rpm

Technical Data

Model	Motor		Full Load Current (A)	I Start/I	Dimensions (mm)				Weight (kg)	Recommended SATTE Controller (kW)
Model	kW	HP	Full Load Current (A)	I Start/I	A	B	C	E	Weight (kg)	Recommended SATTE Controller (kW)
SSP 46-5	7.5	10	18.5	4.4	1495	660	835		62	11
SSP 46-7	11	15	26	4.8	1791	730	1061		74	15
SSP 46-10	15	20	34.5	5.0	2185	785	1400		86
SSP 46-12	19	25	42	5.5	2486	860	1626	149	99	22
SSP 46-15	22	30	47.5	5.4	2885	920	1965		111	30
SSP 46-17	26	35	56	4.9	3100	1157	2191		120	37
SSP 46-19	30	40	63.5	4.7	3467	1050	2417		133	48

Downloads SSP 46 Datasheet
