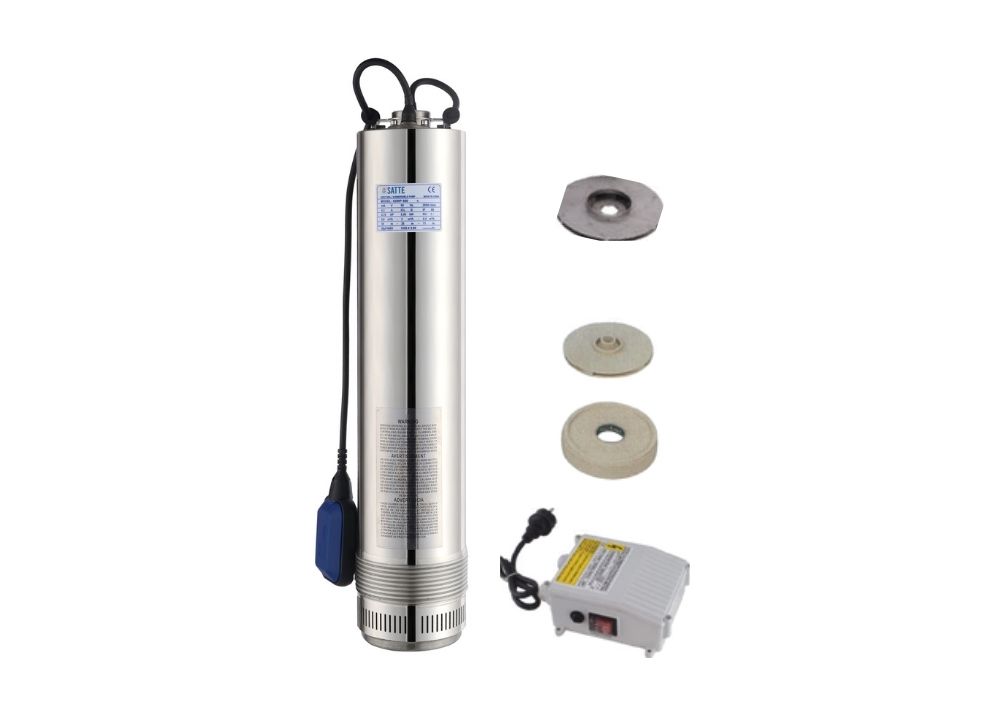

SSWP

sswp

Typical Applications

For water supply from wells or reservoirs
For domestic use, for civil and industrial application
For Garden use and irrigation

Operating Conditions

Maximum fluid temperature up to +35°
Maximum sand content:0.15%
Minimum well diameter:130mm

Motor and Pump

Renewable motor
Single-phase:220V/50Hz
Three-Phase:380V/50Hz
Equip with start control box or digital auto-control box
It's available to equip with floating switch

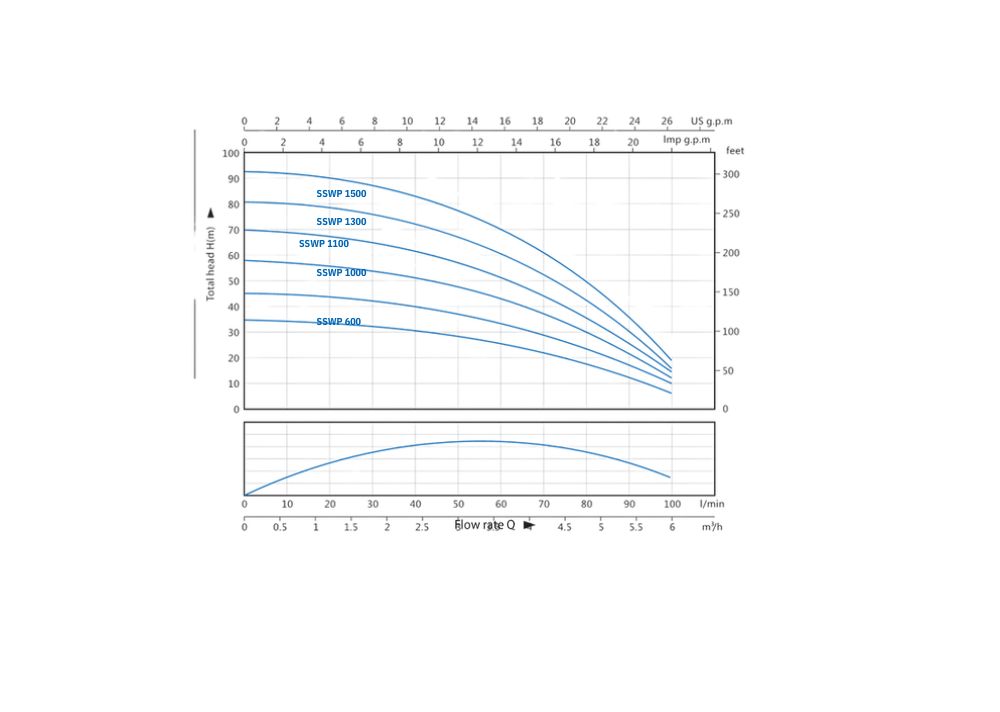

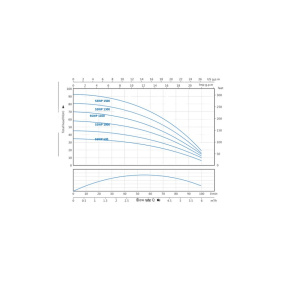

Curve tolerance according to ISO 9906101
Enclosure Class: X8
Insulation Class: B
Voltage: 1x240V
Speed: 2900rpm

Technical Data

Model	Motor		Max Particl e Size, mm	Voltage (V)	Max Current (A)	Outlet (")	Dimension s (mm)		Weight (kg)
Model	KW	HP	Max Particl e Size, mm	Voltage (V)	Max Current (A)	Outlet (")	H	W	Weight (kg)
SSWP 600	0.55	0.75	1	1x240	4.3	538	538	128	15
SSWP 1000	0.95	1.25		1x240	6.2	577	577		18
SSWP 1100	1.1	1.5		1x240
SSWP 12OO	0.92	1.2		1x240	6.2	577	577		18
SSWP 1300	1.3	1.75	1.5	1x240	7.6	577	621		21
SSWP 1500	1.5	2	1	1x240	8.7	577	621		26

Downloads SSWP Datasheet
