Satte SGP 800 S



Typical Applications

  • Power Plants: Providing backup power during outages or peak load periods.
  •  Construction Sites: Supplying electricity to remote or temporary sites where grid power is unavailable.
  •  Hospitals and Medical Facilities: Ensuring continuous power supply to critical equipment and services.
  •  Data Centers: Maintaining uninterrupted power for servers and networking equipment.
  •  Manufacturing Plants: Supporting production processes during power failures.
  •  Mining Operations: Delivering power to remote mining sites and heavy machinery.
  •  Commercial Buildings: Serving as a standby power source for office buildings, malls, and other commercial  establishments.
  •  Telecommunication Centers: Keeping communication systems operational during power interruptions.
  •  Events and Entertainment: Providing temporary power for concerts, festivals, and other outdoor events

Technical Data

Parameter Specifications Parameter Specification
Model SGP800S Phase 3 Phase
Prime Power 800 kW / 1000 kVA Engine Perkins 4008TAG2 (UK)
Standby Power 880kW / 100 kVA Open Type Dimensions LxWxH (mm) 4700x 2050 x 2300
Frequency 50 Hz Alternator Leroy Somer TAL- A49-E
Voltage 400V / 230V Controller DEEPSEA DSE8610
Warranty 1 year or 1000 hours Standard Equipment ABB breaker, Speed governor, emergency stop button, MCCB, Electric start, 24V charger, two 12V storage batteries, Heavy duty steel base-frame, vibration-damper, silencer, elbow
Optional Accessories Heavy-duty air filter, Coolant heater, Lub oil heater, etc Engine Power 947 kW
Voltage 400V / 230V Controller DEEPSEA DSE8610
Aspiration Turbocharged, Air-to-air charge cooled Displacement 30.561 L
Number of Cylinders 8 Compression Ratio 13.6:1
Governor Type Electric Rated Speed 1500 RPM
Fuel Consumption (Prime Power)  215 L/h  Fuel Consumption (Standby Power)  240 L/h
 Lub Oil Capacity  153.0 L  Open Type Weight (kg)   7611
 Start Mode DC24V Electric start Alternator Efficiency   94.7%

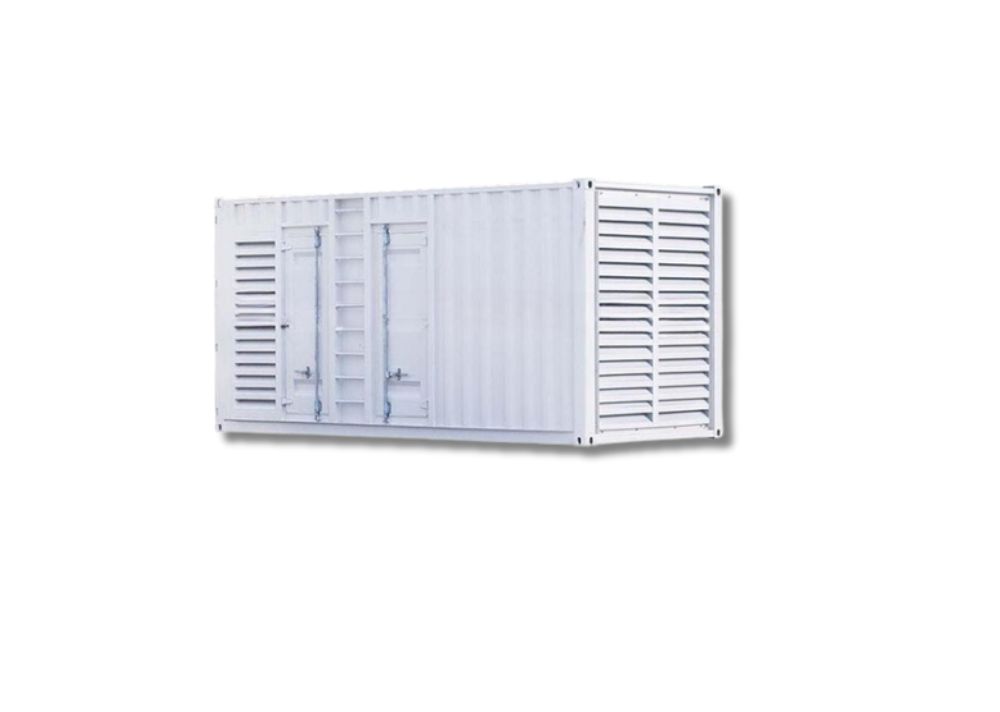

Insulation Class  H Silent Type Weight (kg) 11111
Voltage Regulation  ±0.5% Silent Type Dimensions L×W×H mm 6058×2438×2591



Downloads SGP 800S Datasheet
