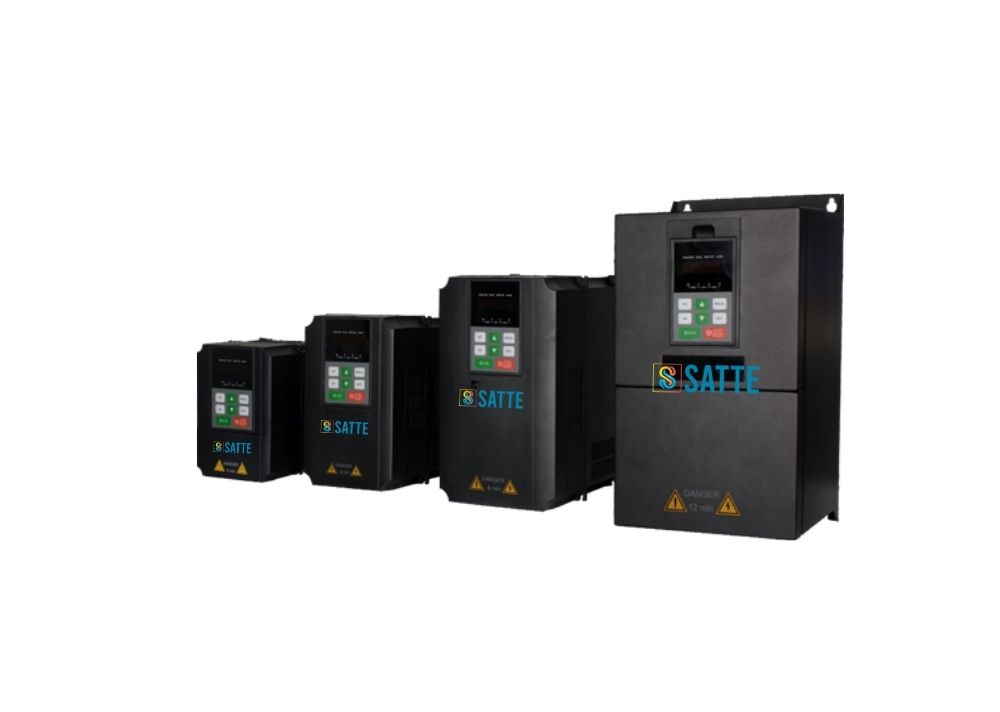

Satte SLVK

Typical Applications

• Agricultural Irrigation: Efficiently powers irrigation systems using submersible or surface pumps.
• Swimming Pools: Operates swimming pool pumps to maintain water circulation and filtration.
• Water Supply Systems: Provides reliable water supply for residential or commercial buildings.
• Rural and Remote Areas: Supplies water where grid electricity is unavailable by using solar energy.
• Greenhouse Operations: Powers pumps for irrigation and water management in greenhouse environments.
• Emergency Water Supply: Functions as a backup for emergency water supply systems, switching between solar and grid/diesel
  power.
• Outdoor Installations: Suitable for outdoor water pumping installations with optional high protection grade control boxes.
• Remote Monitoring: Allows remote system status monitoring and management through a mobile app or web pages.
• Cost-Effective Solutions: Reduces system costs and complexity with optional boost modules for low power models.

Operating Conditions

• Fully automatic operation, the inverter drives the pump to work from sunrise to sunset, without manual operation after installation
• Full protections including overvoltage protection, overcurrent protection and overheat automatic frequency reduction protection to extend product life effectively
• Full motor protections, optional water level switch to prevent overflow and dry running;

Technical Data

Power Range
0.75 - 110kW
customized for higher power

Advanced Function
Support remote monitoring

Optional Function
Backup power supply
Boost Module

• Compatible with submersible pumps, surface pumps, swimming pool pumps and other pumps using
  three-phase/single-phase asynchronous motors
• Advanced MPPT algorithm, fast response, good stability and maximum 99% MPPT efficiency
  Maximum 97% conversion efficiency
• Power levels range from 0.75kW to 110kW and customized services for higher power levels;

• Optional boost module for low power models (≤2.2kW) to
  achieve normal operation under minimum 150V input so as to
  solve the difficulty of solar modules configuration for low
  power models and reduce the overall system cost
• Optional high protection grade control box for 37kW and below
  models to satisfy the requirement of outdoor installation
• Optional power supply automatic switching function, switching
  to solar power or grid/diesel power supply automatically
  according to solar radiation conditions, which satisfies all-
  weather 24hours unattended water supply demand
• Optional DM-BR Data Monitor, remotely monitoring system
  operation status with mobile APP or web pages at anytime and
  anywhere;
