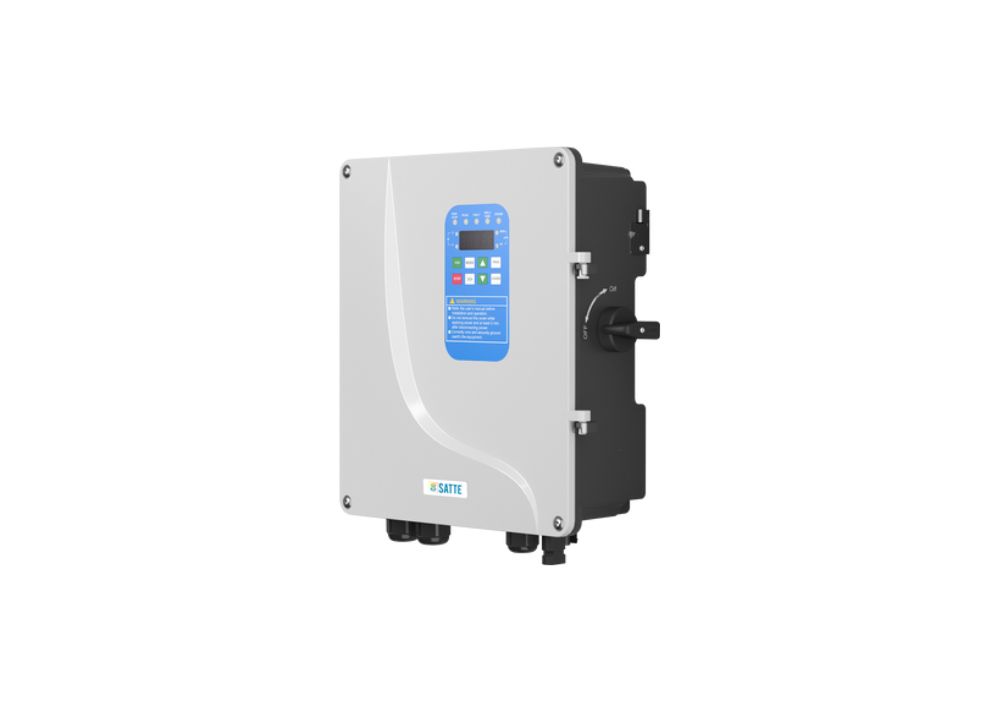

SATTE SLVD4



Typical Applications

  • Agriculture Irrigation: Efficiently powers water pumps for crop
    irrigation in remote areas.
  • Livestock Watering: Supplies consistent water flow for animal
    watering systems on farms.
  • Rural Water Supply: Provides clean water to rural communities
    without reliable grid access.
  • Aquaculture Systems: Powers water pumps to maintain oxygen
    levels in fish farming ponds.
  • Solar Water Pumps: Uses solar energy to run water pumps,
    reducing electricity costs.
  • Greenhouses: Controls irrigation systems to maintain optimal
    moisture levels for plant growth.
  • Remote Villages: Delivers water for household use in off-grid,
    rural locations.
  • Desert Agriculture: Supports farming operations in arid areas by
    powering irrigation systems.
  • Community Wells: Powers pumps to extract water for
    communal wells and storage tanks.
  • Municipal Water Systems: Assists in water distribution for
    small-scale municipal water facilities
Parameter Value
Rated Power 2.2 kW
Max. DC Input Current 13 A
Max. DC Input Voltage 440 V
Adapting Motor Power 2200 W
Adapting Motor Voltage 220 V
Recommended MPP Voltage ≥ 180 V
Max. AC Input Current 13 A
Output Frequency 0 - 200 Hz
MPPT Efficiency 99%
Net Weight 5.5 kg
Gross Weight 6.5 kg
Model SLVD4 /2.2S
Warranty 3 years

Technical Data

Model Power Rated AC
Output
Current (A)
Max AC
Input
Current (A)
Max AC
Input
current (A)

Max DC
Input
voltage

Max AC
Input
voltage
Adapting
Motor
Voltage (V)
Recomme
nded MPP
Voltage
Dimensions (mm) Weight
(Kg)
KW HP L W H
SLVLD4 1.1S 1.1 1.5 15 15 20 200 1PH 85-
265V
110 120-160V 266 296 111 5.5
SLVLD4 2.2S 2.2 3 11 13 13 1PH 150-
265V
220 180-360V 266 296 111 5.5
SLVD4 3.0S 3 4 7 13 13 440 1PH 150-
265V
300 250-360V 266 296 111 5.5
Downloads SLVD4 Datasheet
