SJSP6



 Typical Applications

  • Groundwater Extraction: Ideal for extracting groundwater from
    deep wells efficiently.
  • Rivers and Reservoirs: Suitable for water extraction from rivers,
    reservoirs, and canals.
  • Agricultural Irrigation: Primarily used for irrigation of farmland
    in remote areas.
  • Livestock Watering: Supplies water for human and livestock in
    mountainous regions.
  • Urban Drainage: Used for city drainage systems in urban
    development projects.
  • Industrial Applications: Effective in draining factories and
    industrial sites.
  • Railway Maintenance: Assists in water drainage for railway
    construction and maintenance.
  • Mining Operations: Supports water drainage in mines to
    maintain operations.
  • Construction Sites: Useful in draining water at construction and
    excavation sites.

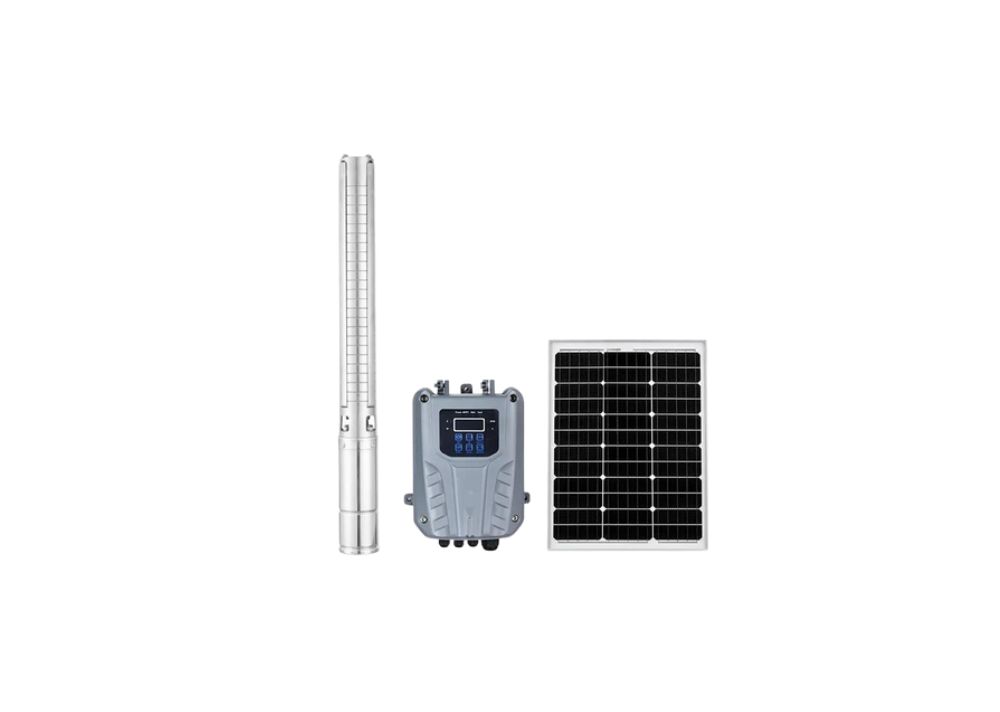

Categories DC Brushless Submersible Solar Pump
Brand Satte
Model 4inch 600W-1500W
Type 4 inch solar pump with stainless steel
impeller
Material stainless steel
Package type wooden case
Application Poultry Farming,Irrigation,Household
water intake
Warranty 2 years

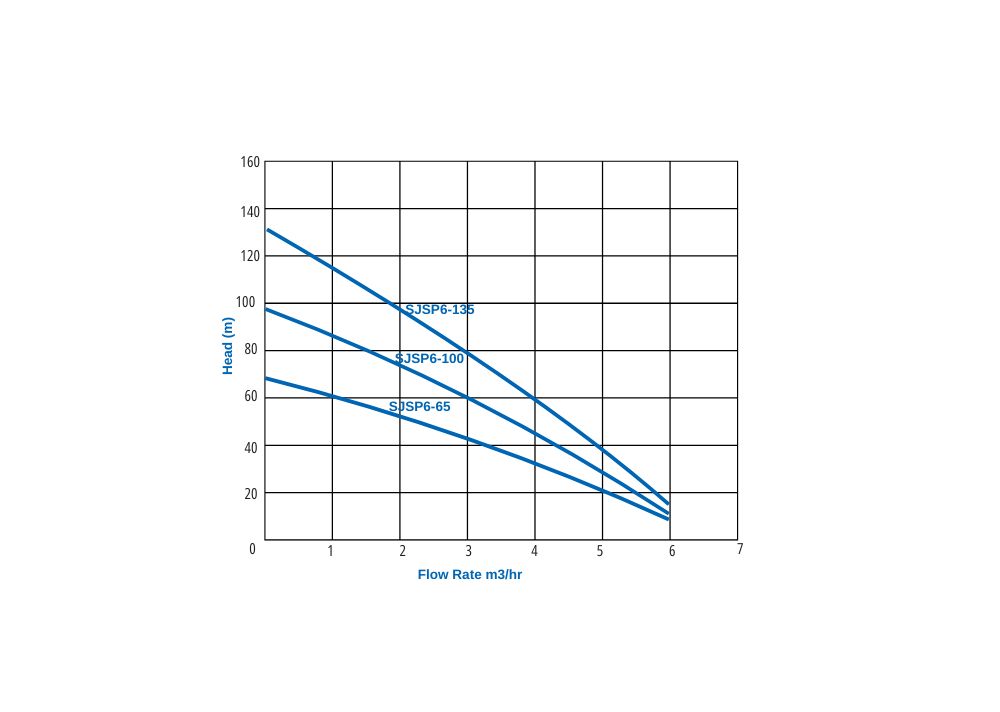

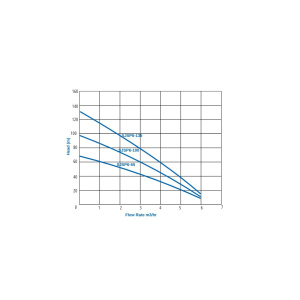

Technical Data



Model Max.flow(m3/h) Max.Head
(m)
Voltage(V) Power(W) Outlet(inch) Solar Panel(For
reference)
Configuration Input Voltage Calculated ( A)
SJSP6-65AUTO
(AC/DC Pump)
6 65 DC110 750 1.25 340W*3 5X450W(HV) X1ARRAY DC80V-430V/AC 80V-240V VOLT=110/430
,CURRENT= 6.8A/1.7A
SJSP6-100AUTO
(AC/DC Pump)
6 100 DC72 1100 1.25 270W*3*2 5X450W(HV) X1ARRAY DC80V-430V/AC 80V-240V ,CURRENT= 7.3A/2.5A
SJSP6-135AUTO
(AC/DC Pump)
6 135 DC110 1100 1.25 340W*4 5X450W(HV) X1ARRAY DC80V-430V/AC 80V-240V VOLT=200/430
,CURRENT= 7.5A/3.5A
SJSP6-200AUTO
(AC/DC Pump)
6 280 DC110 1500 1.25 340W*3*2 5X450W(HV) X1ARRAY DC80V-430V/AC 80V-240V VOLT=280/430
,CURRENT= 7.8A/5.1A
