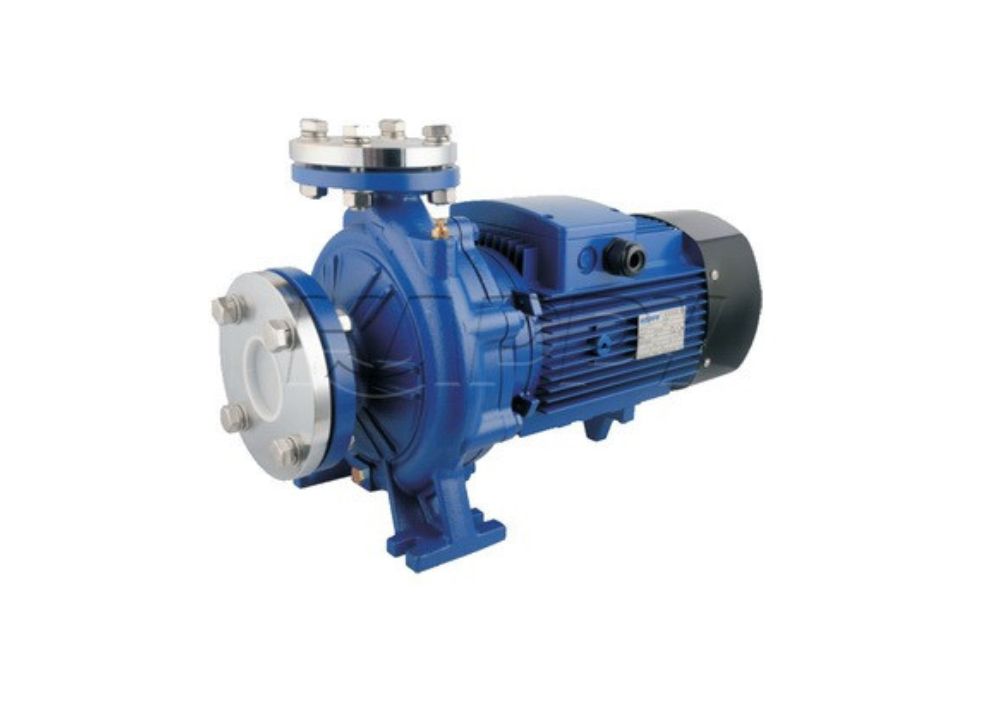

SC 32

SC 32

Application

Water Supply
Pressure Boosting
Irrigation
Water Circulation
Fire Fighting sets
Industrial Application
Agricultural Application

Operating Conditions

Manometric suction liftup to 8m
Liquid temperature between -10°C and +120°C
Ambient temperature between -10 C and +40C
Max.pressure in pump body 16bar (PN16)

Performance Range

Head up to 115m
Power up to 160kW
Diameter up to 125mm
For rate upto 400000 Liters per hour

Technical Data

Model	Power		Dimension mm											Weight (Kg)
	KW	HP	a	f	h	h1	h2	n	n1	n2	w1	w2	s	1~	2~
SC 32-125/7.5	0.75	1	80	435	252	112	140	197	140	190	37	37	8	27	24
SC 32-125/1.1	1.1	1.5	80	435	252	112	140	197	140	190				28	25
SC 32-160/1.5	1.5	2	80	430	292	132	160	212	190	240				38	34
SC 32-160/2.2	2.2	3	80	430	292	132	160	212						43	39
SC 32-200/3	3	4	80	495	340	160	180	260						54	50
SC 32-200/40	4	5.5	80	495	340	160	180	260						56	52
SC 32-250/5.5	5.5	7.5	88	590	405	180	219	333	250	328	49	49	10		66
SC 32-250/7.5	7.5	10	88	590	405	180	219	333	250	328	49	49	10		72
SC 32-250/5.5BF	5.5	7.5 (Big Flow)	154	612	360	160	200	288	212	272	37	37	8		73
SC 32-250/7.5BF	7.5	10(Big Flow)	154	612	360	160	200	288	212	272	37	37	8		73

Downloads SC 32 Datasheet
