Ssatte SFLO SP E

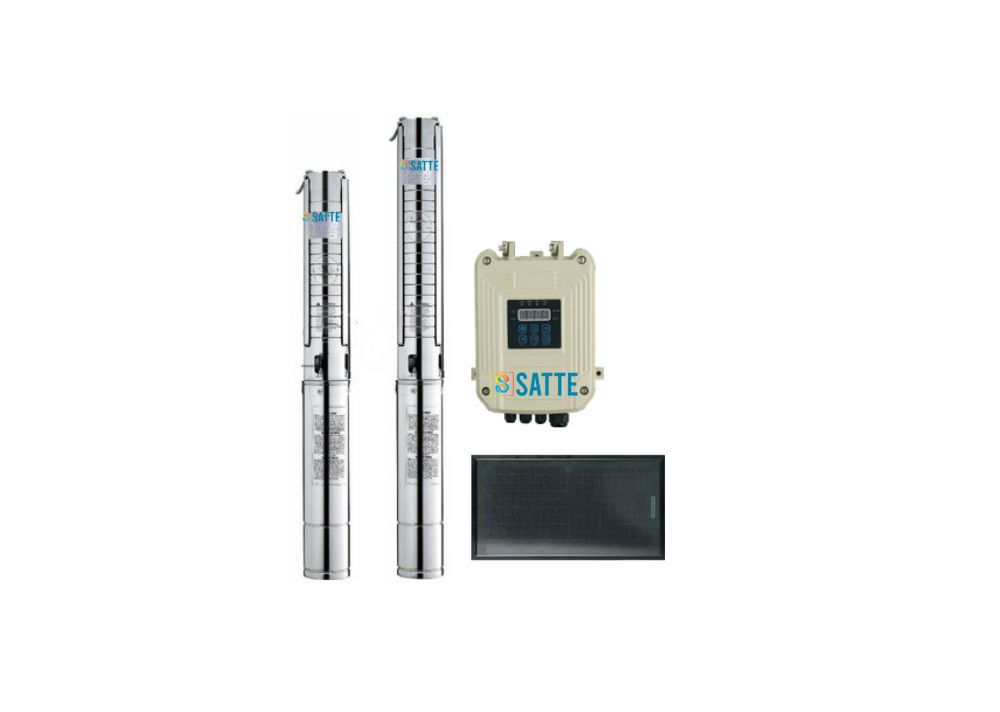

SFLO SP6 E

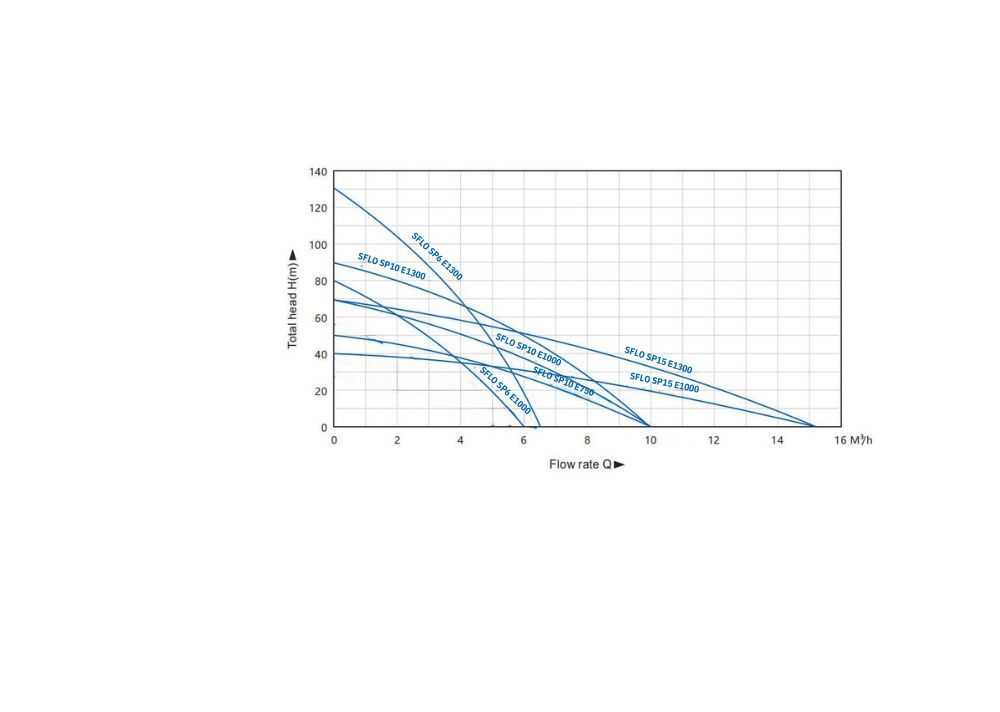

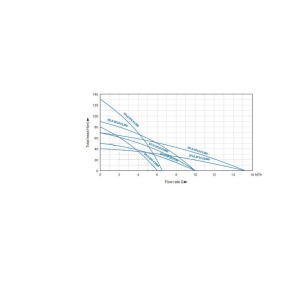

SFLO SP6 E Graph

Typical Applications

Distance water irrigation
High efficiency of increasing oxygen on aquaculture
Pumping water from deep well
Gardening
Fountain

Operating Conditions

Non-corrosive water; the volume ratio al sand content no
more than 3%; particle size less than Imm
Max medium temperature up to +40°C; PH value remains 5-10
Work close to the rated head and must be immersed in water.

Product Feature

Max Head: 130m
Max flow: 15m³/h

Technical Data

Model	lmpeller	Solar array Voltage (v)	Solar array Power (w)	Max.flow (m³/h)	Max.head (m)	Outlet(inch)	Weight (kg)	Dimension (mm)
Model	lmpeller	Solar array Voltage (v)	Solar array Power (w)	Max.flow (m³/h)	Max.head (m)	Outlet(inch)	Weight (kg)	L	H
SFLO SP6 E1000		72	1320	6	80	1.25"	15.5	100	740
SFLO SP6 E1300		108	1680	6.5	130	1.25"	16.5	100	880
SFLO SP10 E750		72	960	10	50	1.5"	13.5	100	540
SFLO SP10 E1000	Centrifugal (Stainless steel)	72	1320	10	70	1.5"	15	100	650
SFLO SP10 E1300		108	1680	10	90	1.5"	15.5	100	680
SFLO SP15 E1000		72	1320	15	40	2"	13.5	100	540
SFLO SP15 E130		108	1680	15	70	2"	14	100	620

Downloads SFLO SP E Datasheet
