Typical Applications

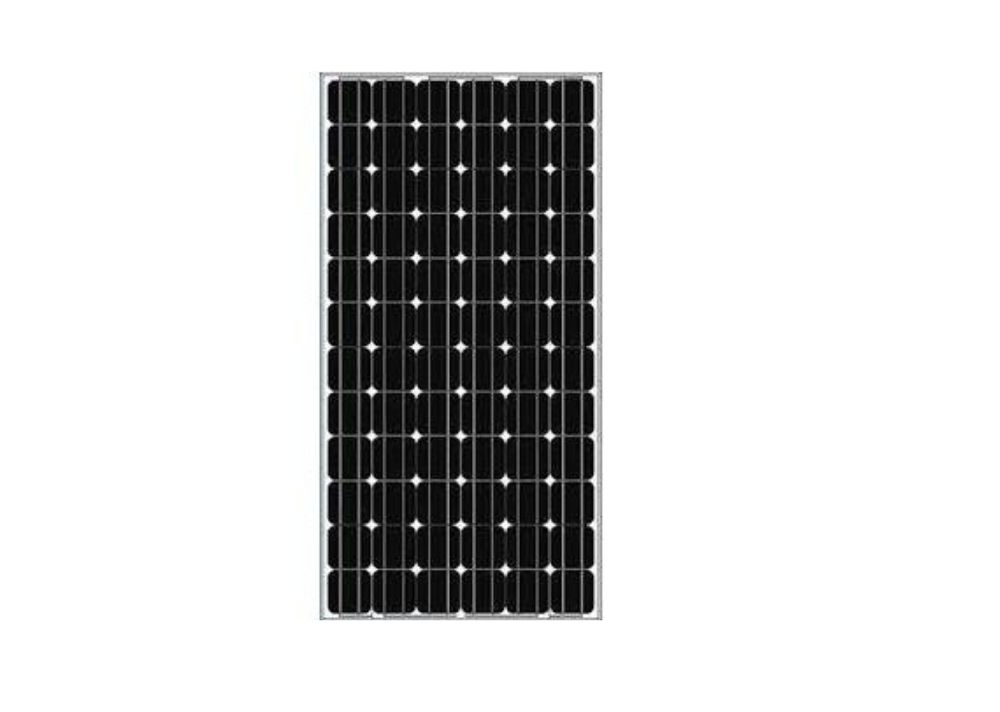

- Satte PV Modules are designed for efficiency and reliability, sourced from top global manufacturers with high standards. Key
features include:
- High-efficiency Mono/Poly crystalline cells with over 15% energy conversion, even at low light levels.
- Tempered glass with anti-reflective coating for enhanced power output and strength.
- Waterproof junction box for easy connections.
- 25-year power output warranty.
- Certified by TUV Rheinland to ISO, CE, and IEC standards.
These modules ensure consistent quality and are ideal for all solar applications with dependable, long-lasting performance.
Operating Conditions
- Operating Cell Temperature: 46±2°C
- Temp Coefficient Pmax: -0.45%/°C
- Temp Coefficient Voc: -0.37%/°C
- Temp Coefficient Isc: 0.06%/°C
Mechanical Specifications
Solar Cells P-Mono-210*105mm Arrangement Type-3*11 Front Glass
3.2mm tempered glass Backsheet Fluoride on both sides Frame
Anodized aluminium alloy Junction Box IP67, 2 diode Cables 4.0mm²
photovoltaic cables Connectors MC4 compatible/IP67
Technical Data
| Model |
Peak Power(Pmax) ±3% (W) |
Power Tolerance (W) |
Max.Power Voltage(Vmp) (V) |
Max.Power Current(lmp) (A) |
Open-circuit Voltage(Voc) ±3% (V) |
Operating Temperature (℃) |
Max. Series Fuse Rating (A) |
Max. System Voltage(DC) (V) |
Short Circuit Current (A) |
|
|
|
Weight (kg) |
| |
|
|
|
|
|
|
|
|
|
L |
H |
W |
|
| 125W LV |
125 |
0~+5
|
20.13 |
68.92 |
24.48 |
-40~+85
|
15 |
1000 |
6.46 |
800 |
770 |
30
|
6.47 |
| 125W HV |
125 |
28.22 |
4.43 |
33.29 |
15 |
1000 |
4.68 |
800 |
765 |
7.2 |
| 280W |
280 |
31.86 |
8.79 |
37.86 |
15 |
1000 |
|
1535(±2) |
*880(±2) |
13.5 |
| 340W |
340 |
38.55 |
8.82 |
45.64 |
15 |
1000 |
8.8 |
1856(±2) |
*880(±2) |
17.6 |
| 450W LV |
450 |
34.62 |
13.01 |
41.46 |
25 |
1000 |
13.47 |
1903(±2) |
1134(±2) |
23.6 |
| 450W HV |
450 |
68.92 |
6.53 |
82.85 |
12 |
1000 |
7.08 |
1903(±2) |
1134(±2) |
23.6 |
| 600W |
600 |
44.31 |
13.54 |
52.52 |
30 |
1500(IEC) |
14.12 |
2278(±2) |
1134(±2) |
30 |
30.6(±3) |
