S Hitech



Applications

  • Residential Water Supply - These pumps can be used to provide pressurized water supply in residential homes. Water supply,irrigation systems, hot water recirculation.
  • Domestic Water Supply - In addition to residential use, they can also be applied in domestic settings, such as apartments and small housing complexes, to maintain steady water pressure.
  • Small Commercial Water Supply - The pumps are suitable for small commercial establishments, like cafes, restaurants, or shops, where a reliable water supply is essential for daily operations.
  • Leakage Warning - The built-in leakage warning feature adds an10 e1xtra layer of protection, making these pumps useful in applications where leaks need to be detected and addressed promptly.
  • These pumps come with high/low-temperature protection, making them suitable for applications where temperature control is necessary, such as for hot water circulation systems.
  • Energy-Efficient Systems - The innovative inverter-controlled variable speed technology in these pumps helps minimize energy consumption, making them suitable for environments where energy efficiency is a priority.

Operating Conditions

  • Max. Liquid Temperature: +60°C
  • Ambient Temperature up to : +40°C
  • Total suction lift up to: 7m

Technical Data

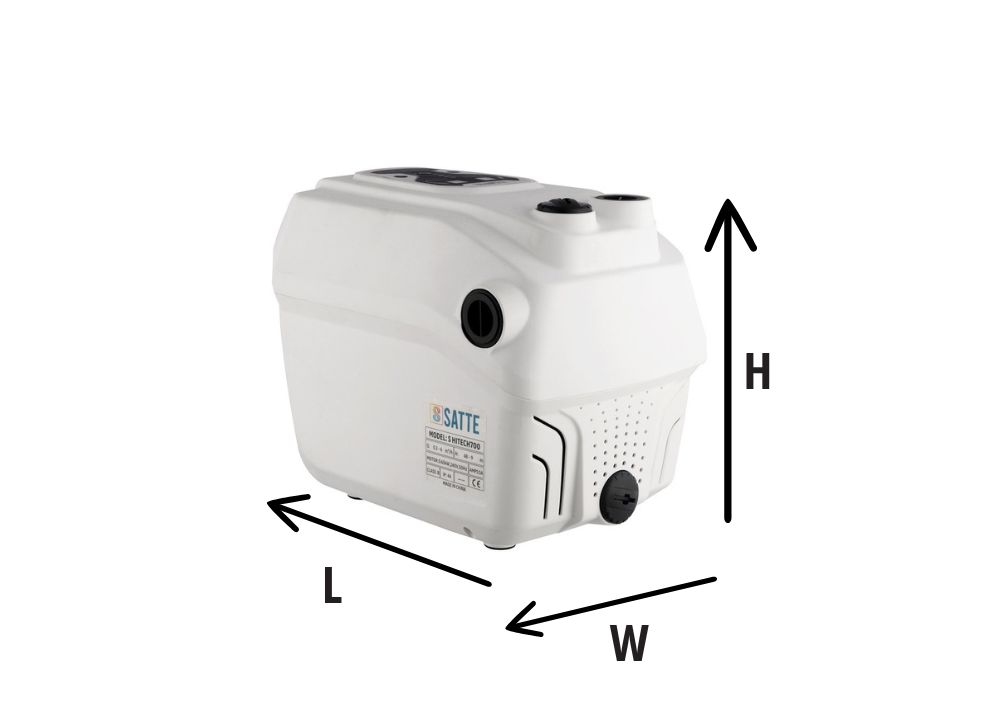

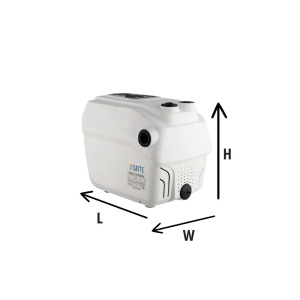

No. Model Power (kW) INLET/OUTLET Inch Current Dimensions (mm) Weight (kg)
L W H
A S HITECH300 0.34 1" X 1"   395 276 340 7.8
B S HITECH400 0.42 1" X 1" 3.5 340 240 39 390
C S HITECH500 0.5 1" X 1" 4 405 285 0 340
E S HITECH700 0.65 1" X 1" 5 405 285 34 340
Downloads S Hitech Datasheet
