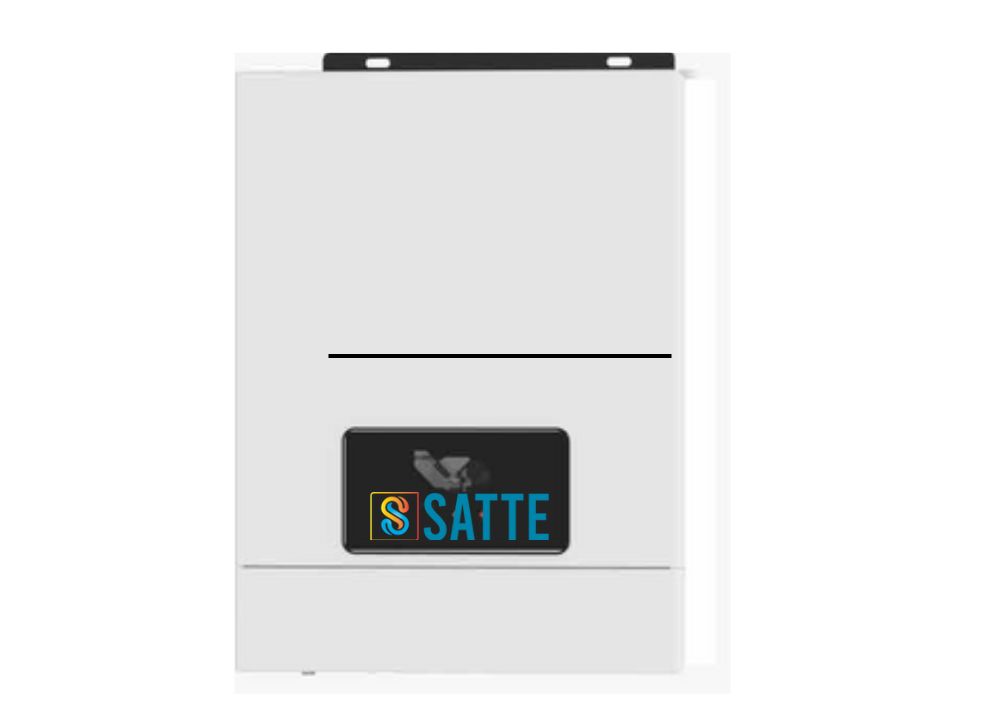

SATTE SML HYBRID INVERTER

Typical Applications

Residential Solar Energy Systems - Ideal for powering home appliances with low transfer time and high efficiency (up to 98%).
Commercial Solar Installations - Suitable for offices needing uninterrupted power with advanced MPPT solar charging
technology.
Remote Monitoring and Control - Useful in areas requiring Wi-Fi/GPRS connectivity for Android/iOS-based remote
management.
Harsh Environmental Conditions - Designed with an anti-dust kit for use in challenging industrial or agricultural environments.
Lithium Battery-Compatible Projects - Compatible with lithium battery setups, ensuring optimal smart charging and extended
battery life.

Technical Data

MODELS	SML 2000 - 12	NML 3200 - 24
Rated Power	2000VA/1600W	3200VA/3000W
AC Input Voltage	230VAC	230VAC
Selectable Voltage Range (Home Appliances)	90-280VAC	90-280VAC
Frequency Range	50Hz/60Hz (Auto sense)	50Hz/60Hz
AC Output Voltage Regulation	230VAC ±5%
Surge Power	4000VA	6400VA
Efficiency (Peak) PV to INV	98%
Efficiency (Peak) Battery to INV	94%
Transfer Time (PCs)	10 ms
Transfer Time (Home Appliances)	20 ms
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Maximum PV Array Power	3000W	3000W
MPPT Range Operating Voltage	30~400VDC
Maximum PV Array Open Circuit Voltage	400VDC	400VDC
Maximum Input Current	1/13A
Maximum Solar Charging Current	80A
Maximum AC Charging Current	60A
Maximum Solar + AC Charging Current	80A
Physical Dimension (HWD mm)	35727395	35727395
Gross Weight (kgs)	5.6	5.8
Communication Interface	RS232/GPRS/WIFI
Environment Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C	-10°C to 50°C
