SB Innovations LTD

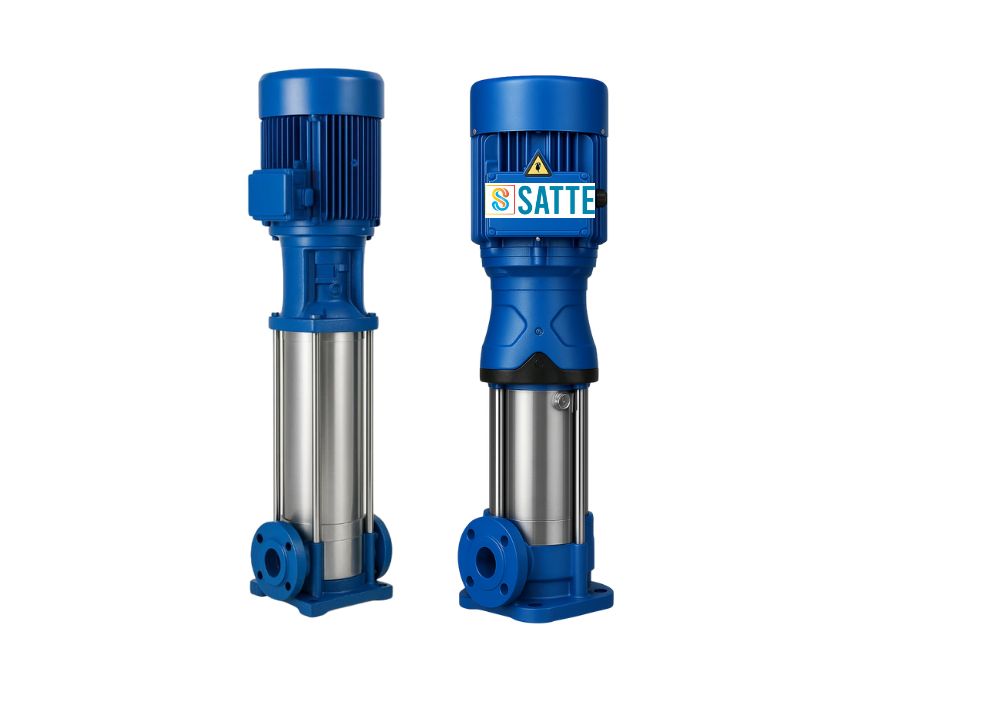

SAR 90



Typical Applications

  • Municipal water distribution-The pump can be used tosupply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.

Operating Conditions

  • PumpedLiquids: Thin,clean,non-explosive liquids withoutsolid particles or fibres. Liquid
  • Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C
  • Maximum Operating Pressure: 23 bar

Technical Data

Model Voltage (V) Motor Full Load Current IStart/ I Dimensions(mm) Weight (kg)
Kw HP B1 B1+B2 D1 D2
SAR 90-10 3x415 7.5 15 14.7 8.7 571 961 260 208 110
SAR 90-20 3x415 15 22 25.5 6.4 865 1273 330 255 192
SAR 90-30 3x415 22 30 37.1 6.4 865 1440 360 285 252
SAR 90-40 3x415 30 45 50.3 6.4 957 1607 400 310 312
SAR 90-50 3x415 37 45 61.7 6.6 1049 1699 400 310 336
SAR 90-60 3x415 45 55 74.8 6.2 1141 1826 460 240 407
Downloads SAR 90 Datasheet
