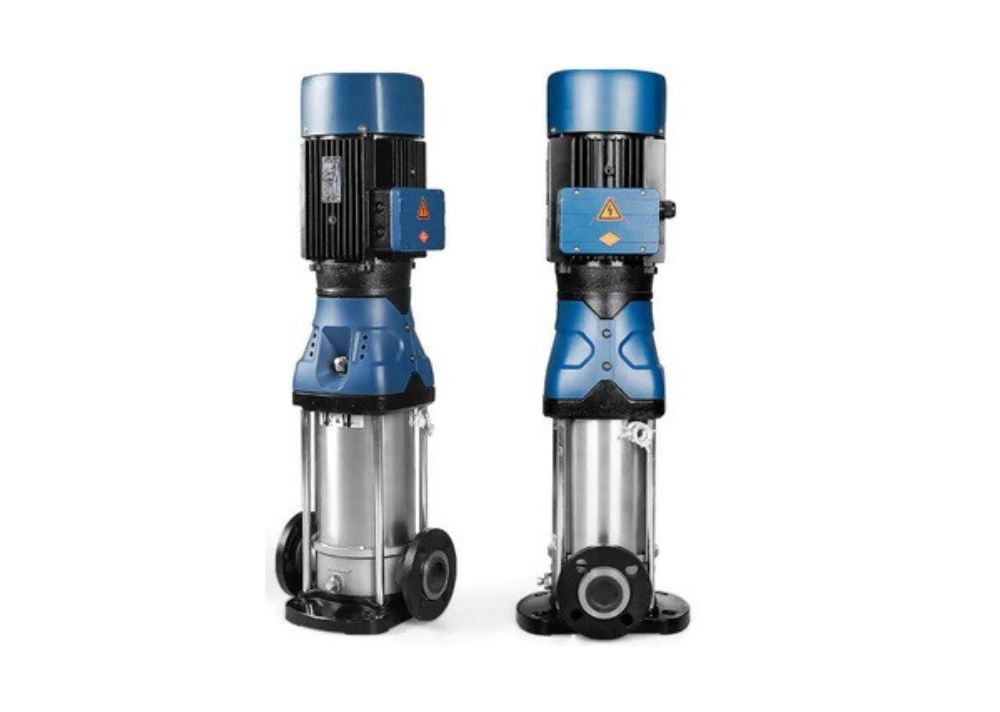

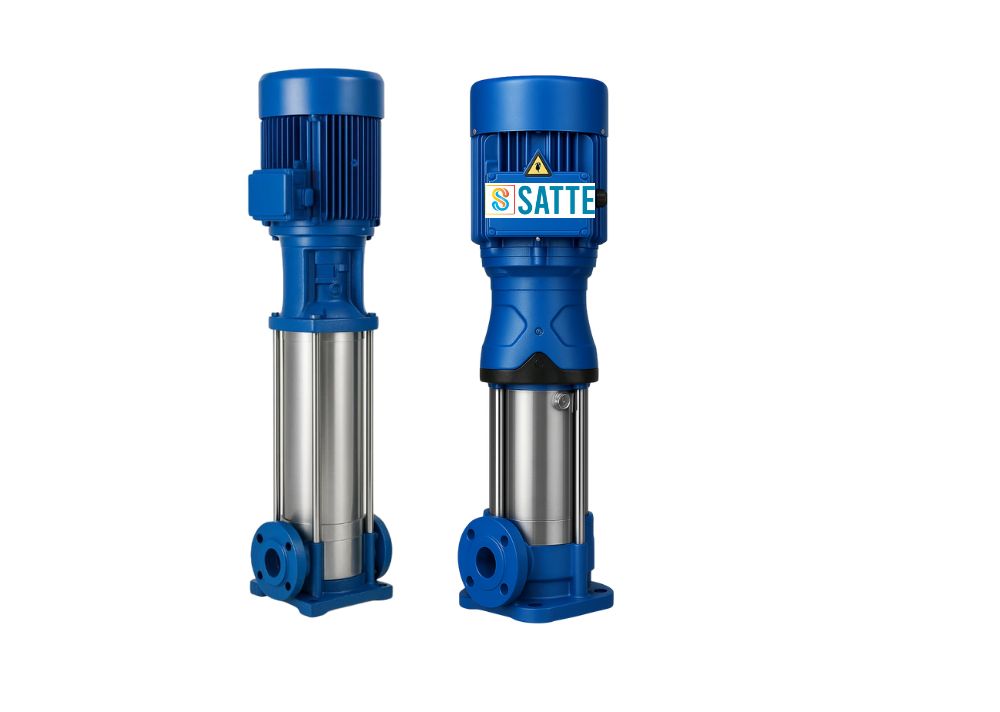

SAR 3

Typical Applications

• Municipal water distribution - The pump can be  used to supply water in urban and rural areas through municipal water supply systems.
•  High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
•  Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
•  Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
•  Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.

Operating Conditions

• Pumped Liquids: Thin, clean, non-explosive liquids without solid particles or fibres.
• Liquid Temperature Range: -15°C to +120°C
• Maximum Ambient Temperature: +50°C
• Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
• Maximum Operating Pressure: 23 bar
• Maximum Inlet Pressure: SAR3-15 to 29 - 10bar, SAR3-36 - 15bar

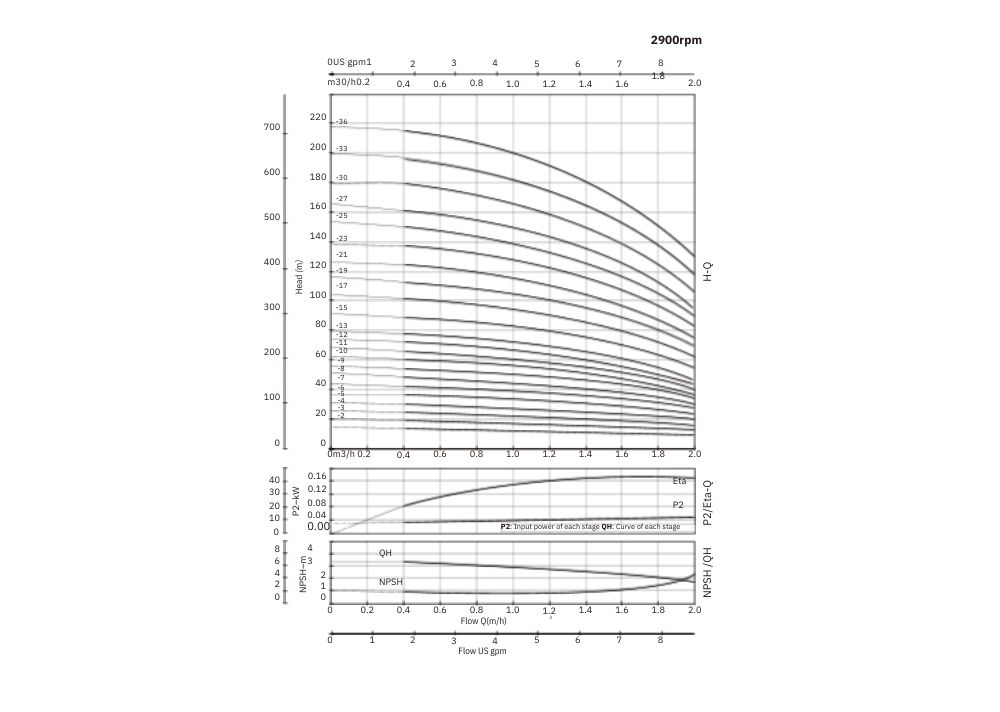

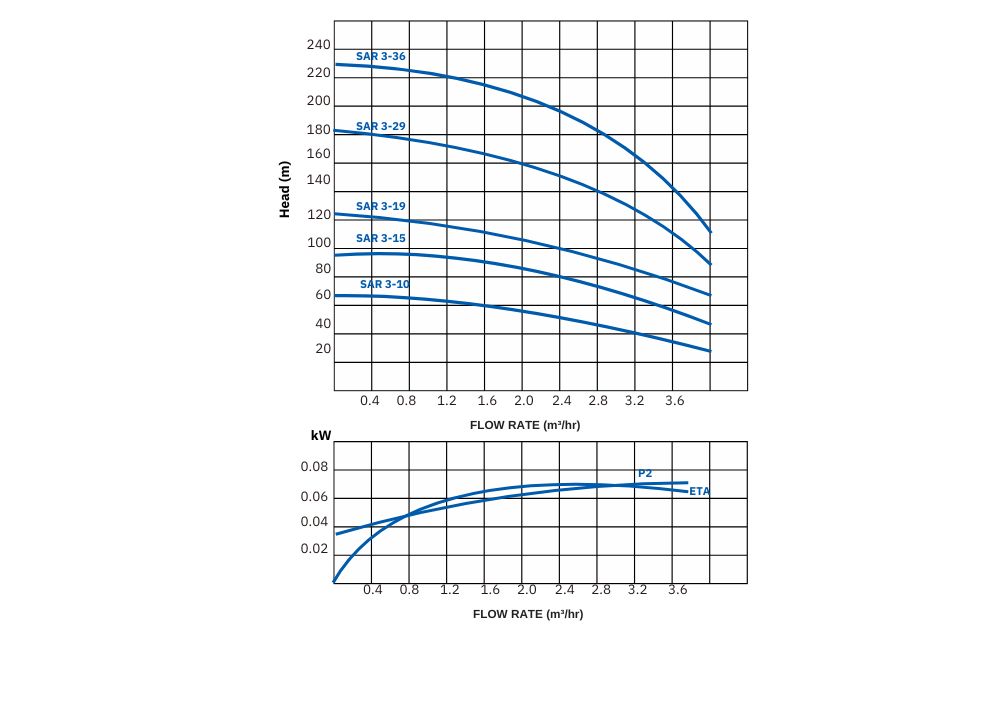

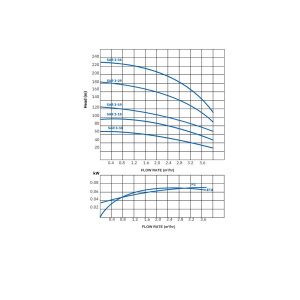

Technical Data
