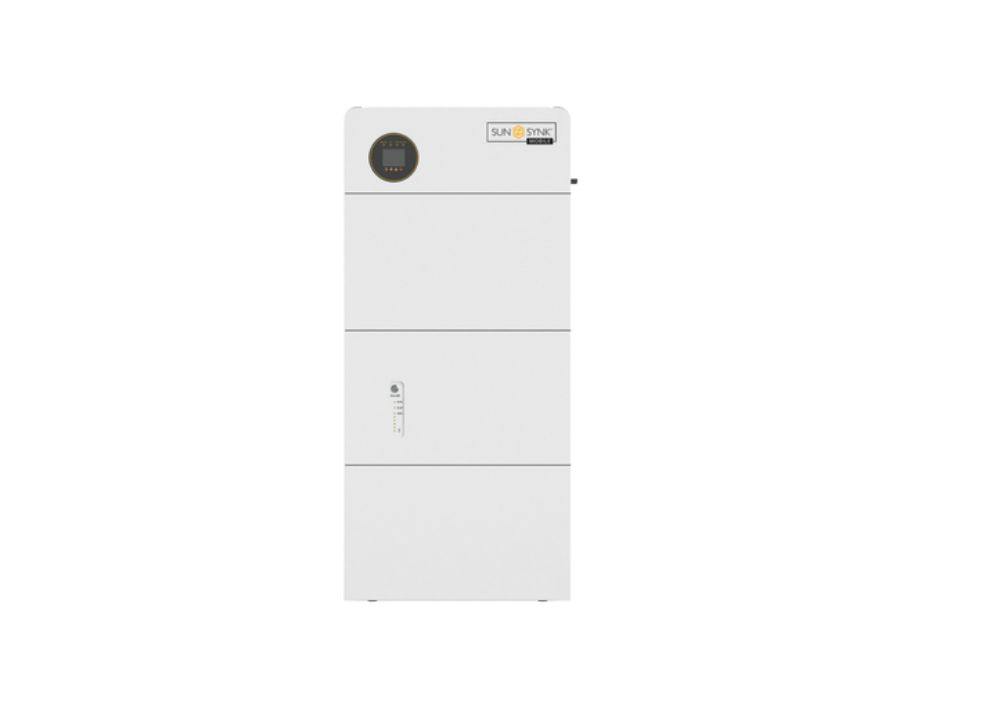

The Sunsynk Powerlynk 6/8kW XLS is a versatile energy storage solution designed for various applications. Its applications include:
- ON Grid: Connects to the grid to supply power to home loads and charge the battery.
- ON Grid + Backup: Provides grid-connected power with the ability to switch to backup power during outages, ensuring essential
loads remain powered.
- OFF Grid: Operates independently of the grid, ideal for remote locations or standalone systems.
Technical Data
| Model |
General Specification |
SM6.0kWPLXLS |
| Max. DC Input Power |
PV String Input |
8000 W (4000 W x 2) |
| DC Input Voltage |
PV String Input |
500 V |
| MPPT Voltage Range |
PV String Input |
120 ~ 450 V |
| Start-Up Voltage |
PV String Input |
150 V |
| Max. Input Current |
PV String Input |
30 A (15 A x 2, 2 MPPT Channels) |
| Max. Output Power |
AC Output (Back-Up) |
6000 W |
| Peak Output Apparent Power |
AC Output (Back-Up) |
12000 VA |
| Max. Output Current |
AC Output (Back-Up) |
26 A |
| Nominal Output Voltage |
AC Output (Back-Up) |
220/230/240 Vac Single-Phase (Configurable) |
| Nominal Output Frequency |
AC Output (Back-Up) |
50/60 Hz (+/-0.2%, Configurable) |
| Max. Bypass Current |
AC Output (Back-Up) |
40 A |
| Shift Time (Bypass and Inverter) |
AC Output (Back-Up) |
10 ms |
| Max. Input Power |
AC Input (On-Grid) |
6000 W |
| Max. Apparent Input Power |
AC Input (On-Grid) |
6000 VA |
| Max. Efficiency |
Efficiency |
97.60% |
| Max. Battery to Load Efficiency |
Efficiency |
94.00% |
| MPPT Efficiency |
Efficiency |
99.90% |
| Protection |
Protection |
Battery Over-Charge, Low-Voltage, Over-Temperature, Output Overload,
Short Circuit
|
| Max. Charge/Discharge Current |
Performance |
100 A |
| Communication |
Performance |
RS232/RS485/CAN |
| Display |
Performance |
SOC Status Indicator, LED Indicator |
| Dimension (WxDxH) |
General Specification |
516 x 179 x 1128 mm |
| Weight |
General Specification |
32 kg |
| Operating Temperature |
General Specification |
Charge: 0 to 50°C, Discharge: -15 to 50°C |
| Environmental Humidity |
General Specification |
≤95% RH (Non Condensation) |
| Ingress Protection Rating |
General Specification |
IP41 |
| Scalability |
General Specification |
Max. 2 Units in Parallel |
