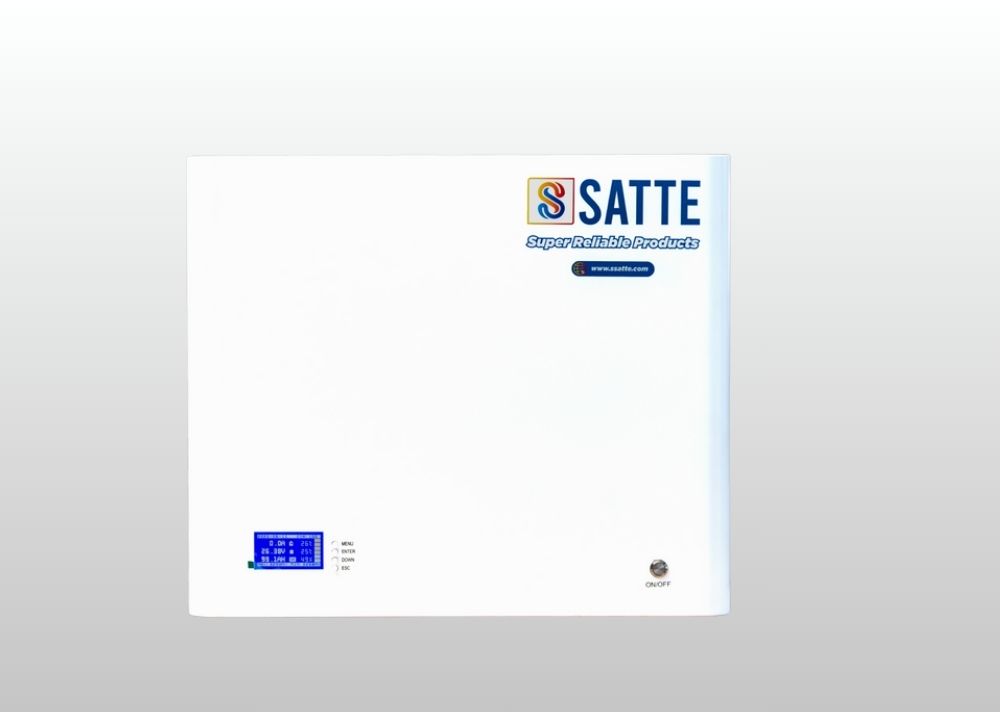

Satte 5kWh Battery

Typical Applications

Residential Energy Storage: Stores excess solar energy for home use, reducing electricity bills effectively.
Backup Power Supply: Provides reliable power during outages, ensuring uninterrupted essential device operation.
Off-Grid Living: Supports independent energy systems, powering homes in remote locations sustainably.
Load Shifting: Shifts energy usage to off-peak hours, optimizing cost and grid efficiency.
Electric Vehicle Charging: Supplies stored energy for EV charging, enhancing home energy flexibility.
Smart Home Integration: Monitors and manages energy via apps, improving usage and efficiency.
Technical Data

Parameter	value
	200AH 24V	100AH 48V
Nominal Voltage	25.6 V	51.2V
Rated Capacity	200 Ah	100AH 48V
Nominal Capacity	5 kWh
Operating Voltage Range	21.6-28.8 V	43.2-57.6V
Cell Type	LFP (LiFePO4)
Battery Configuration	1P 16S
Dimensions	565480180 mm
Weight	51 kg	51.2kg
Dimensions (in)	22.318.97.1 in
Weight (lbs)	112.4 lbs	113.6lbs
Charge Temperature	45°C
Discharge Temperature	60°C
Depth of Discharge	0.98
Cooling	Natural
Max. Operating Altitude	Not specified
Nominal Charging Current	100 A	40A
Nominal Discharging Current	100 A	60A
Humidity	≤95%
IP Rating of Enclosure	IP54
Transportation Certification	UN38.3/MSDS/DGM
Display	LED
Communication	RS485/RS232/CAN
