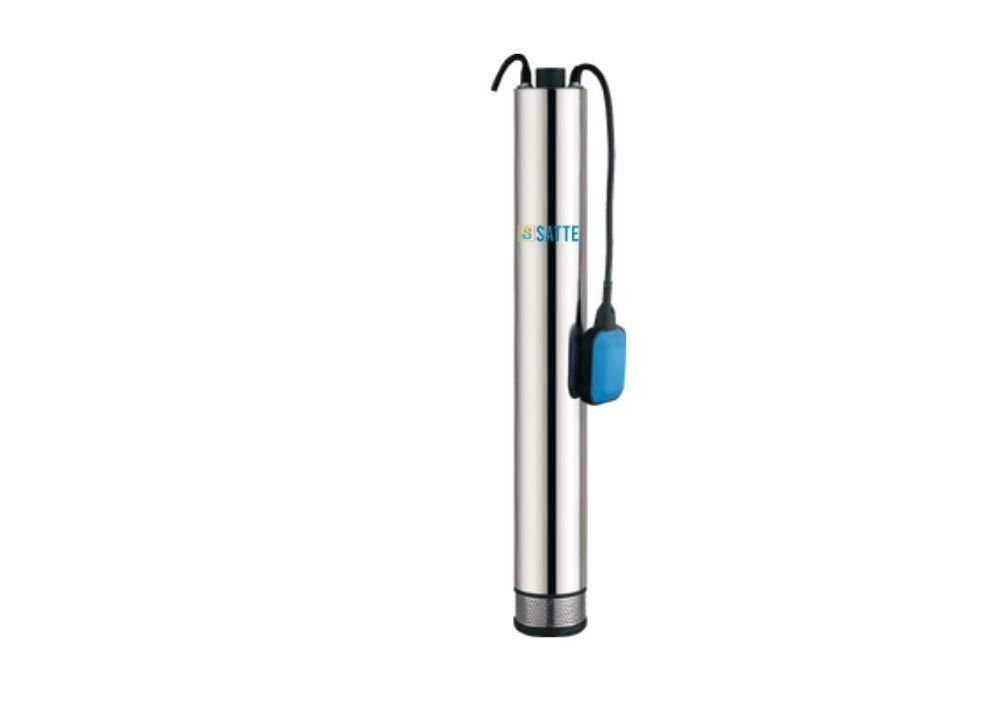

SSDP2

SSDP2

Typical Applications

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating Conditions
Maximum fluid temperature + 35 °C
Maximum sand content 0.15%
Maximum well diameter: “4”
Motor and Pump
Rewindable motor
Single Phase: 220V/50Hz
Three Phase: 380 - 415V/50Hz
Equip with start control box or digital auto
control box
Pumps are designed by casing stressed
Curve tolerance according to ISO9906

Components	Material
Delivery casing	AISI 304 SS
Suction lantern	AISI 304 SS
Pump external casing	AISI 304 SS
Diffuser	Plastic PC
Impeller	Plastic POM
Motor external casing	AISI 304 SS
Top Chock	Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical shaft	Graphite-Ceramic
Shaft	AISI 304 SS-ASTM5140
Seal lubricant oi	Oil for food machinery and pharmaceutical use

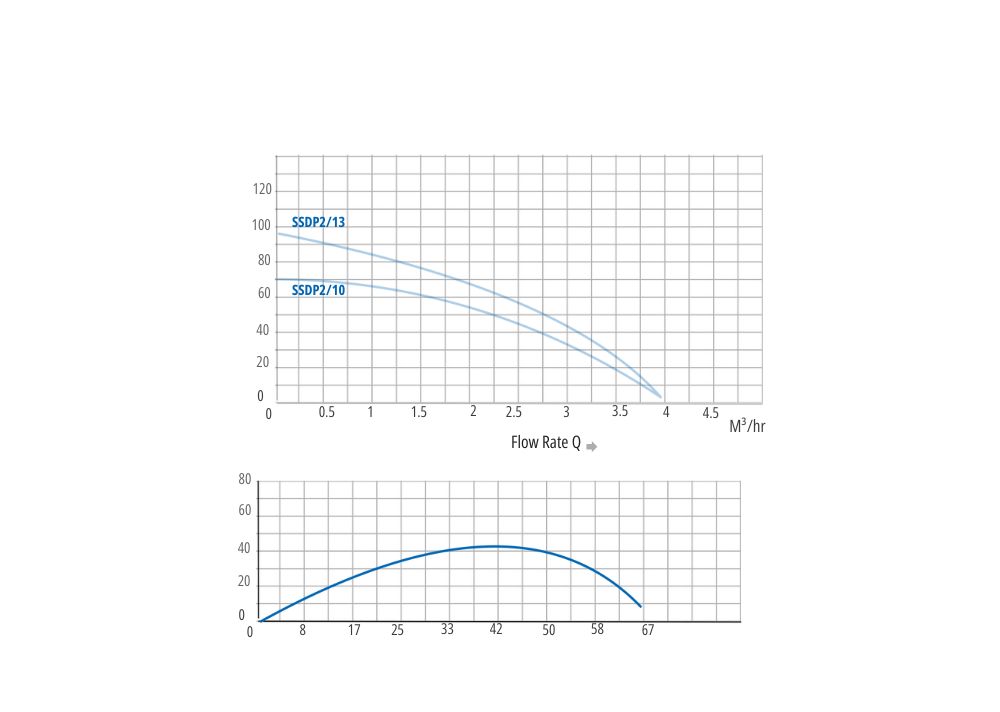

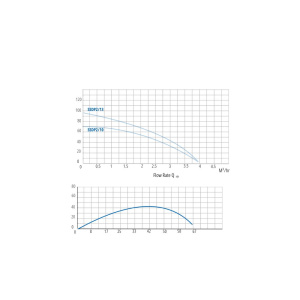

Technical Data

MODEL	POWER	Capacity & Head n=2850 R.P.M
220V- 240V	kW	HP	Q(M ³/h)	0	0.5	1	1.5	2	2.5	3	3.5	4
Q(L/Min)	0	8	17	2.5	33	42	50	58	67
SSDP2/10	0.75	1	H(M)	72	69	66	62	55	46	34	16	6
SSDP2/13	1.1	1.5	94	94	86	80	72	60	44	21	8

Downloads SSDP2 Datasheet
