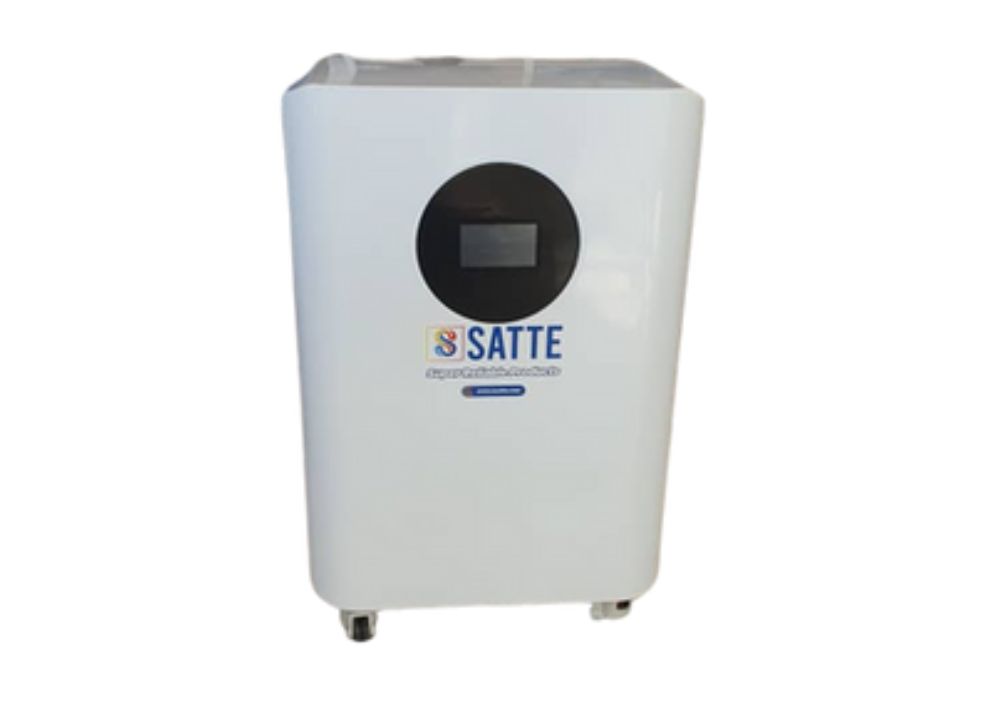

Satte Lithium iron battery
The add to cart button will appear once you select the values above
Features
Soft Start function: Reduces the current impact when the inverter starts from the battery
Dual Active Protection: Features double protection at the BMS Level for enhanced safety.
Communication Support: Supports host controllers to upgrade the
battery module via RS485/RS232 communication
Lithium Iron Phosphate Cathode: Known for high safety performance and a long cycle life.
Comprehensive protection: The BMS provides over-discharge, over-charge, over-current, and temperature protection.
Automatic Management: Automatically manages charging
and discharging status while balancing the voltage of each cell.
Flexible Configuration: Multiple modules can be connected in parallel to increase power capacity.
Low self-discharge: Can be stored up to 6months without charging and does not suffer from memory effect, offering excellent shallow charge/discharge performance
90% Depth of Charge: Enables deep usage for inverters operating in full compliance with the protocol.
Eco-friendly: Non-toxic, non-polluting, and environmentally safe
Self-cooling: Built-in Self-cooling mechanism to minimize system noise.
Specification
51.2V200A
25.6V280Ah
51.2V280Ah
25.6V314Ah
51.2V314Ah
Nominal Voltage
51.2V
25.6V
51.2V
25.6V
51.2V
Nominal Capacity
205Ah
280Ah
280Ah
314Ah
314Ah
Energy (Wh)
10496Wh
7168Wh
14336Wh
8038Wh
16077Wh
Discharge Cut-off Voltage
40V
20V
40V
20V
40V
Charge cut-off voltage
58.4V
29.2V
58.4V
29.2V
58.4V
Nominal charge current
50A
75A
75A
75A
75A
Max Charge Current/Nominal Discharge
100A
150A
150A
150A
150A
Max Discharge Current
150A
200A
200A
200A
200A
Peak (10s) discharge current
200A
300A
300A
300A
300A
Loaded Power
5-8kW
3-5kW
5-8kW
3-5kW
5-8kW
Cell Number
16
8
16
8
16
Cycle Life
≥6000@25° C 70%SOC
Storage Temperature
-20~50° C
Charge Temperature
0~55° C
Discharge temperature
-20~60° C
Downloads
Lithium iron battery Datasheet
