DB 8

Application

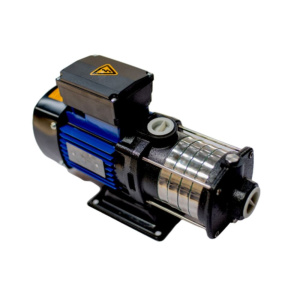

The DAYLIFF DB range of horizontal multistage centrifugal pumps, with their compact design and reliable performance, can be applied in various water transfer applications. Here are some specific applications where the DB pump range can be used:

1. Water Supply Systems: The DB pumps are well-suited for water supply systems in residential, commercial, and industrial buildings. They can efficiently transfer water from a source, such as a water storage tank or a well, to the desired locations within the building, ensuring a reliable water supply for general usage, sanitation, and other water-dependent processes.

2. Building Pressure Boosting: These pumps can be utilized in pressure boosting systems to increase water pressure within a building. They can enhance water flow and pressure to meet the requirements of specific applications, such as tall buildings or areas with inadequate water pressure, ensuring consistent water supply and optimal performance of equipment and fixtures.

3. Water Distribution Networks: The DB pumps can be employed in water distribution networks to transfer water from one location to another. They can be used in municipal water supply systems or large-scale water distribution networks to ensure the efficient and reliable movement of water to different areas, improving overall water distribution and supply.

4. Industrial Water Transfer: These pumps can be applied in various industrial water transfer applications. They can facilitate the movement of water within manufacturing plants, factories, and industrial processes, enabling efficient cooling, equipment operation, and other water-dependent operations.

5. Irrigation Systems: The DB pumps are suitable for small to medium-scale irrigation systems. They can transfer water from a water source, such as a reservoir or a well, to irrigation systems used in agriculture, landscaping, or gardening. This ensures proper hydration for plants, promoting healthy growth and maximizing agricultural yields or maintaining aesthetically pleasing landscapes.

It's important to consider the specific requirements and operating conditions of each application when selecting and installing the DB pumps, as well as conducting regular maintenance to ensure their optimal performance and longevity.


MOTOR
The pump is coupled to a totally enclosed, fan cooled DAYLIFF squirrel-cage motor. Single phase motors include a built in thermal overload protection and should be connected to mains power through a 10A fuse or MCB. Three phase motors should be installed with a remote starter.

Enclosure Class:  IP54
Insulation Class:  F
Speed: 2900rpm

OPERATING CONDITIONS
Pumped liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: 0°C to +90°C.
Max. Ambient Temperature: +50°C
Max. Suction Lift: According to the NPSH curve plus a safety margin of 1.0m.
Max. Inlet Pressure: 10bars
Max. Operating Pressure: 10 Bar up to 55°C, 6 Bar up to 90°C

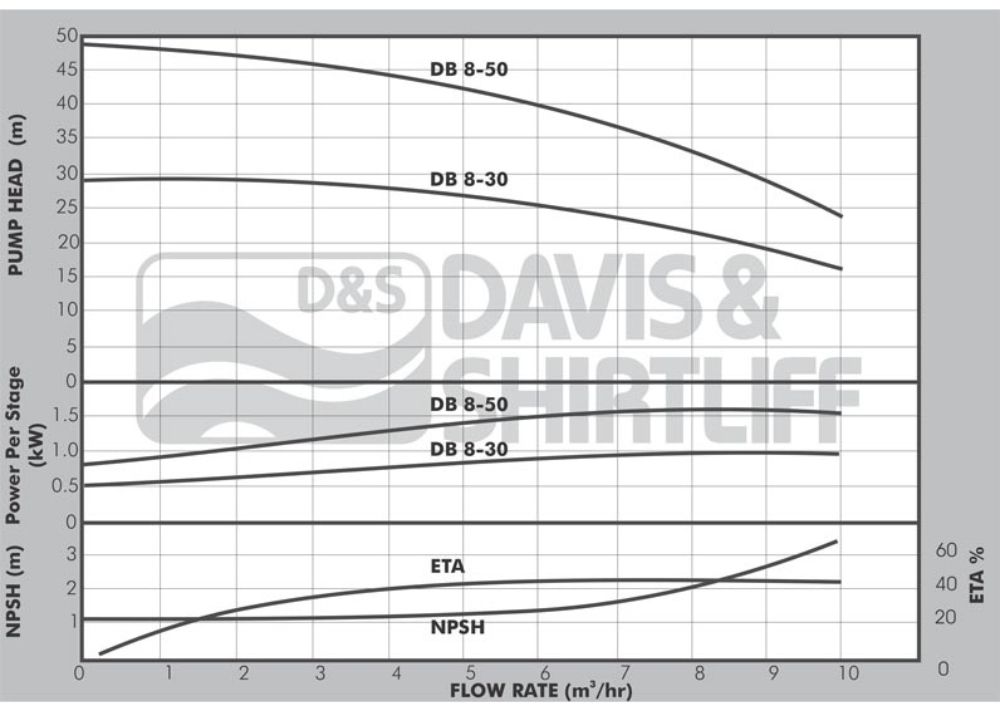

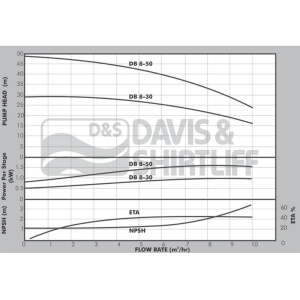

PUMP DATA
